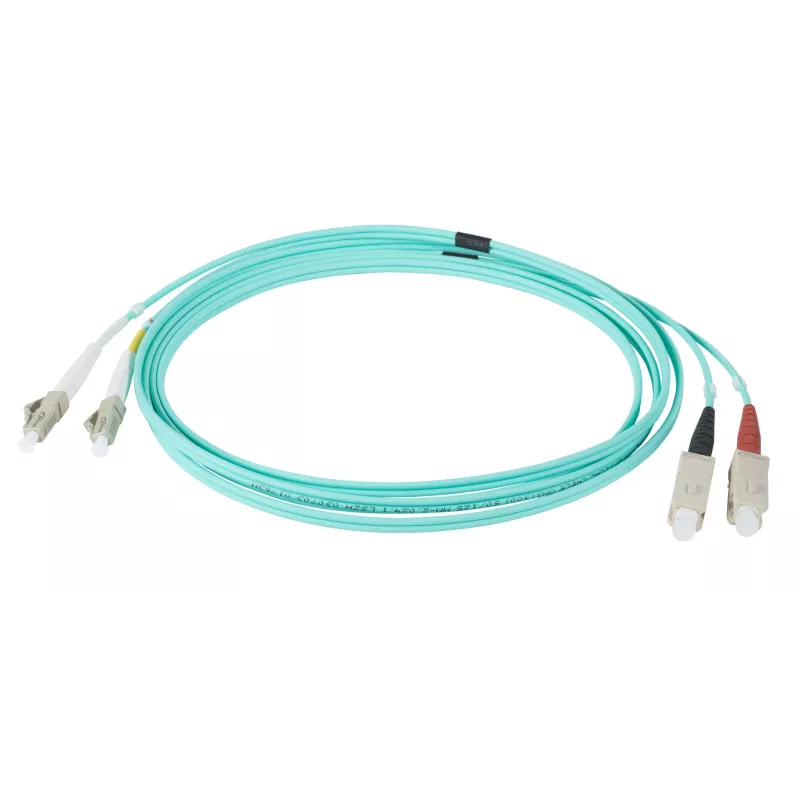

EFB Elektronik IPL-DR-LCUSCU-3-1000 Καλώδιο Patch Οπτικών Ινών, 10 m, OM3, LC σε SC, Aqua

The EFB Elektronik IPL-DR-LCUSCU-3-1000 is a high-performance fiber optic patch cable designed for reliable 10 Gigabit Ethernet connections. With a length of 10 meters and OM3 multimode fiber, it ensures excellent bandwidth and low attenuation for demanding network environments. The cable features LC duplex to SC duplex connectors, a robust LSZH jacket, and complies with I-V(ZN)H standards for indoor/outdoor use.

Advantages

This patch cable offers superior data transmission with minimal signal loss, thanks to its 50/125 µm core/cladding and typical insertion loss of less than 0.3 dB. The LSZH jacket provides safety in confined spaces by emitting low smoke and no halogen in case of fire. Its duplex construction allows for bidirectional communication, making it ideal for high-speed networks.

Suitable for

• Data centers and server rooms requiring high-speed fiber connections
• Telecommunications and enterprise networks
• 10 Gigabit Ethernet (10GbE) applications
• Indoor and outdoor installations where halogen-free cabling is required

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode OM3
• Connectors: LC Duplex to SC Duplex
• Length: 10 m
• Core/Cladding: 50/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Color: Aqua
• Max Data Rate: 10 Gbps
• Insertion Loss: < 0.3 dB
• Return Loss: > 20 dB
• Attenuation @ 850nm: 2.5 dB/km
• Attenuation @ 1300nm: 0.8 dB/km
• Bandwidth @ 850nm: 1500 MHz·km
• Bandwidth @ 1300nm: 500 MHz·km
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC and SC ports. Store in a cool, dry place when not in use.
