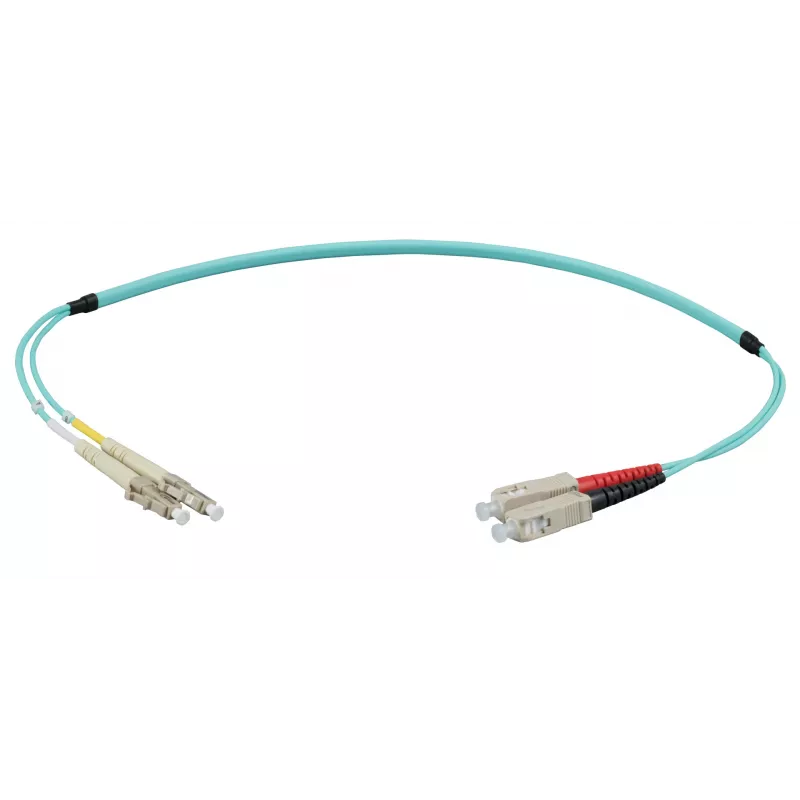

EFB Elektronik IPL-DF-LCUSCU-3-0300 Καλώδιο Patch Οπτικών Ινών 3 m OM3 LC σε SC Duplex

The EFB Elektronik IPL-DF-LCUSCU-3-0300 is a high-performance 3-meter duplex fiber optic patch cable designed for reliable data transmission in enterprise networks. Featuring OM3 multimode fiber with LC/UPC to SC/UPC connectors, this cable supports 10GbE, 40GbE, and 100GbE applications, making it ideal for data centers, server rooms, and high-speed LAN environments.

Advantages

This patch cable offers low insertion loss (≤0.3 dB) and high return loss (≥30 dB), ensuring minimal signal degradation and optimal performance. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, reducing toxic fumes in case of fire. Its duplex design allows simultaneous bidirectional communication, doubling throughput compared to simplex cables.

Suitable for

• Data center interconnects
• Server-to-switch connections
• High-speed local area networks (LAN)
• Storage area networks (SAN)
• Telecommunications infrastructure

Key specifications

• Fiber Type: Multimode OM3 (50/125 µm)
• Connectors: LC/UPC to SC/UPC
• Cable Length: 3 m
• Jacket Material: LSZH, Aqua color
• Insertion Loss: ≤0.3 dB
• Return Loss: ≥30 dB
• Attenuation at 850 nm: 2.5 dB/km
• Attenuation at 1300 nm: 0.8 dB/km
• Bandwidth at 850 nm: 1500 MHz·km
• Bandwidth at 1300 nm: 500 MHz·km
• Operating Temperature: -20°C to 70°C
• Standards: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC and SC interfaces. Pair with OM3-rated transceivers for best results.
