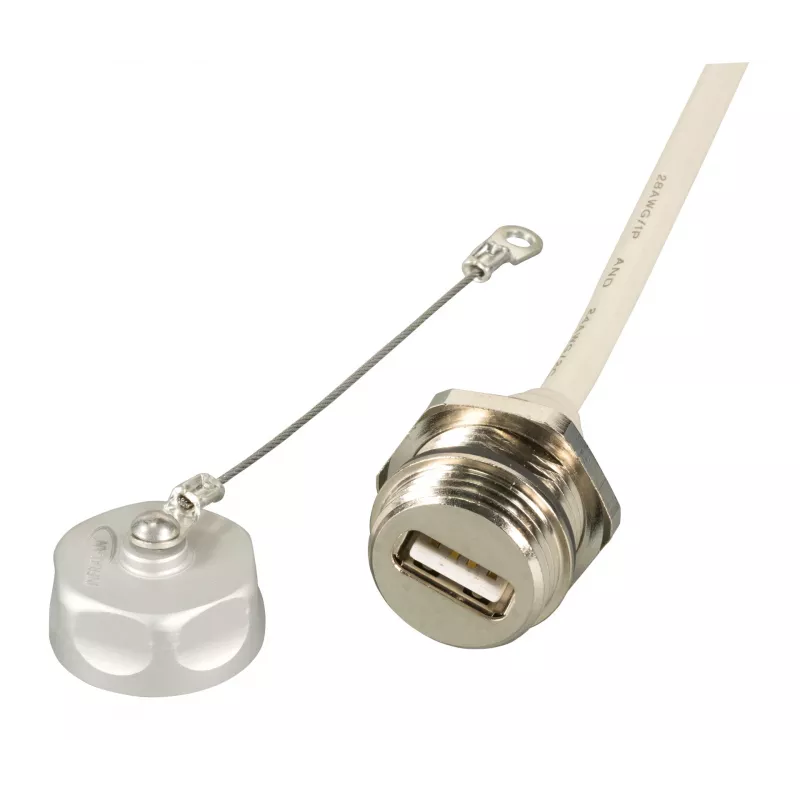

EFB Elektronik IP67 Υποδοχή USB Panel Mount, M20, USB 2.0, Θηλυκό σε Αρσενικό, 0,5m

The EFB Elektronik IP67 Panel Mount USB Socket (model IP67EBUSBA-A0,5FL) is a robust industrial-grade USB 2.0 connection solution designed for harsh environments. Featuring an M20 mounting thread and IP67 protection, this built-in socket provides reliable data and power transmission in demanding applications such as outdoor installations, factory automation, and marine equipment.

Advantages

This panel mount USB socket offers exceptional durability and environmental resistance. Its IP67 rating ensures complete protection against dust ingress and temporary immersion in water, making it ideal for use in wet or dusty conditions. The M20 thread allows for secure front panel mounting, while the integrated 0.5m cable with a USB Type-A male connector simplifies connection to internal devices. USB 2.0 compatibility guarantees data transfer rates up to 480 Mbps and supports both data and power delivery.

Suitable for

• Industrial control panels and machinery
• Outdoor kiosks and signage
• Marine and automotive applications
• Harsh environment data interfaces
• Embedded systems requiring a sealed USB port

Key specifications

• Product Type: Panel Mount USB Cable
• USB Standard: USB 2.0
• Connector 1 (Panel Mount): USB Type-A Female
• Connector 2 (Cable End): USB Type-A Male
• Cable Length: 0.5 m
• Mounting Thread Size: M20
• IP Rating: IP67
• Data Transfer Rate: Up to 480 Mbps
• Application Environment: Industrial, Outdoor, Harsh Environments
• Mounting Type: Front Panel Mount
• Connector Gender (Panel Side): Female
• Connector Gender (Cable Side): Male
• Compatibility: USB 1.1, USB 2.0
• Cable Function: Data and Power

Recommendations

For optimal performance in demanding environments, pair this IP67 panel mount USB socket with compatible industrial USB devices. Ensure the panel opening is properly sealed to maintain the IP67 rating. This product is an excellent choice for engineers and system integrators requiring a reliable, waterproof USB interface.
