EFB Elektronik EFB R&M Duplex Καλώδιο Patch E2000/APC-E2000/APC OS2 10m LSZH 3mm Κίτρινο G657A1 Grade C

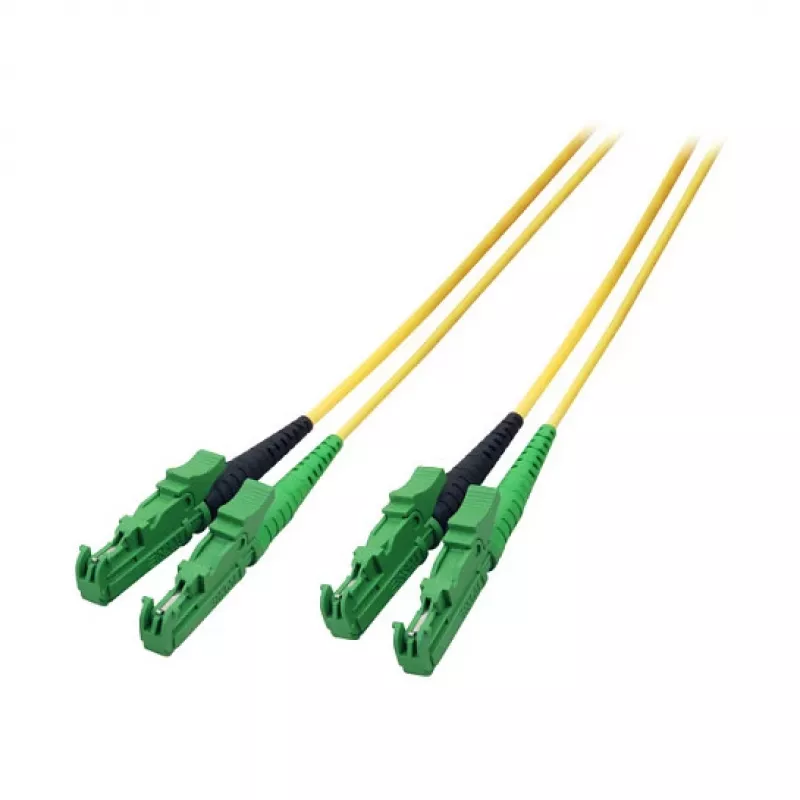

The EFB R&M Duplex Patch Cable E2000/APC-E2000/APC OS2 10m LSZH 3mm Yellow G657A1 Grade C is a high-performance fiber optic patch cable designed for reliable singlemode connections in indoor environments. Manufactured by EFB Elektronik, this cable features E2000/APC connectors on both ends, ensuring low insertion loss and high return loss for critical network applications.

Advantages

This patch cable offers exceptional signal integrity with typical insertion loss ≤0.3 dB per connector and return loss ≥60 dB. The bend-insensitive G.657.A1 fiber allows for tight bends without performance degradation, making installation easier in confined spaces. The LSZH jacket ensures safety in case of fire, emitting low smoke and no halogen.

Suitable for

• Data center interconnects
• Telecommunications networks
• FTTx applications
• High-speed enterprise networks

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Singlemode OS2
• Connector A: E2000/APC
• Connector B: E2000/APC
• Length: 10 m
• Diameter: 3 mm
• Jacket Material: LSZH
• Jacket Color: Yellow
• Configuration: Duplex
• Fiber Count: 2
• Insertion Loss: ≤0.3 dB per connector
• Return Loss: ≥60 dB
• Minimum Bend Radius: 10 mm
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for backbone cabling and high-density patching areas where space is limited.
