EFB-Elektronik LSA Μπλοκ Σύνδεσης 2/10 σε 10DA χωρίς χρωματικό κώδικα

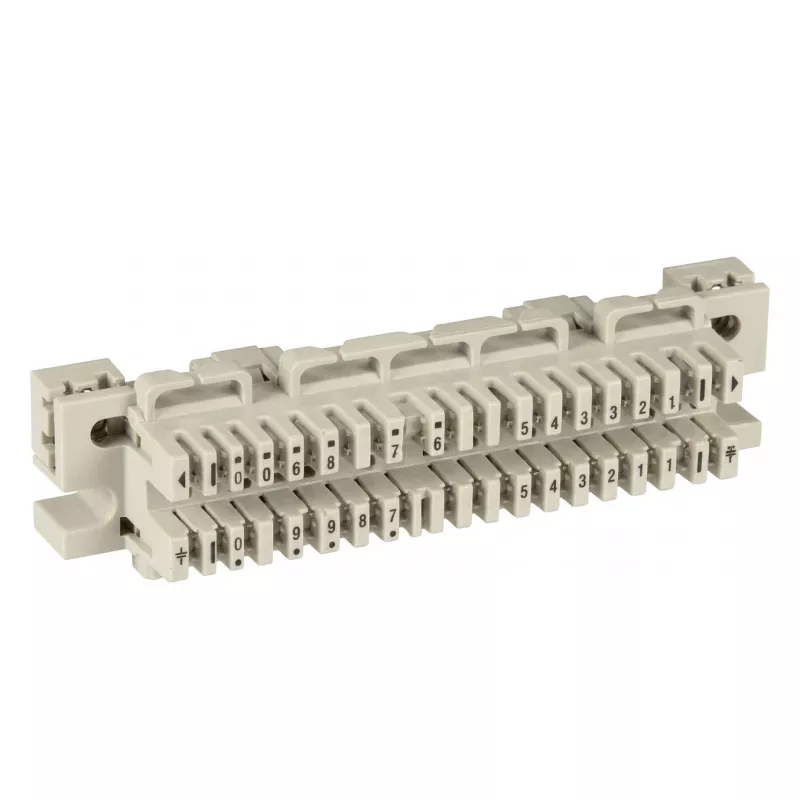

The EFB-Elektronik LSA Connection Block 2/10 to 10DA is a high-quality, uncoded LSA connection block designed for telecommunication distribution and structured cabling applications. This block provides reliable insulation displacement connections (IDC) for solid copper wires, ensuring secure and efficient terminations in network infrastructure.

Advantages

This LSA connection block offers easy and quick wire termination without stripping, using the proven IDC technology. Its compact design saves space in distribution boxes and backmount frames. The uncoded version provides flexibility for custom color coding schemes.

Suitable for

• Telecommunication distribution frames
• Structured cabling systems
• Network infrastructure installations
• Voice and data communication networks

Key specifications

• Connection Technology: LSA (Insulation Displacement Connection)
• Number of Pairs: 10
• Number of Connections: 20 (10 pairs x 2 poles)
• Pole Configuration: 2-pole per pair
• Coding Type: Uncoded (without color marking)
• Wire Gauge (Solid Core): 0.4 - 0.8 mm (AWG 26-20)
• Termination Cycles: >200
• Contact Material: Phosphor Bronze, Tin-plated
• Housing Material: Flame-retardant Thermoplastic (e.g., ABS)
• Application: Telecommunication Distribution, Structured Cabling, Network Infrastructure
• Mounting Compatibility: LSA Backmount Frames, Distribution Boxes
• Insulation Resistance: >100 MΩ (at 500V DC)
• Dielectric Strength: >1000 V AC (RMS, 1 min)
• Operating Temperature Range: -5°C to +60°C
• Storage Temperature Range: -40°C to +70°C
• Humidity: 10% to 90% non-condensing
• Standards: RoHS Compliant
• Product Type: LSA Connection Block

Recommendations

This LSA connection block is ideal for professional installers and network technicians requiring reliable and durable termination solutions. Pair with compatible LSA backmount frames and distribution boxes for optimal performance.
