EFB Electronics LC Duplex OM5 οπτικός ζεύκτης, Lime Green, κεραμικό χιτώνιο, περίβλημα SC Simplex

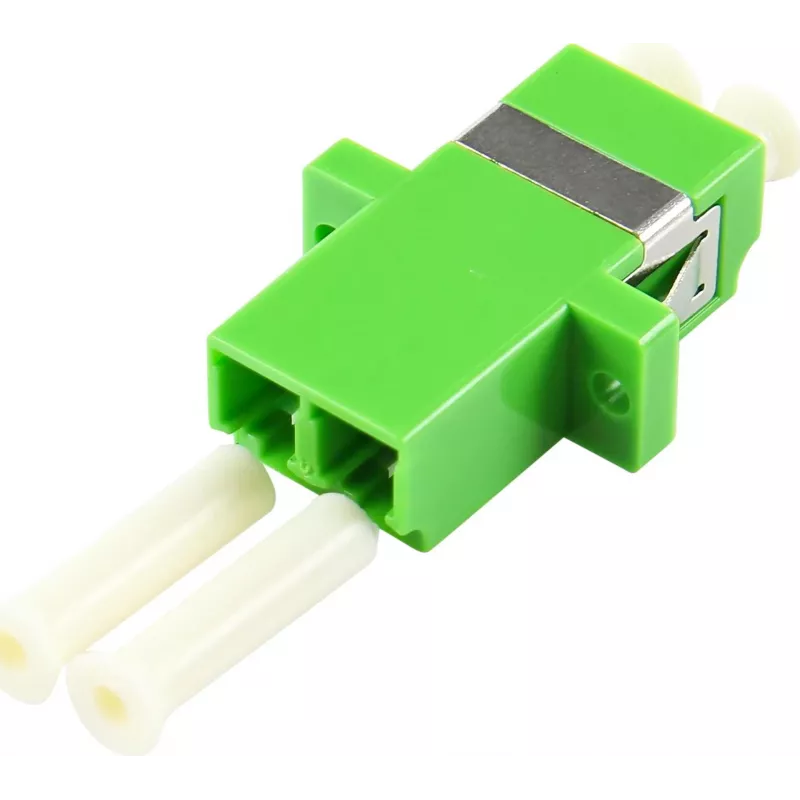

The EFB Electronics LC Duplex OM5 Fiber Optic Coupler is a high-performance, one-piece adapter designed for reliable fiber optic connections in multimode OM5 networks. Featuring a lime green housing with SC Simplex footprint and zirconia ceramic alignment sleeves, this coupler ensures low insertion loss and high return loss for optimal signal integrity. Ideal for data centers, patch panels, and fiber optic networks, it supports duplex LC connectors and is compliant with RoHS and REACH standards.

Advantages

This coupler offers exceptional durability with over 500 mating cycles, precise ceramic alignment for consistent performance, and a compact one-piece design that simplifies installation. The lime green color aids in quick identification of OM5 cabling, reducing the risk of mismatching fiber grades.

Suitable for

• Fiber optic network infrastructure
• Data center cabling and patching
• Patch panel termination
• OM5 multimode fiber systems
• High-speed data transmission up to 100G and beyond

Key specifications

• Adapter Type: Fiber Optic Coupler
• Connector Type (Side 1): LC Duplex
• Connector Type (Side 2): LC Duplex
• Fiber Mode: Multimode
• Fiber Category: OM5
• Sleeve Material: Zirconia Ceramic
• Color: Lime Green
• Housing Footprint: SC Simplex
• Design: One-piece
• Number of Fibers: 2 (Duplex)
• Insertion Loss (Typical): < 0.2 dB
• Return Loss (Typical): > 30 dB
• Mating Cycles: ≥ 500
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, REACH
• Mounting Type: Snap-in / Flange Mount

Recommendations

For optimal performance, pair this coupler with OM5 LC duplex patch cables and ensure clean, dust-free connections. Suitable for use in structured cabling systems requiring high-density fiber management.
