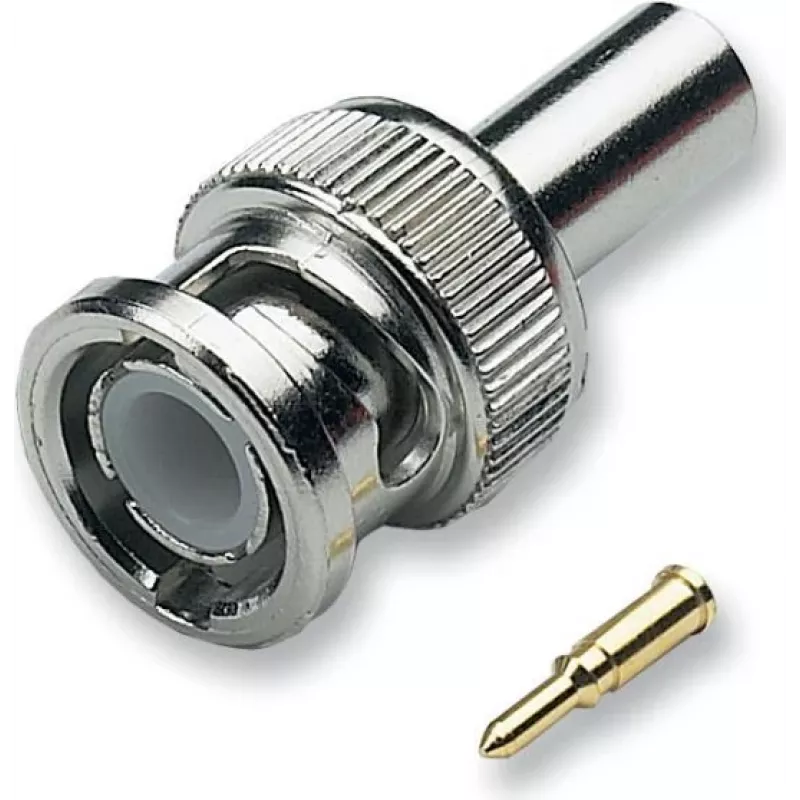

EFB BNC Crimp Connector Straight RG174 50 Ohm

The EFB BNC Crimp Connector (Model 52576.1) is a high-quality coaxial connector designed for professional RF, video, and test & measurement applications. Engineered for reliable performance, this straight male BNC plug features a crimp termination method for secure and consistent connections with RG174 cables. With a 50 Ohm impedance and a frequency range up to 4 GHz, it ensures excellent signal integrity. The connector is constructed with a brass body, nickel-plated for durability, and a gold-plated center contact for optimal conductivity and corrosion resistance. The PTFE insulator provides stable dielectric properties across a wide temperature range from -55°C to +85°C. RoHS compliant, this connector meets environmental standards.

Advantages

This BNC crimp connector offers several advantages: easy and fast installation with crimp termination, robust construction for long-lasting performance, and excellent electrical characteristics for high-frequency signals. The gold-plated center contact ensures low contact resistance and reliable mating over 500 cycles. The nickel-plated brass body provides mechanical strength and protection against environmental factors.

Suitable for

• RF and coaxial cable assemblies
• Video surveillance systems
• Test and measurement equipment
• Telecommunications and data networks
• Broadcast and audio/video applications

Key specifications

• Connector Type: BNC Male (Plug)
• Orientation: Straight
• Impedance: 50 Ohm
• Cable Compatibility: RG174
• Termination: Crimp
• Body Material: Brass, Nickel Plated
• Center Contact: Brass, Gold Plated
• Insulator: PTFE
• Frequency Range: DC - 4 GHz
• Voltage Rating: 500 V peak
• Dielectric Withstanding Voltage: 1500 V RMS
• Insulation Resistance: ≥ 5000 MΩ
• Operating Temperature: -55°C to +85°C
• Mating Cycles: 500
• RoHS Compliant: Yes

Recommendations

For optimal performance, use with RG174 coaxial cable and ensure proper crimping with the appropriate tool. This connector is ideal for professional installations where signal quality and reliability are paramount.
