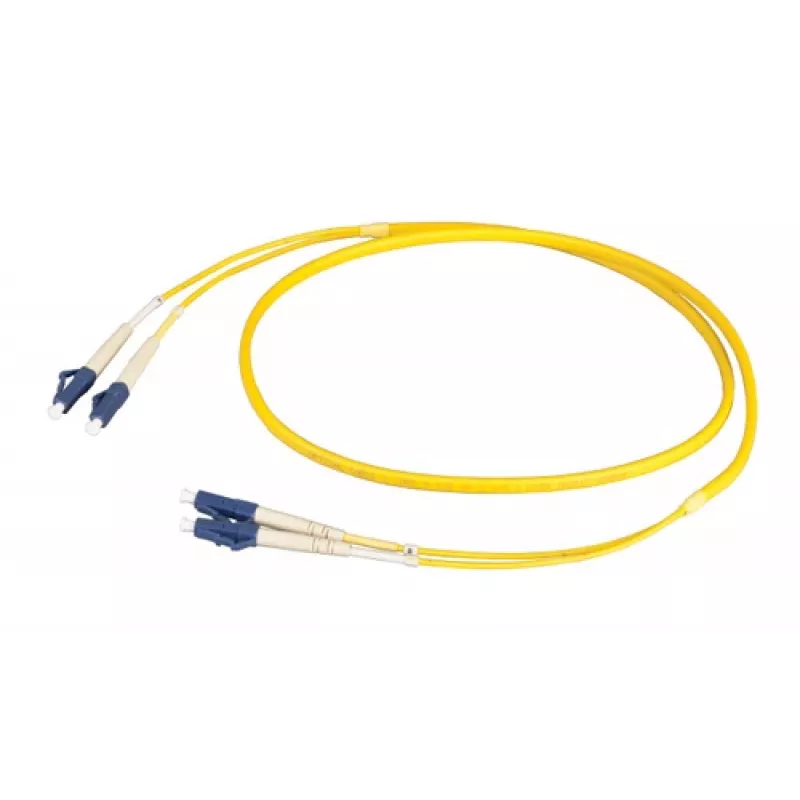

EFB Elektronik Duplex Jumper LC-LC OS2 Flat Twin 3m Κίτρινο

The EFB Elektronik O0350FT.3 Duplex Jumper LC-LC is a high-quality fiber optic patch cable designed for single-mode OS2 networks. Featuring a flat twin construction with LSZH jacket, this 3-meter jumper ensures reliable data transmission in data centers, LANs, and indoor environments.

Advantages

Low insertion loss and high return loss guarantee excellent signal integrity. The LSZH jacket provides safety in confined spaces, while the flat twin design saves space and simplifies cable management.

Suitable for

• Data center cabling
• Local area networks (LAN)
• Fiber-to-the-desk applications
• Indoor fiber optic connections

Key specifications

• Fiber mode: Single-mode OS2
• Connectors: LC Duplex to LC Duplex
• Cable length: 3 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Yellow
• Cable construction: Flat Twin (3 x 5 mm)
• Insertion loss: ≤ 0.3 dB typical
• Return loss: ≥ 50 dB typical
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.25 dB/km
• Standards: IEC 60793-2-50 Type B6.2 (OS2)

Recommendations

For optimal performance, pair with OS2-rated patch panels and ensure proper bend radius during installation.
