EFB Elektronik CTS MCT-3002BTFC μετατροπέας μέσων GigE 10Base-T 100Base-TX 1000Base-T 1000Base-X

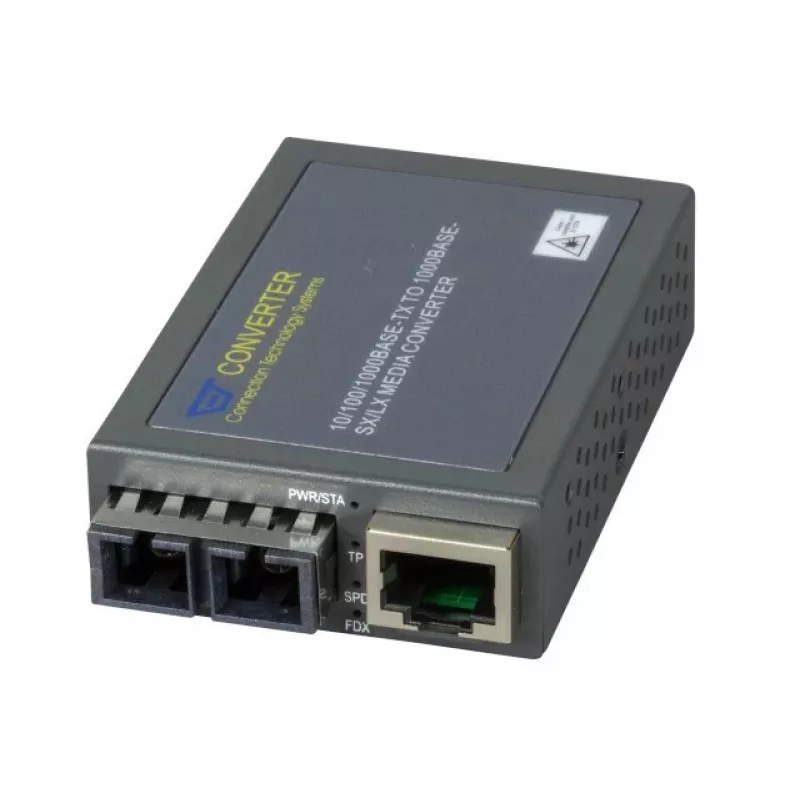

The EFB Elektronik CTS MCT-3002BTFC is a high-performance media converter designed to seamlessly connect copper and fiber optic networks. It supports Gigabit Ethernet over both RJ45 copper and SFP fiber interfaces, making it ideal for extending network distances and integrating different media types in enterprise or industrial environments.

Advantages

This media converter offers reliable and cost-effective conversion between 10/100/1000Base-T copper and 1000Base-X fiber networks. With auto-negotiation, auto MDI/MDI-X, and Link Fault Pass-Through (LFP), it ensures robust connectivity and easy troubleshooting. Its compact metal housing and external power supply make it suitable for desktop or wall-mount installations.

Suitable for

• Extending Ethernet networks beyond the 100-meter limit of copper cabling
• Connecting switches, routers, or servers to fiber optic backbones
• Integrating legacy copper devices into modern fiber networks
• Applications requiring reliable, low-latency media conversion

Key specifications

• Device Type: Media Converter
• Connectivity Technology: Wired
• Ethernet Port: 1 x 10/100/1000Base-T RJ-45
• Fiber Port: 1 x 1000Base-X SFP slot
• Data Link Protocols: Gigabit Ethernet, Fast Ethernet, Ethernet
• Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
• Auto-Negotiation: Yes
• Auto MDI/MDI-X: Yes
• Link Fault Pass-Through (LFP): Yes
• Jumbo Frame Support: Up to 9K bytes
• DIP Switch Configuration: Yes
• LED Indicators: Power, FX Link/Act, TX Link/Act, FX FDX/COL, TX FDX/COL, 1000M
• Power Supply: External DC 5V, 1A
• Power Consumption: < 3W
• Operating Temperature: 0°C to 50°C
• Operating Humidity: 10% to 90% (non-condensing)
• Housing Material: Metal
• Form Factor: External / Desktop

Recommendations

For optimal performance, use a compatible SFP module (not included) with the fiber port. Ensure proper ventilation and avoid exposure to extreme temperatures or humidity. This converter is plug-and-play and requires no software configuration.
