EDID-Emulator VALUE 14.99.3447 Μέγιστη ανάλυση βίντεο 3840 x 2160 Pixel

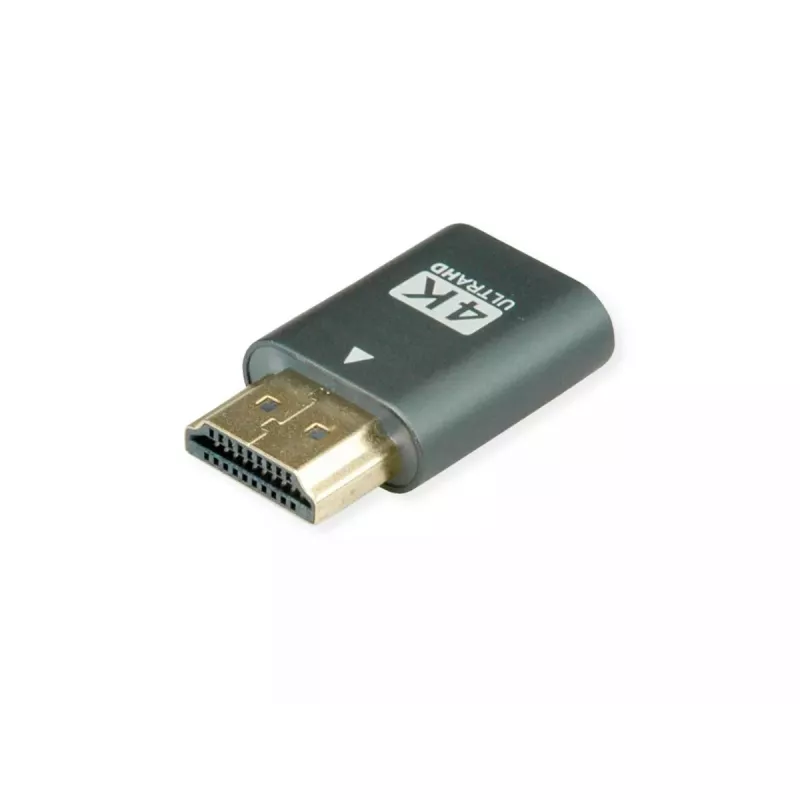

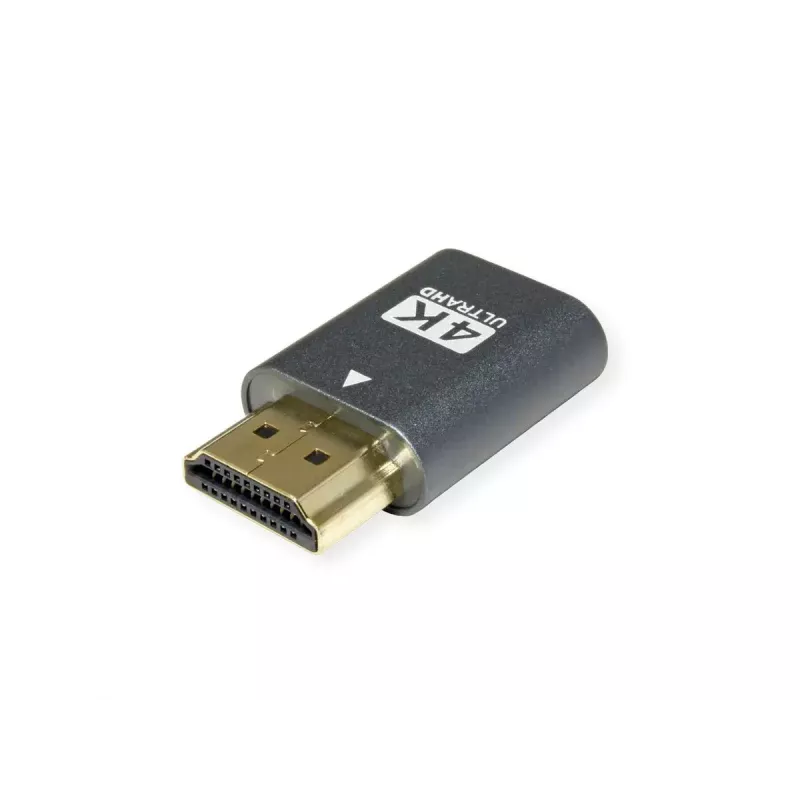

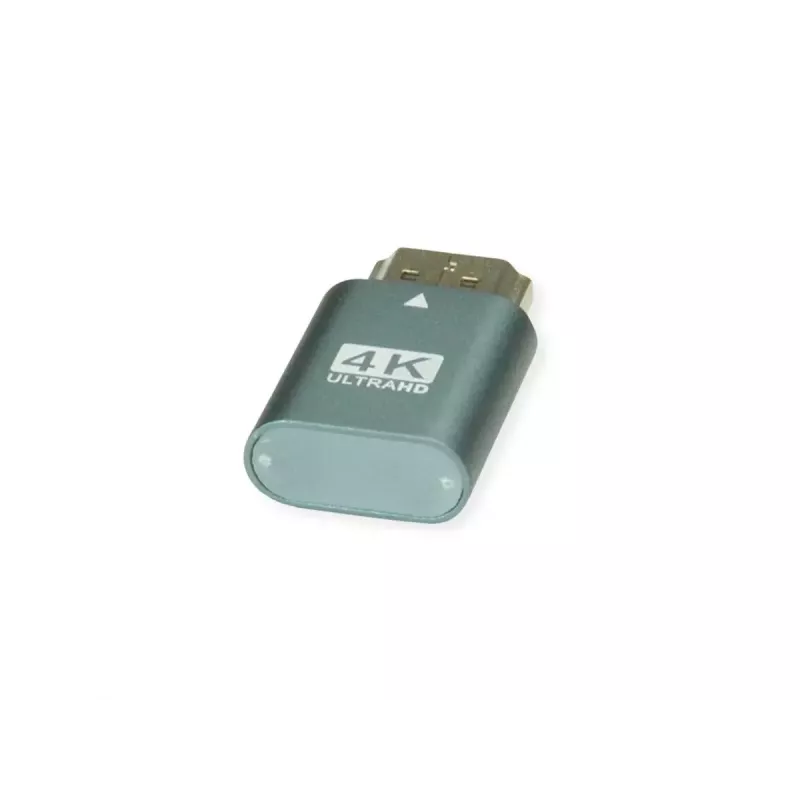

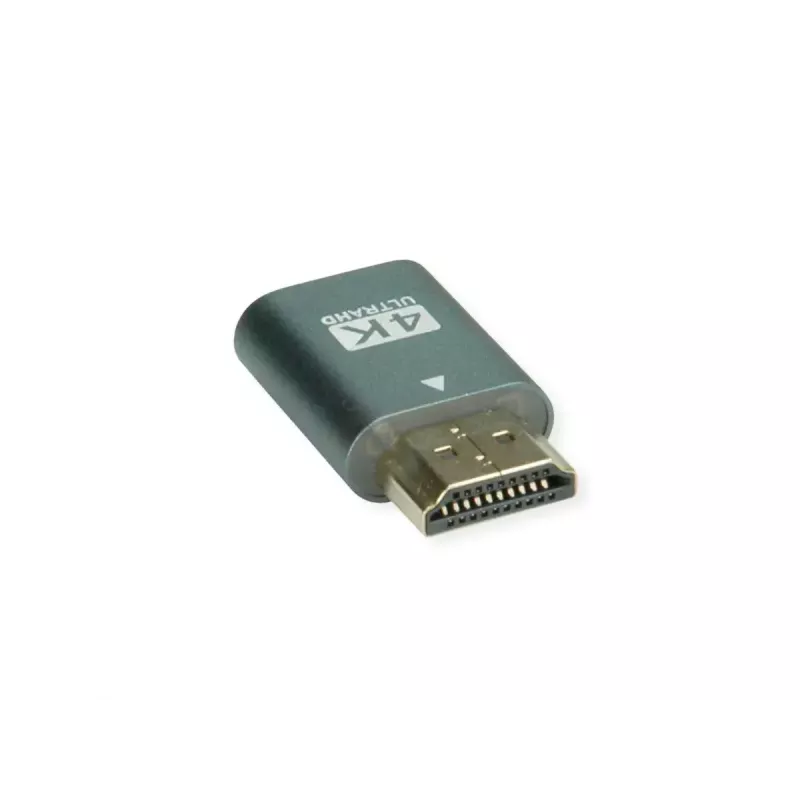

The VALUE EDID emulator 14.99.3447 is a compact device that preserves and emulates display identification data to ensure stable HDMI video output. Designed for installations where a consistent video handshake is required, this emulator supports a maximum video resolution of 3840 x 2160 pixels and connects via an HDMI video port. Its small size and light weight make it suitable for use in tight spaces and portable setups.

Advantages

This EDID emulator provides reliable signal persistence to prevent loss of video when displays are disconnected or when switching sources. The supported 3840 x 2160 pixels resolution ensures compatibility with 4K displays and sources. With a discrete black casing and a total weight of approximately 6 g, the unit is unobtrusive and easy to position close to equipment, reducing the need for frequent reconfiguration of display settings.

Suitable for

• Professional AV systems requiring stable HDMI handshakes
• Digital signage installations where displays may be turned off or replaced
• Workstations and media players that must maintain a consistent EDID
• Test benches and service environments for display troubleshooting

Key specifications

• Maximum video resolution: 3840 x 2160 pixels (4K)
• Video interface: HDMI port
• Device colour: Black
• Weight: 0.006 kg
• Form factor: compact inline emulator suitable for tight installations

How to use

Connect the VALUE EDID emulator to the HDMI source or display according to the installation needs so that it sits inline between the source and the display or is connected to the source/output port as specified by the setup. Once connected, the device emulates the stored display identification data, allowing the source to maintain video output at supported resolutions. No additional software is required for basic operation; ensure stable power to connected devices and confirm the display is set to accept the incoming HDMI signal.

Recommendations

For optimal results, place the emulator close to the display or source to minimise cable runs and signal degradation. Verify that the connected display supports 3840 x 2160 pixels for full-resolution output and check HDMI cable versions for compatibility with 4K signals. If experiencing handshake issues, power-cycle the source and display after inserting the emulator to force a fresh EDID read.
