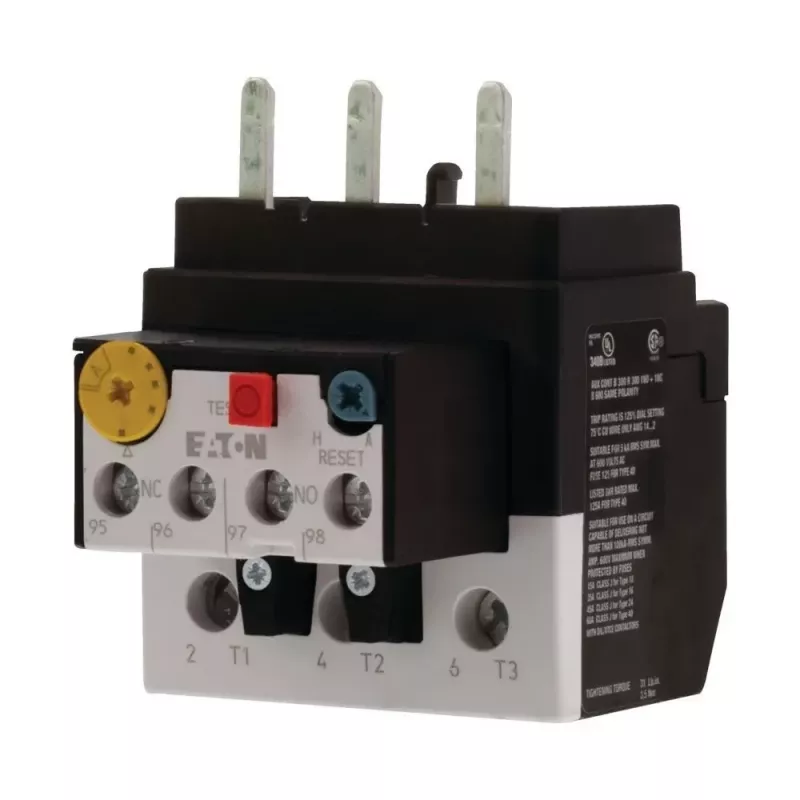

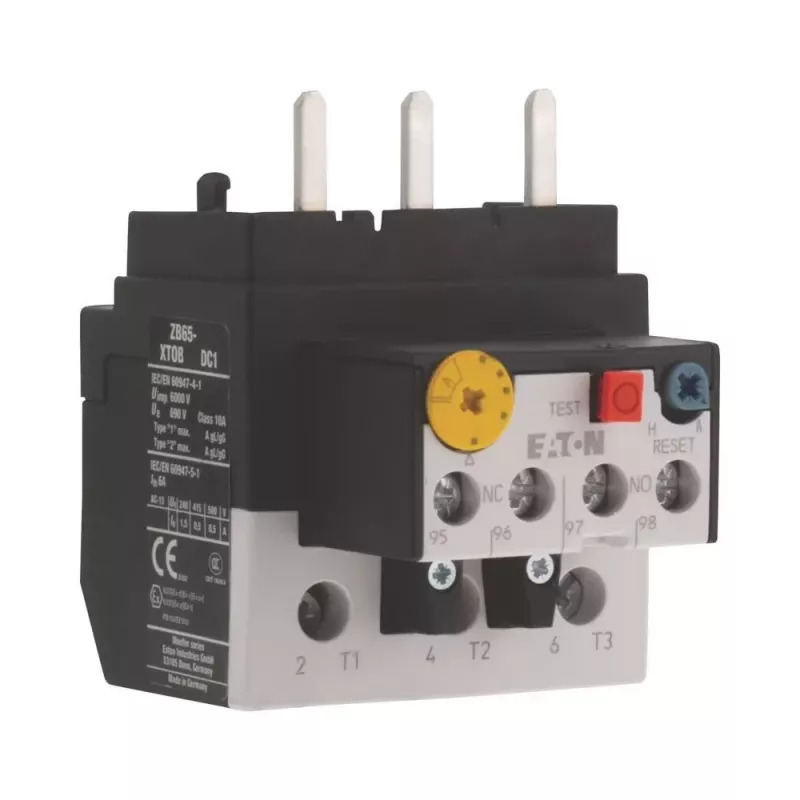

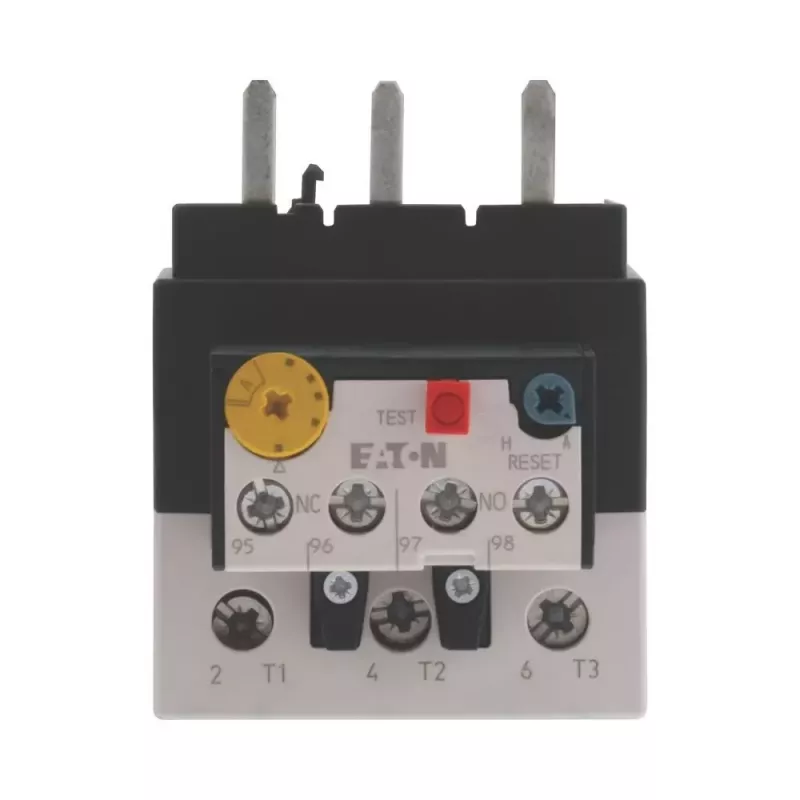

Eaton ZB65-24 ρελέ ισχύος μαύρο - λευκό (278457)

The Eaton ZB65-24 is a power relay designed for reliable motor protection and control in industrial applications. Its standout capability is the adjustable overload release with a current setting range of 24 to 32 A, ensuring precise protection for motors rated up to 65 A.

Advantages

This relay offers manual or automatic reset options, phase failure sensitivity, and a test function for easy commissioning. It can be mounted directly onto DILM contactors (DILM40 to DILM170) or used as a standalone unit, providing flexibility in panel design.

Suitable for

• Motor protection in industrial control panels
• Overload monitoring for three-phase motors
• Integration with Eaton DILM contactor series

Key specifications

• Current setting range: 24 - 32 A
• Rated operational current: up to 65 A
• Rated operational voltage: 690 V AC
• Number of poles: 3
• Auxiliary contacts: 1 NO + 1 NC
• Mounting: direct on DILM contactors or stand-alone
• Reset type: manual/automatic selectable
• Degree of protection: IP20
• Ambient operating temperature: -25 to +55 °C
• Connection type: screw terminals
• Phase failure sensitivity: yes
• Tripping indication: yes
• Test function: yes
• Maximum short-circuit protection (fuse): 125 A gG/gL

Recommendations

For reliable motor protection in demanding industrial environments, pair the ZB65-24 with Eaton DILM contactors and appropriate short-circuit protection devices.
