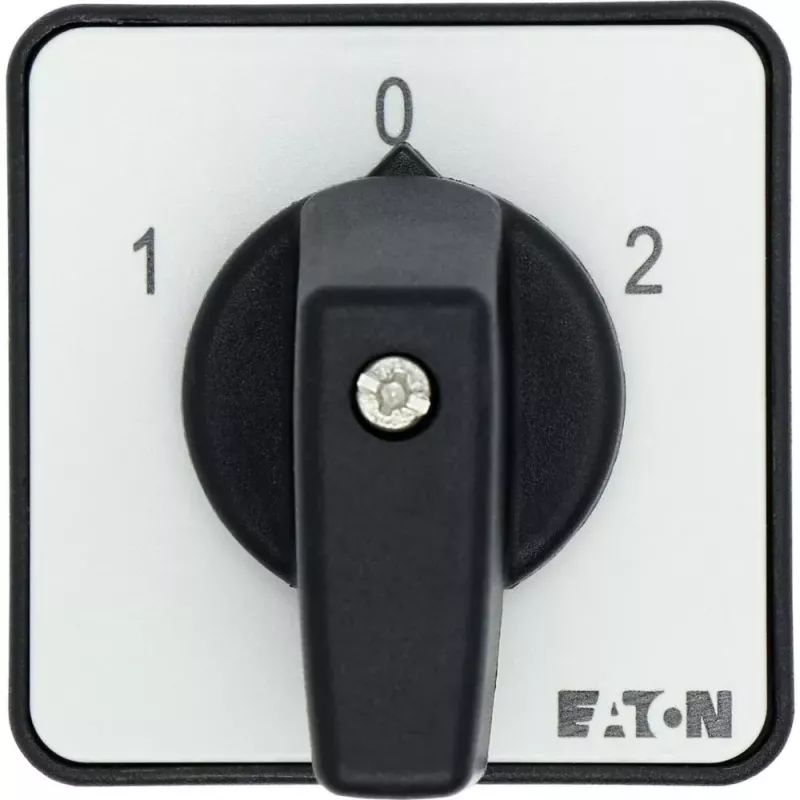

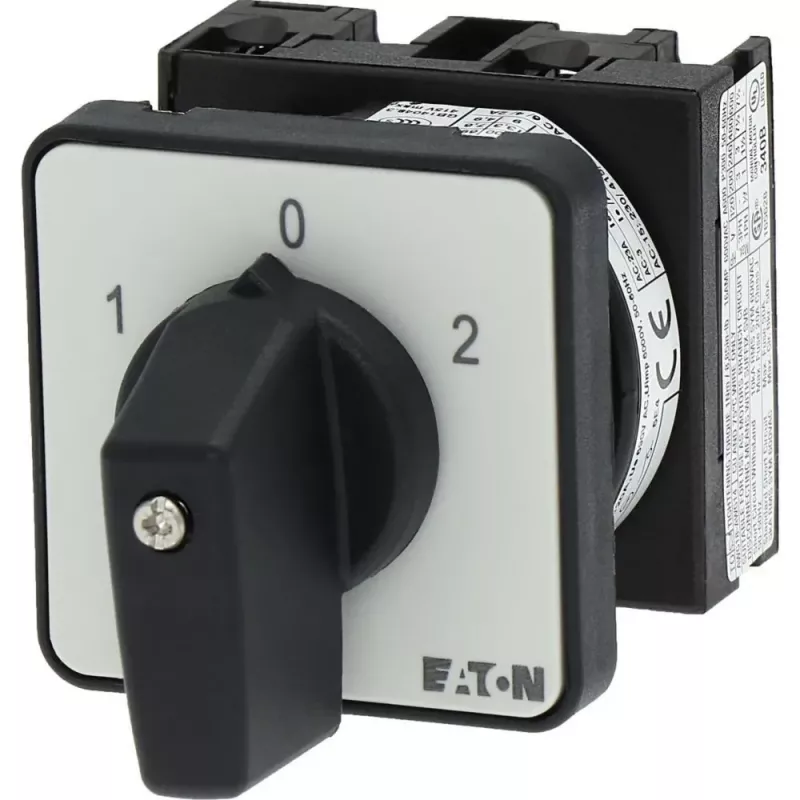

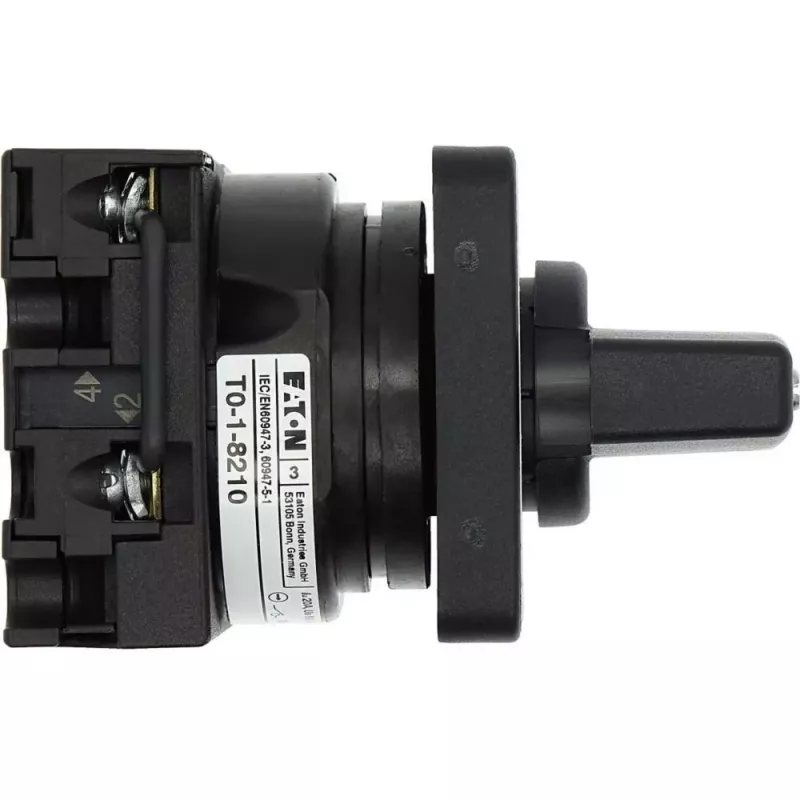

Eaton T0-1-8210/E Διακόπτης μοχλού 1πολικός Μαύρο Μεταλλικό 012742

For panel builders and machine operators who need a robust front-mounted switch, the Eaton T0-1-8210/E offers straightforward ON/OFF control in a compact 48 x 48 mm footprint. Its black toggle lever stands out clearly against the metallic front plate, making it easy to identify and operate even in busy control cabinets.

Key specifications

• Switch type: Toggle switch
• Number of poles: 1
• Switching function: ON/OFF (2 positions)
• Rated operational current: 20 A at 400 V
• Rated operational voltage: 690 V AC
• Mounting type: Front panel mounting

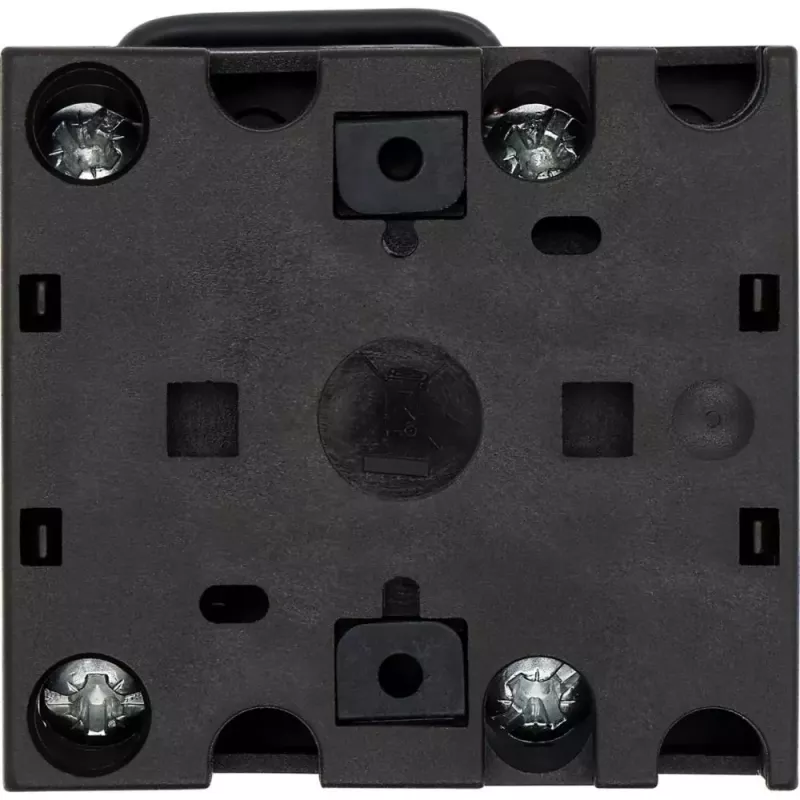

• Connection type: Screw terminals
• Degree of protection (front): IP65
• Actuator colour: Black
• Front plate dimensions: 48 x 48 mm
• Switching angle: 90°
• Ambient operating temperature: -25 to +50 °C
• Terminal capacity: 1 x (1-2.5) mm² / 2 x (1-2.5) mm²

Why choose it

The IP65 front protection keeps dust and water jets away from the switching mechanism, while screw terminals provide a secure connection for solid or stranded conductors. The metallic front plate adds durability in industrial environments.

Ideal use cases

• Control panels for machine tools
• Conveyor systems and packaging equipment
• HVAC and pump control cabinets

Good to know

The switch meets IEC/EN 60947 standards for low-voltage switchgear. Its 90° toggle action gives a clear visual indication of the switching state.
