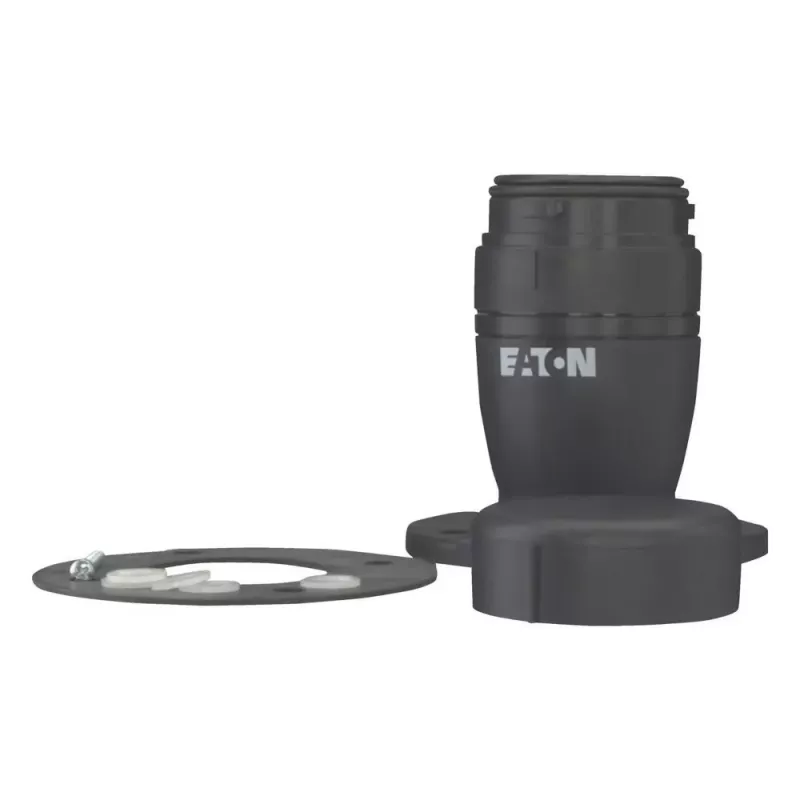

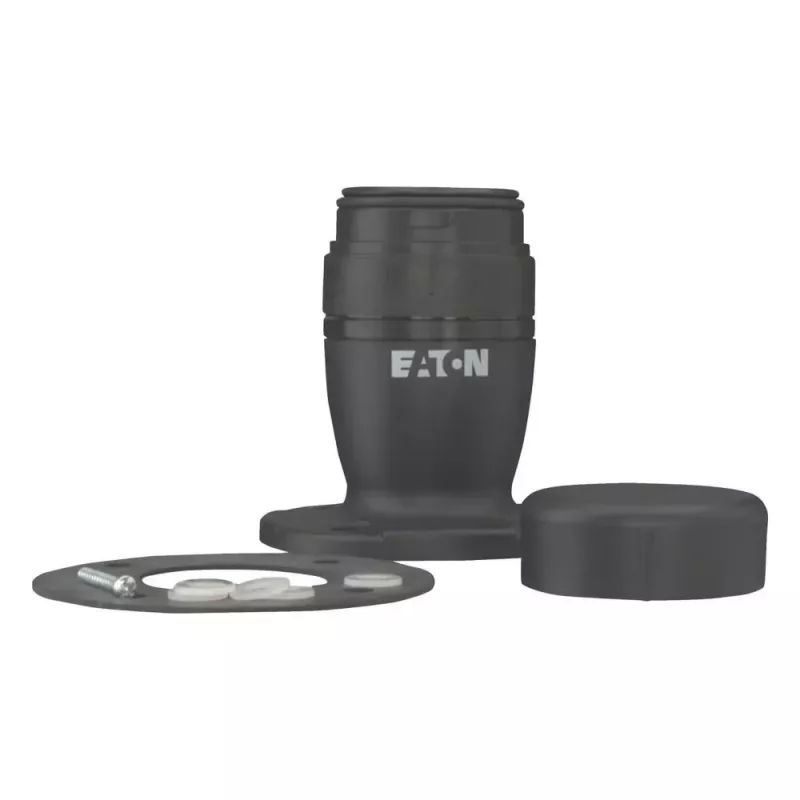

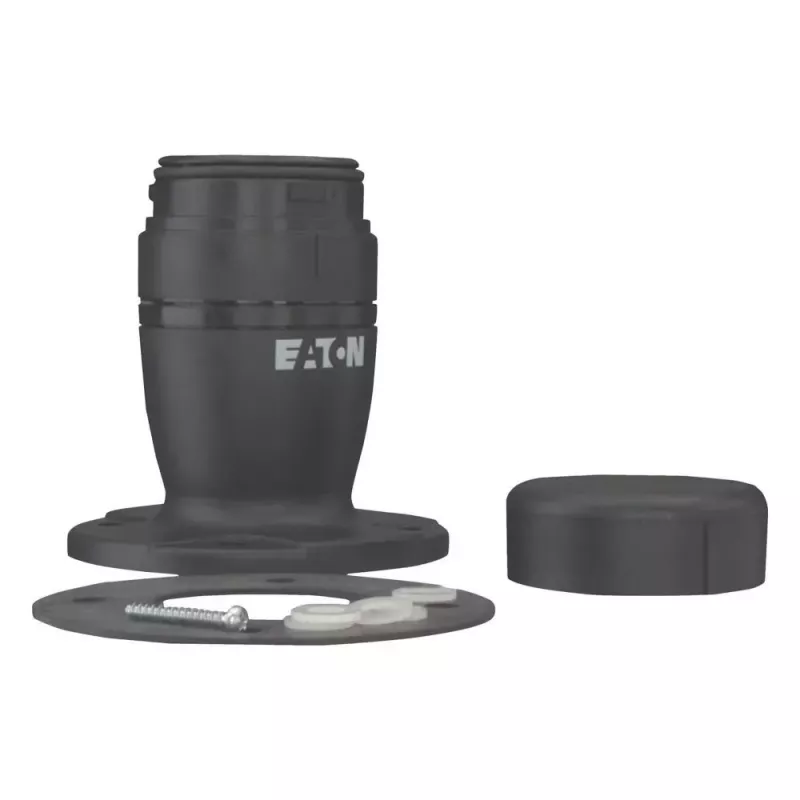

Eaton SL4-PIB-EMH Στοιχείο σύνδεσης για φάρους σήμανσης SL4, μαύρο 171302

Connection element for Eaton SL4 modular signal towers, providing power and signal supply to up to five signal modules. The SL4-PIB-EMH offers a robust base mounting solution with screw terminals and an M20 cable gland for secure wiring.

Advantages

Direct base mounting simplifies installation on flat surfaces. The 5-pole terminal block supports connection of up to five signal modules, enabling versatile tower configurations. The polycarbonate housing ensures durability in industrial environments.

Suitable for

• Eaton SL4 series signal towers
• Industrial signalling applications requiring modular stack lights
• Installations with M20 cable glands and screw terminal connections

Key specifications

• Series: SL4
• Product type: Connection element / base element
• Mounting type: Base mounting / direct mounting
• Electrical connection: Screw terminals, 5-pole
• Cable entry: M20 cable gland (cable diameter 6–13 mm)
• Degree of protection: IP66
• Housing material: Polycarbonate
• Colour: Black
• Operating temperature range: -30 to +60 °C
• Rated insulation voltage: 250 V AC
• Rated impulse withstand voltage: 2.5 kV
• Terminal cross-section: 0.5–2.5 mm² (AWG 20–14)
• Max. number of signal modules: 5

Recommendations

Verify the required cable diameter and module count before installation. Ensure the mounting surface is flat and stable.
