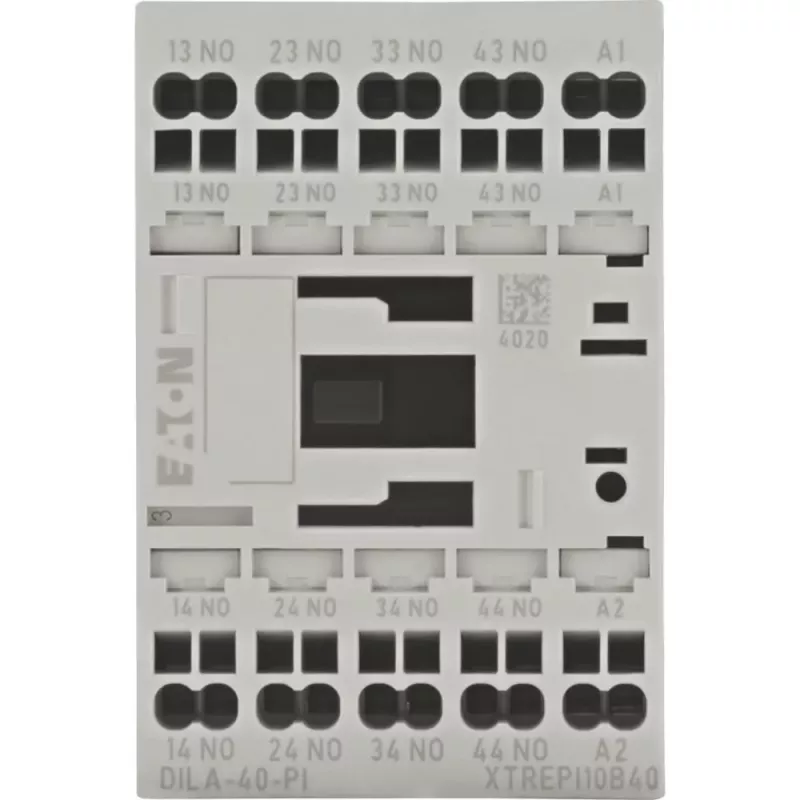

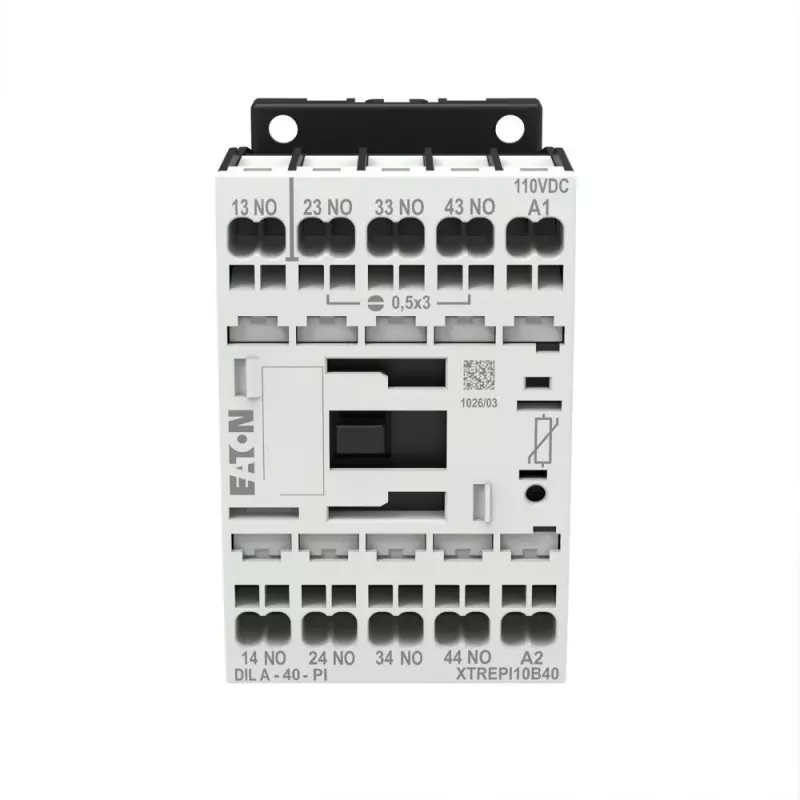

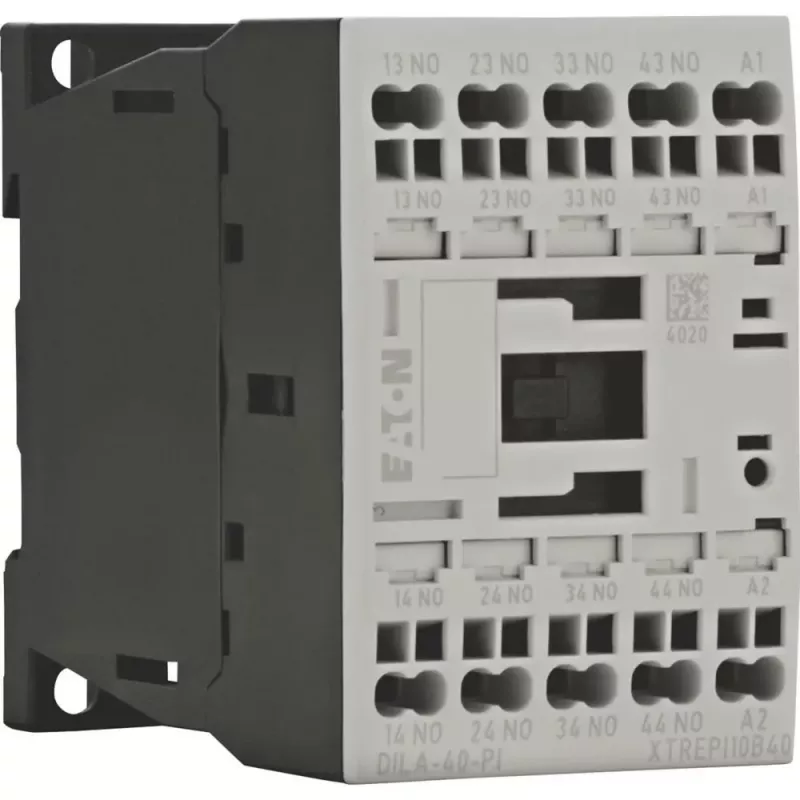

EATON DILA-40(24VDC)-PI Βοηθητικός επαφέας 24VDC 4 NO συνδέσεις Push-in 199208

Auxiliary contactor with 4 normally open contacts and 24 V DC coil, featuring push-in terminals for fast, tool-free wiring. It handles rated operational currents up to 4 A at AC-15 (230 V) and 1 A at DC-13 (24 V), with a rated insulation voltage of 690 V and impulse withstand voltage of 6 kV. Designed for DIN rail or screw mounting, it operates reliably from -25 to +60 °C.

Advantages

Push-in terminals reduce wiring time and ensure secure connections. The contactor offers high electrical and mechanical durability, with over 1.5 million electrical operations (AC-15) and more than 10 million mechanical operations.

Suitable for

• Control circuits in industrial automation
• Auxiliary switching in motor starters
• Signal and interlocking circuits
• Applications requiring compact, reliable contactors

Key specifications

• Coil voltage: 24 V DC
• Contact configuration: 4 NO
• Terminal type: Push-in
• Rated operational current (AC-15, 230 V): 4 A
• Rated operational current (DC-13, 24 V): 1 A
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 6 kV
• Mounting: DIN rail / screw
• Operating temperature: -25 to +60 °C
• Degree of protection: IP20

Recommendations

For reliable auxiliary switching in demanding industrial environments, the EATON DILA-40(24VDC)-PI offers proven performance and easy installation.
