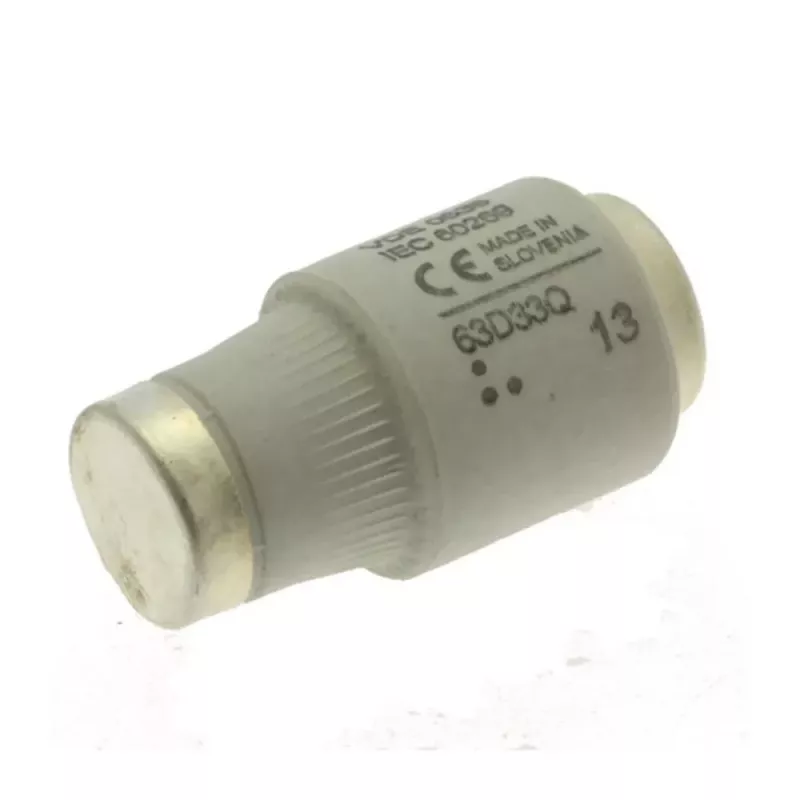

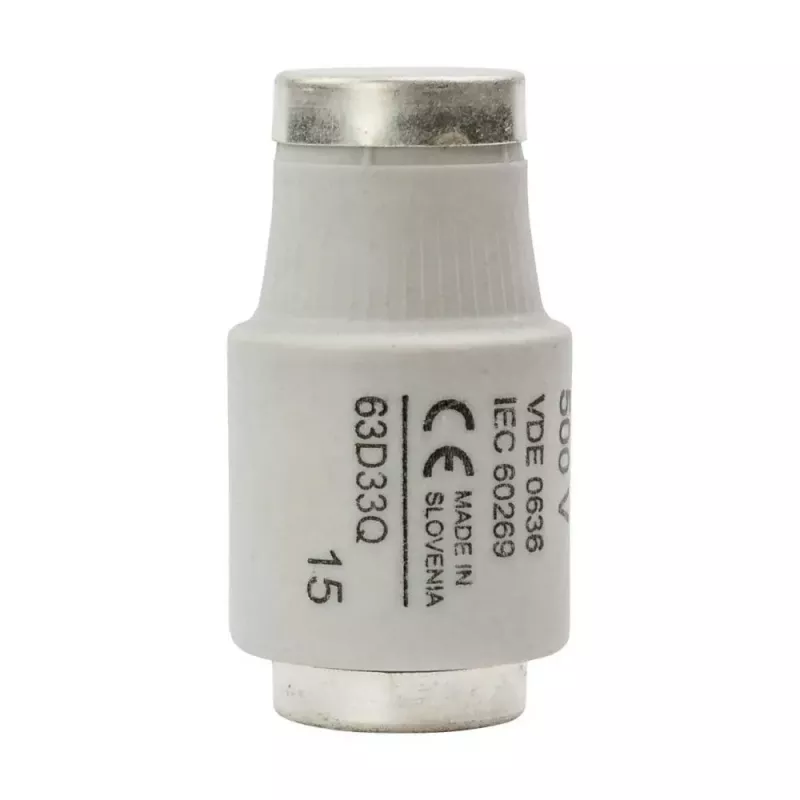

Eaton 63D33Q Ασφάλεια DIAZED 63 A 500 V AC DIII E33 gG

Low voltage fuse link for DIAZED DIII systems, rated 63 A and 500 V AC, providing reliable circuit protection with a 50 kA breaking capacity.

Advantages

The ceramic body and silver-plated copper contacts ensure durability and low contact resistance. The gG operating class offers full-range protection for general applications, and the visible color-coded indicator allows quick status checks.

Suitable for

• Protection of cables and lines in low voltage distribution
• General purpose circuit protection in industrial and commercial installations
• DIAZED DIII fuse bases with E33 screw-in mounting

Key specifications

• Rated current: 63 A
• Rated voltage: 500 V AC
• Fuse size: DIII
• Fuse base type: E33 (DIAZED)
• Operating class: gG
• Breaking capacity: 50 kA
• Mounting type: Screw-in
• Indicator: Visible, color coded (black)
• Body material: Ceramic
• Contact material: Silver-plated copper
• Number of poles: 1

Recommendations

For replacement, ensure compatibility with DIAZED DIII fuse bases and verify the rated current and voltage match your application requirements.
