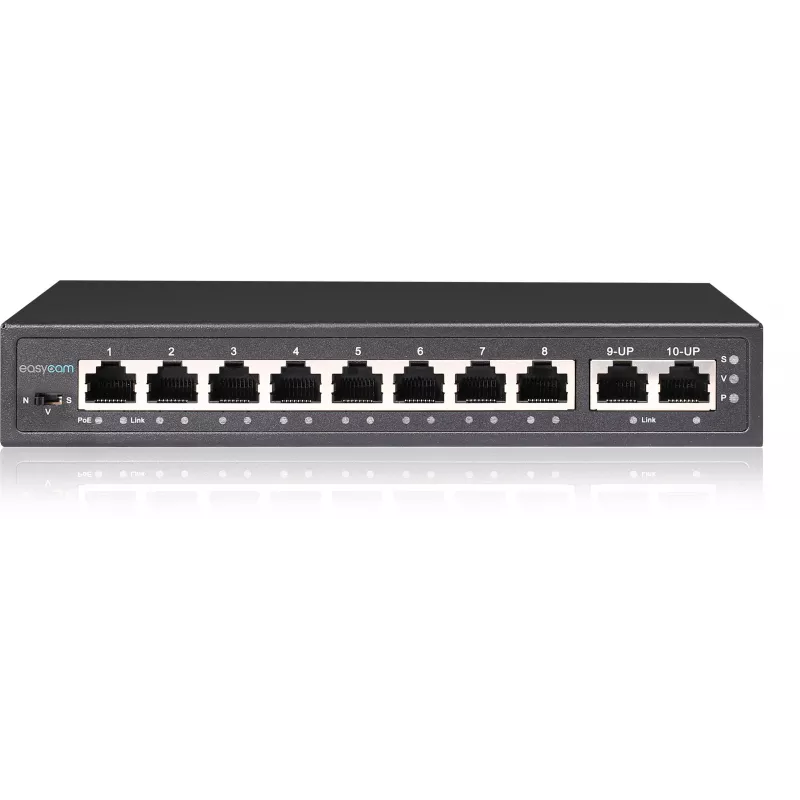

EasyCam EC-POE-SW82 Switch PoE 8 Θυρών 96W

The EasyCam EC-POE-SW82 is a high-performance unmanaged PoE switch designed for small to medium-sized networks. With 8 PoE ports and 2 uplink ports, it delivers reliable power and data connectivity for IP cameras, access points, and other PoE devices. The total PoE budget of 96W supports IEEE 802.3af/at standards, providing up to 30W per port.

Advantages

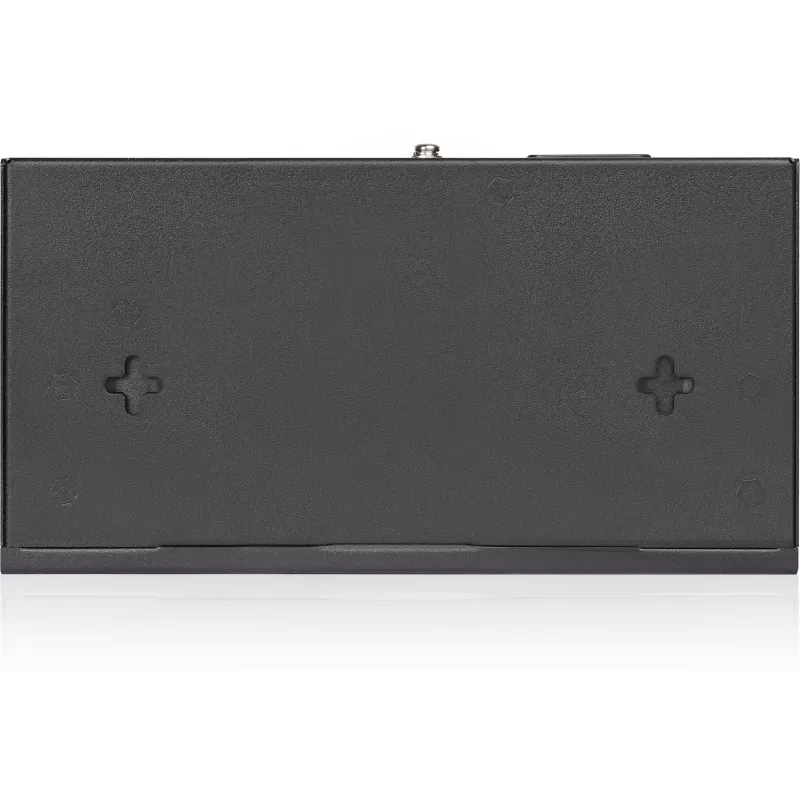

This switch simplifies network deployment by eliminating the need for separate power cables for each device. Its plug-and-play design requires no configuration, making it ideal for quick installations. The compact desktop form factor and wall-mountable option offer flexible placement.

Suitable for

• IP surveillance systems
• Wireless access points
• VoIP phones
• Small office/home office networks

Key specifications

• 10 Fast Ethernet ports (8 PoE + 2 uplink)
• PoE standard: IEEE 802.3af/at
• Total PoE budget: 96W
• Max power per port: 30W
• Switching capacity: 2 Gbps
• Forwarding rate: 1.488 Mpps
• MAC address table: 2K entries
• Jumbo frame support: 2K bytes

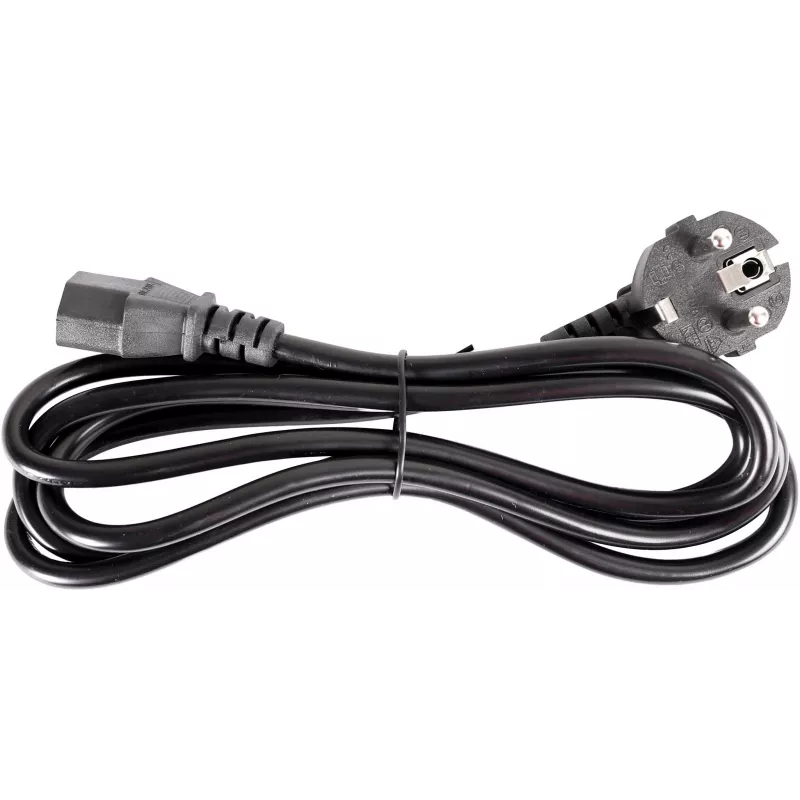

• External power adapter: 100-240V AC input, 52V DC output
• Operating temperature: 0°C to 40°C

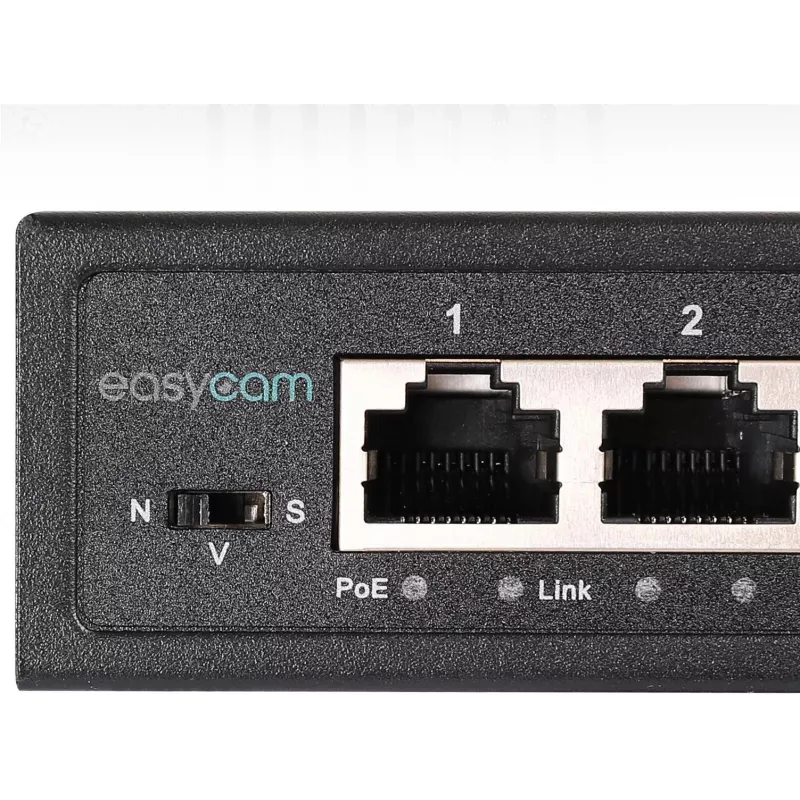

• LED indicators for power, link/activity, and PoE status

Recommendations

For optimal performance, use quality Cat5e or higher Ethernet cables. Ensure the total power draw of connected devices does not exceed 96W. This switch is best suited for environments requiring reliable PoE delivery without advanced management features.
