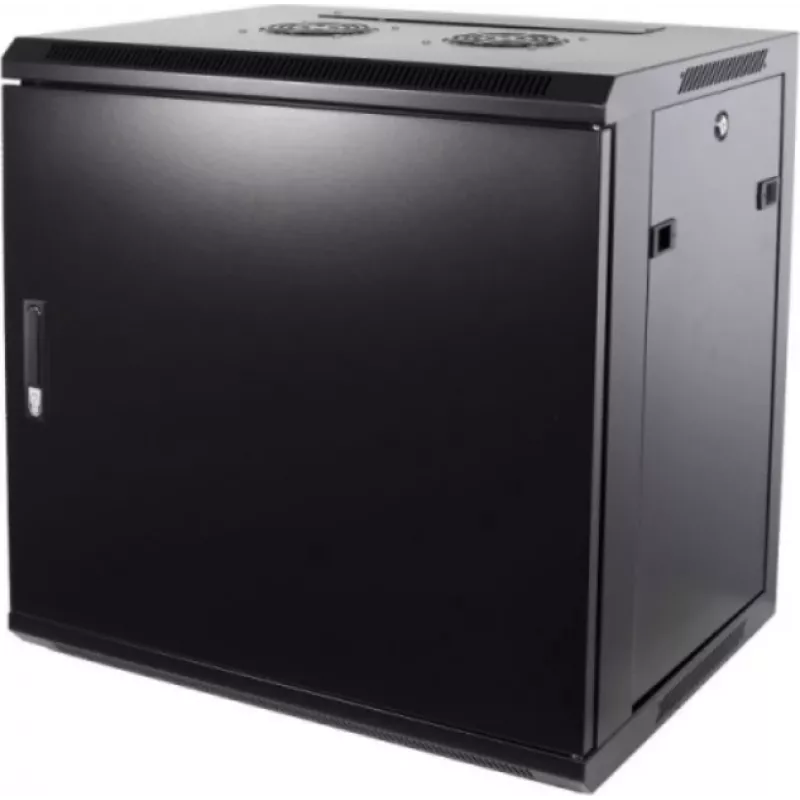

DSIT DS6609M 9U Ερμάριο Server Τοίχου 600x600x500mm με Μεταλλική Πόρτα

With a 60 kg load capacity in a compact 9U form factor, the DSIT DS6609M wall-mount cabinet secures your network equipment without wasting floor space. The solid metal door and lockable design keep critical hardware protected, while the 600 x 600 mm footprint accommodates standard 19-inch gear.

Overview

This DSIT server cabinet is built from SPCC cold-rolled steel with a durable powder-coated finish in black (RAL 9005). It mounts directly to the wall, freeing up valuable floor area in offices, retail spaces, or small server rooms. The cabinet provides 9U of rack space with adjustable front and rear mounting rails, supporting equipment up to 600 mm deep. Passive ventilation slots and removable top/bottom cable entry plates ensure proper airflow and clean cable routing.

What stands out

• 60 kg maximum weight capacity for heavy switches, servers, or UPS units
• Lockable solid metal front door with included key for security
• Removable side panels for easy access during installation and maintenance
• Adjustable 19-inch mounting rails with front and rear positions
• Top and bottom cable entry with removable plates for flexible routing
• Grounding studs on frame and doors for safe electrical bonding
• Fully assembled – ready to mount right out of the box

Technical details

• Rack capacity: 9U
• External dimensions (W x D x H): 600 x 600 x 500 mm
• Rack standard: 19-inch
• Material: SPCC cold-rolled steel
• Surface finish: Powder coated
• Color: Black (RAL 9005)
• Protection class: IP20
• Load capacity: 60 kg
• Cable entry: Top and bottom
• Ventilation: Passive ventilation slots
• Security: Lockable front door with key
• Side panels: Removable side panels
• Mounting rails: Adjustable 19-inch mounting rails (front and rear)
• Assembly: Fully assembled
• Grounding: Grounding studs on frame and doors
• Compliance: RoHS, CE

Our verdict

The DSIT DS6609M is a robust, space-saving solution for securing network equipment in any environment. Its solid steel construction and lockable door provide peace of mind, while the 60 kg capacity and adjustable rails accommodate a wide range of hardware. Easy to install and maintain, it's an excellent choice for small to medium-sized installations.
