DSIT DC-Wall-Out-STP6-I Εξωτερική Cat. 6/Class E Θωρακισμένη Πρίζα Dual-RJ45, Ιβουάρ

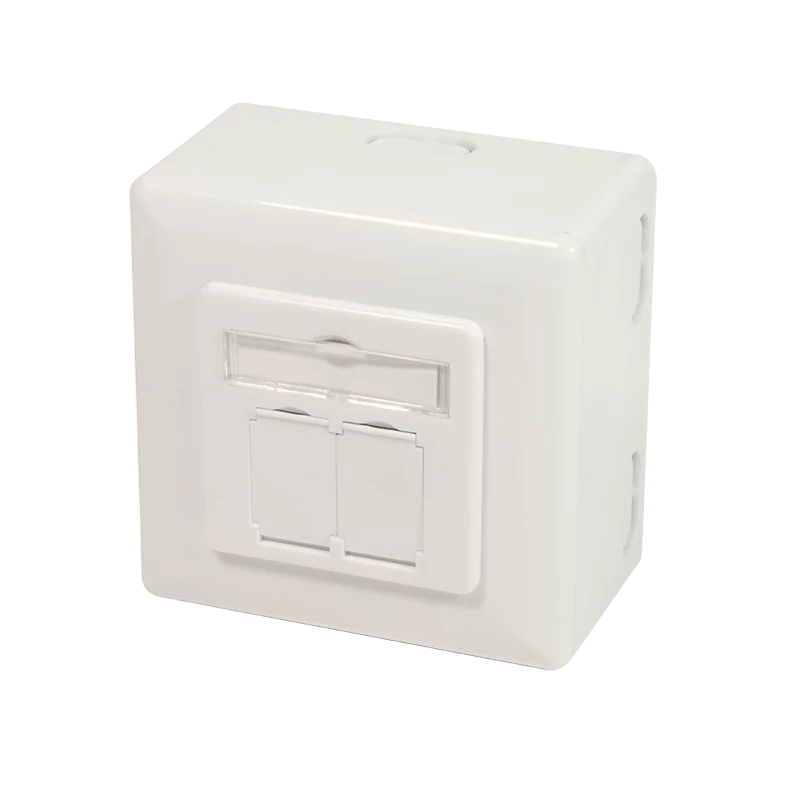

Network installers and facility managers often need a reliable, shielded connection point in offices, schools, or industrial environments where in-wall cabling is not an option. The DSIT DC-Wall-Out-STP6-I answers that need with a surface-mounted, dual-port RJ45 outlet built for Category 6 / Class E performance. Its ivory housing blends discreetly into most interiors while protecting the gold-plated contacts and LSA+ terminations from dust and accidental contact.

Key specifications

• Product type: Data outlet (surface mount)
• Cabling category: Cat. 6 (ISO/IEC Class E)
• Shielding: Shielded (STP)
• Number of ports: 2 x RJ45
• Connector contacts plating: Gold
• Termination type: LSA+ (IDC)
• Wiring standard: TIA/EIA 568A/B
• Transmission speed: Up to 1 Gigabit Ethernet (1000BASE-T)
• Backward compatibility: Cat. 5e, Cat. 5
• Housing material: Plastic
• Colour: Ivory
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Why choose it

This outlet ensures stable, high-speed data transmission with minimal interference thanks to its shielded construction and gold-plated contacts. The dual-port design lets you connect two devices from a single cable run, saving installation time and cost. Its surface-mount form factor eliminates the need for cutting into walls, making it ideal for retrofits, temporary setups, or solid concrete/brick walls.

Ideal use cases

• Office workstations where two network devices (PC and VoIP phone) share one drop.
• Classrooms and training rooms requiring reliable, easily accessible network points.
• Industrial or warehouse environments with concrete walls where flush mounting is impractical.
• Temporary event networking or exhibition booths needing quick, professional connections.

Good to know

The outlet supports both T568A and T568B wiring schemes, so it integrates seamlessly with existing infrastructure. Its compact, robust plastic housing withstands daily use, and the LSA+ terminals accept solid or stranded conductors for flexible installation. While it is backward compatible with older cabling, pairing it with Cat. 6 cable and components ensures full Class E performance up to 250 MHz.
