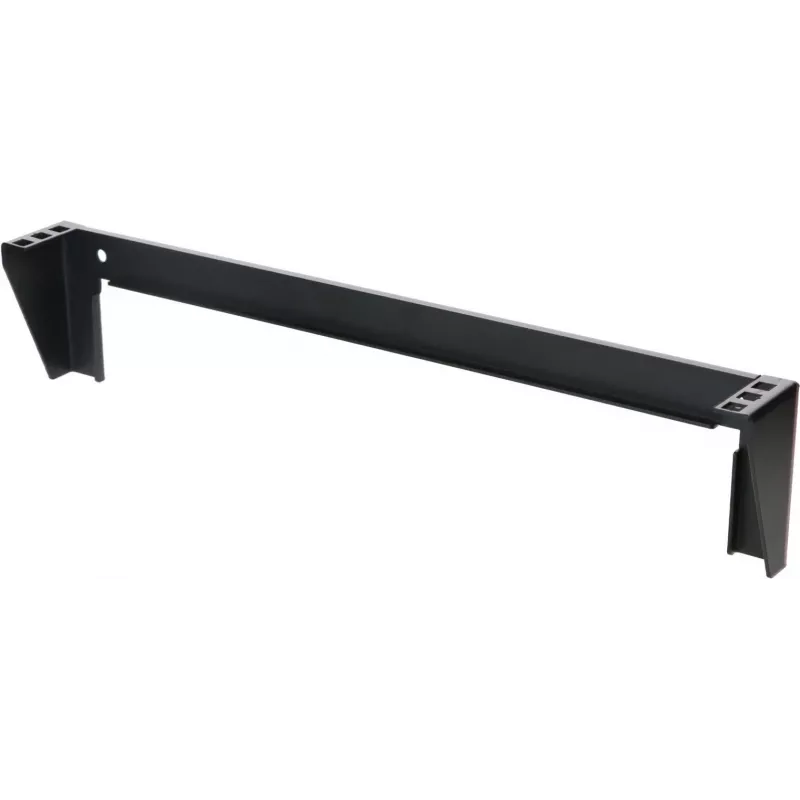

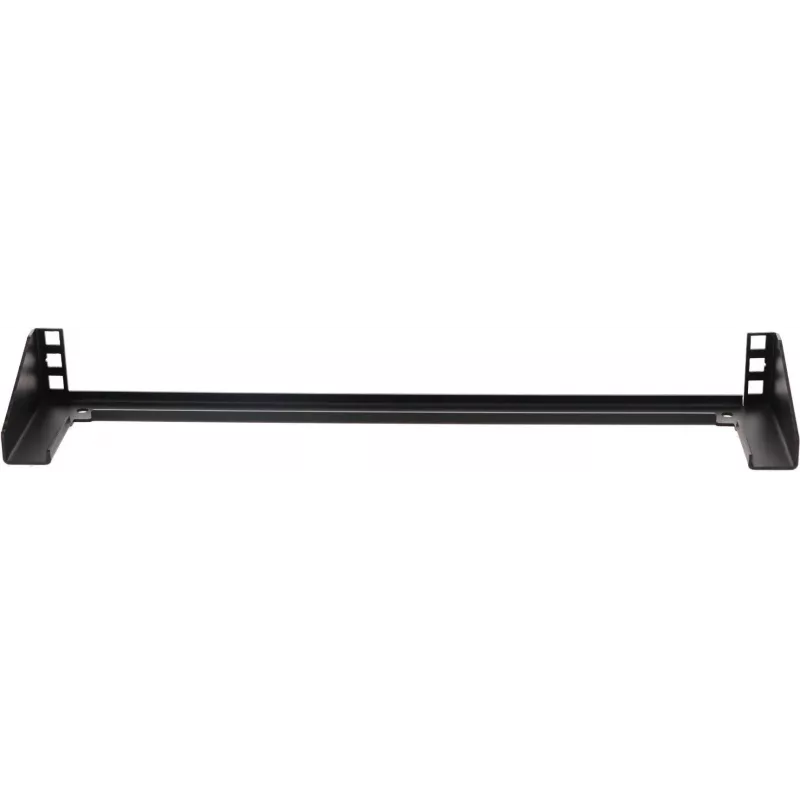

DSIT 1U 19 inch Κατακόρυφο πλαίσιο rack επιτοίχιας τοποθέτησης DS-WMB1-V

Maximize your vertical space with the DSIT DS-WMB1-V, a 1U 19-inch wall mount rack frame engineered for compact installations where floor or desk space is at a premium. Unlike traditional horizontal racks, this vertical frame mounts equipment perpendicular to the wall, making it ideal for small network cabinets, home labs, AV setups, and edge deployments. Its robust steel construction and black powder-coated finish ensure durability and a professional appearance.

Highlights

• Space-saving vertical design mounts 1U 19" equipment against the wall
• Sturdy steel frame with durable black powder-coated finish (RAL 9005)
• Supports up to 15 kg of equipment load
• Compatible with all standard 19-inch rack-mountable devices
• Square mounting holes accept M6 cage nuts for secure equipment installation
• Pre-drilled wall mounting points for easy installation (wall fasteners not included)

In daily use

The DS-WMB1-V excels in environments where every square centimeter counts. Mount a network switch, patch panel, or small server vertically to keep cables organized and equipment accessible. The frame's 100 mm depth from the wall provides ample clearance for cable management, while the two front-panel mounting points securely hold your 1U device. Its robust steel construction resists flexing, and the powder-coated finish protects against scratches and corrosion, ensuring long-term reliability in both residential and commercial settings.

Full specifications

• Rack Units: 1U
• Rack Width: 19 inch
• Mounting Type: Vertical Wall Mount
• Material: Steel
• Colour: Black (RAL 9005)
• Maximum Load Capacity: 15 kg
• Overall Width: 500 mm
• Overall Height: 44 mm (1U)
• Depth from Wall: 100 mm
• Equipment Mounting Holes: Square holes for M6 cage nuts
• Number of Equipment Mounting Points: 2 (front panel mounting)
• Wall Mounting Points: Pre-drilled holes
• Finish: Durable powder-coated
• Installation: Wall-mountable (fasteners not included)
• Application: Small networks, home labs, AV setups

Final note

For a reliable, space-efficient way to mount your 1U equipment, the DSIT DS-WMB1-V delivers the strength and simplicity you need. Its vertical orientation and solid steel build make it a smart choice for any compact installation.
