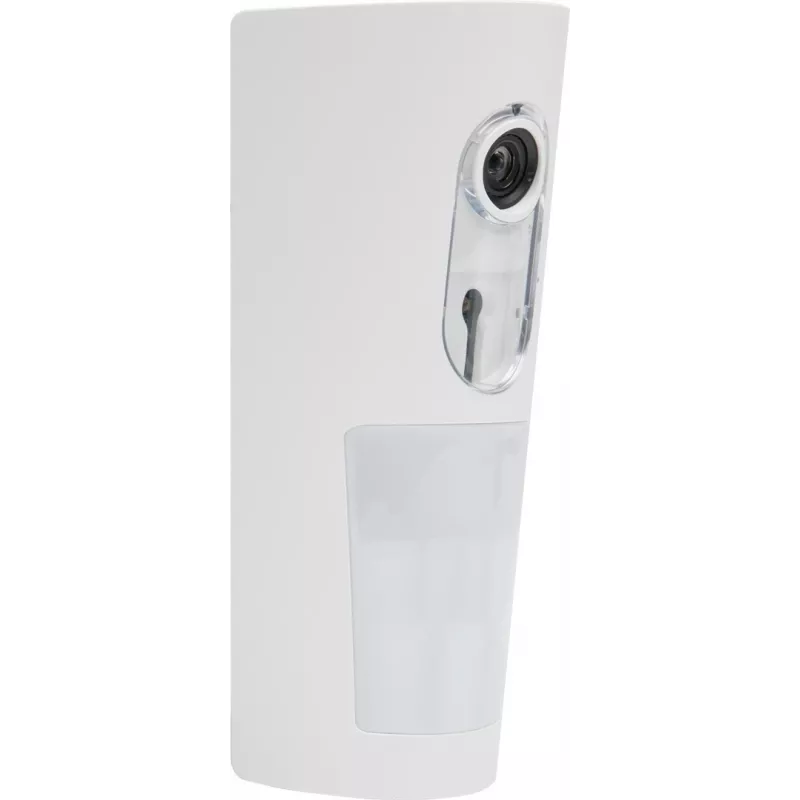

DSC Motion Camera Detector PGP8934P - PowerG PIR με ενσωματωμένη κάμερα

The DSC PGP8934P is a sophisticated motion camera detector that combines a passive infrared (PIR) sensor with an integrated CMOS camera for alarm verification. Utilizing PowerG wireless technology with 128-bit AES encryption, it provides reliable, secure communication with compatible security panels. Ideal for indoor use, this detector captures images upon alarm to reduce false dispatches and enhance security monitoring.

Advantages

Integrated camera provides visual alarm verification, reducing false alarms. PowerG technology ensures robust, encrypted wireless communication. Pet immunity up to 38 kg prevents false triggers from pets. Long battery life of 3-5 years with two CR123A lithium batteries.

Suitable for

• Residential and commercial indoor security systems
• Integration with DSC PowerSeries Neo, PowerSeries Pro, and Qolsys IQ Panel 2/4
• Areas requiring visual verification of alarms

Key specifications

• Detection Technology: Passive Infrared (PIR)
• Wireless Technology: PowerG (Frequency Hopping Spread Spectrum)
• Encryption: 128-bit AES
• Camera Type: Integrated CMOS Camera
• Image Resolution: QVGA (320x240) or VGA (640x480) selectable
• PIR Detection Range: Up to 12 meters (40 feet)
• PIR Field of View: 90 degrees
• Night Vision: Built-in IR Illumination (up to 10m / 33ft)
• Pet Immunity: Up to 38 kg (85 lbs)
• Power Source: 2 x CR123A Lithium Batteries
• Typical Battery Life: 3-5 years
• Installation Environment: Indoor
• Operating Temperature: -10°C to 55°C (14°F to 131°F)
• Compatibility: DSC PowerSeries Neo, PowerSeries Pro, Qolsys IQ Panel 2/4
• Mounting Height: 2.1 - 2.7 meters (7 - 9 feet)
• Alarm Verification: Yes, via captured images
• Tamper Protection: Front and Back
• LED Indicator: Yes (for status and test)

Recommendations

For optimal performance, mount at the recommended height and ensure the area is free from obstructions. Test the detector after installation and periodically verify battery status.
