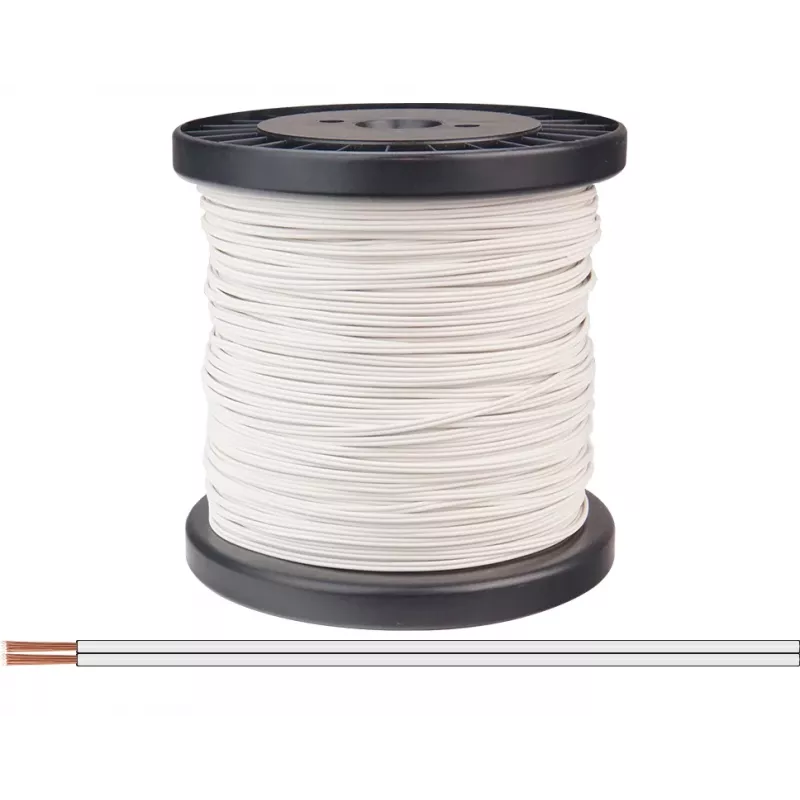

Donau Elektronik 218-55-100 Λεπτό σύρμα 2 x 0,14 mm² Λευκό 100 m

Stranded hook-up wire engineered for reliable low-voltage internal wiring, offering a flexible 2-core design with a 0.14 mm² cross-section per conductor and a generous 100-meter spool length. The white PVC insulation provides clear polarity identification and durable protection for a wide range of electronic and model-building projects.

Advantages

Fine-stranded copper conductors (18 x 0.1 mm) deliver excellent flexibility and resistance to fatigue, making routing in tight enclosures effortless. The PVC jacket withstands temperatures from -30 °C to +70 °C in fixed installations and meets RoHS environmental standards. With a test voltage of 1500 V and rated voltage of 300 V, this wire ensures safe operation in low-voltage circuits.

Suitable for

• Internal wiring of electronic devices and appliances
• Model building, robotics, and DIY electronics
• Low-voltage signal and control circuits
• Prototyping and repair work where flexibility is essential

Key specifications

• Wire type: stranded (Litze), 2 cores
• Conductor cross-section: 0.14 mm² per core
• Conductor construction: 18 x 0.1 mm copper strands
• Insulation: PVC, white
• Outer diameter: 2.4 mm
• Length: 100 m on spool
• Rated voltage U0/U: 300 V
• Test voltage: 1500 V
• Conductor resistance: 138 Ω/km at 20 °C
• Operating temperature (fixed): -30 °C to +70 °C
• RoHS compliant

Recommendations

For projects requiring a compact, flexible, and dependable wire, this Donau Elektronik stranded cable is an excellent choice. Always verify current-carrying capacity for your specific application and use appropriate connectors or soldering techniques to ensure long-term reliability.
