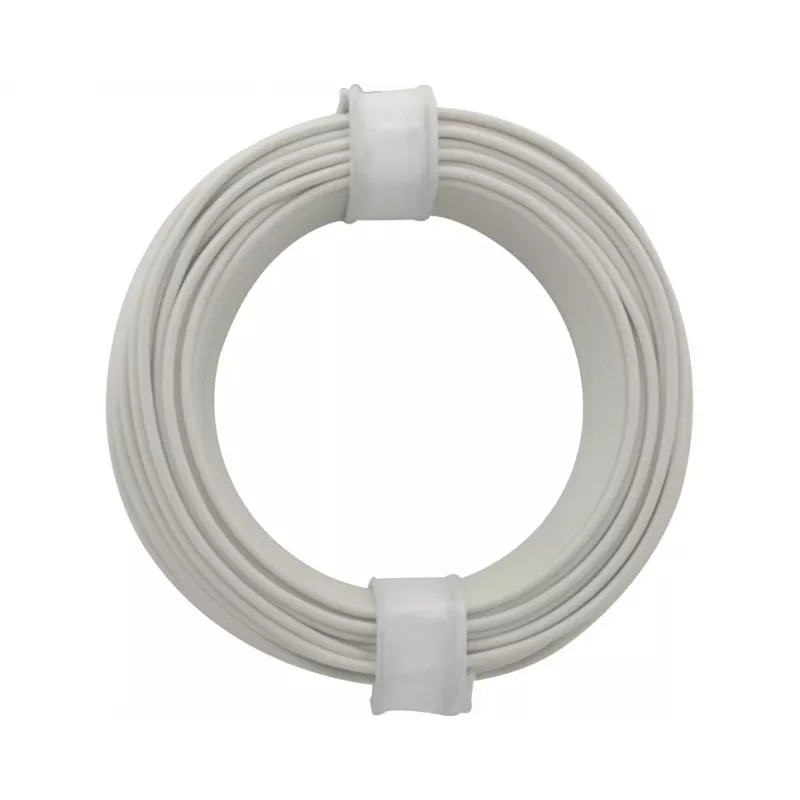

Donau Elektronik 118-5 καλώδιο 1 x 0,14 mm² λευκό 10 m

For electronics hobbyists and model builders, the Donau Elektronik 118-5 stranded wire offers a reliable 10-meter length of flexible white hook-up wire. With a single copper core of 0.14 mm² cross-section, it is suited for low-current signal and control wiring in tight spaces.

Key specifications

• Wire type: stranded (Litze)
• Number of cores: 1
• Conductor cross-section: 0.14 mm² (approx. 26 AWG)
• Length: 10 m
• Colour: white
• Conductor material: copper
• Insulation: PVC
• Rated voltage: 300 V
• Temperature range: -20°C to +80°C
• Outer diameter: 1.2 mm
• Packaging: ring / spool

Why choose it

The fine-stranded copper conductor stays flexible during routing, while the PVC insulation resists abrasion and common workshop chemicals. The white jacket provides clear identification in multi-wire projects.

Ideal use cases

• Prototyping on breadboards and perfboards
• Internal wiring of electronic enclosures
• Model railway and diorama lighting
• Low-voltage signal connections

Good to know

The wire is supplied on a spool for tangle-free dispensing. Rated for 300 V, it is intended for extra-low voltage applications in dry indoor environments.
