Dock laptop ROLINE 12.02.1120

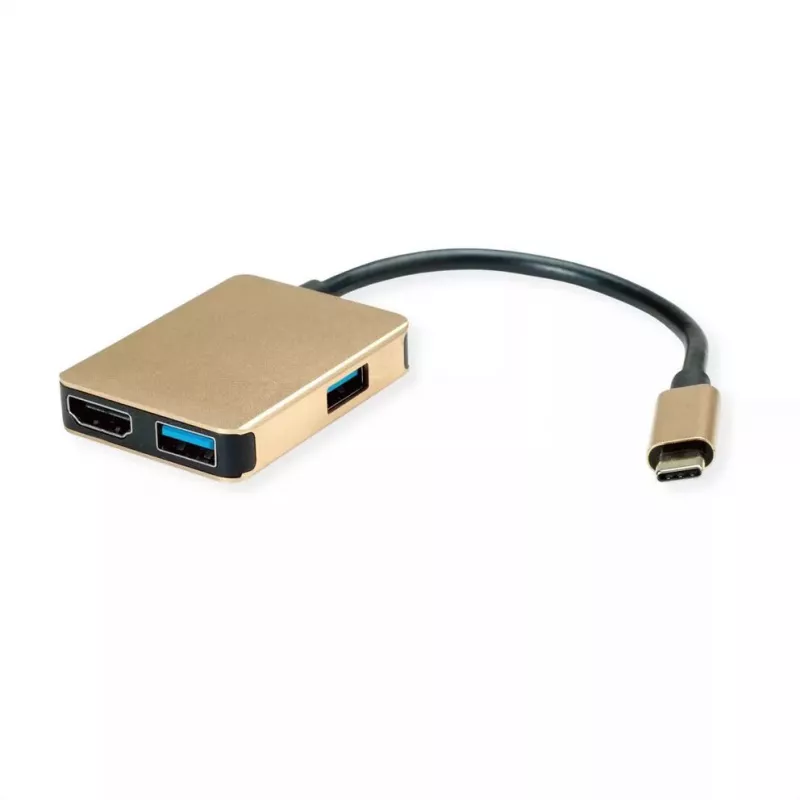

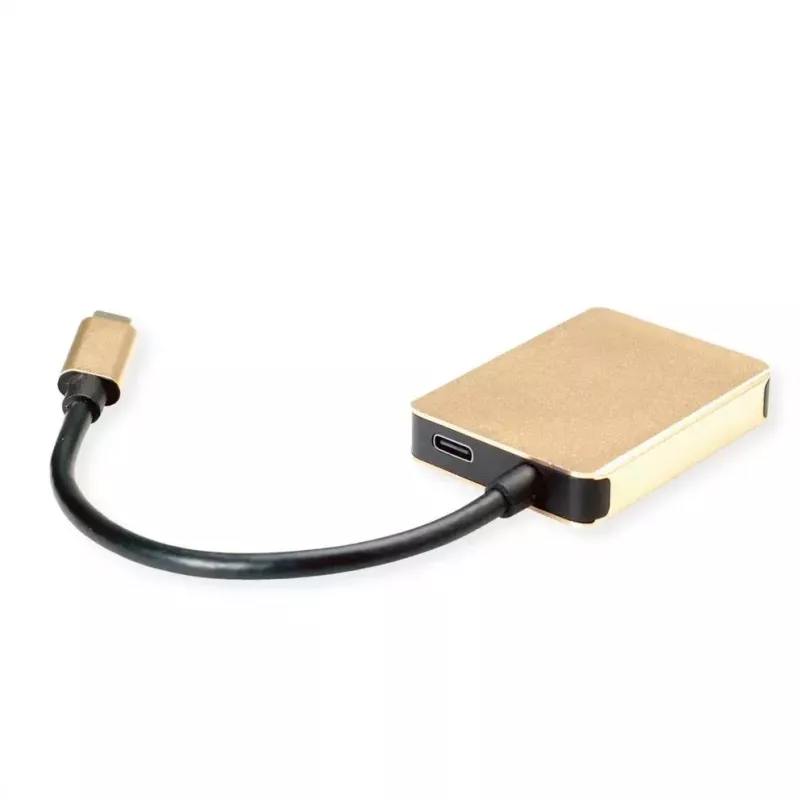

The ROLINE Laptop Dock 12.02.1120 is a wired docking station for MacBooks, Ultrabooks and laptops that provides a compact way to connect everyday workplace peripherals. It features a durable golden aluminium housing, a narrow flat design and a braided cable with gold-coloured shielding to ensure reliable signal transmission. The dock supports a single HDMI output with maximum digital resolution up to 3840 x 2160 @60Hz and connects to the host via a USB 3.2 Gen 2 / USB-C interface.

Advantages

The dock offers a compact aluminium design with gold finishes and reinforced cable braid for durability, gold-plated contacts and shield plates for stable signal transfer, and convenient expansion of a laptop’s connectivity with HDMI, USB-A and USB-C PD ports. It supports high-resolution external displays and USB 3.2 Gen 1 data transfer speeds for compatible devices.

Suitable for

• Connecting a laptop to an external monitor, TV or projector (HDMI up to 3840x2160 @60Hz)
• Attaching USB peripherals such as keyboard, mouse, external HDD/SSD
• Working at a fixed workstation with a single-cable connection to peripherals

Key specifications

• Model: ROLINE 12.02.1120
• Host connection: 1x USB-C (USB 3.2 Gen 2 / USB 3.1 Gen 2)
• Video output: 1x HDMI (up to 3840 x 2160 @60Hz)
• USB ports: 2x USB-A (USB 3.2 Gen 1 / up to 5 Gbit/s)
• Power delivery: 1x USB-C PD port
• Colour / housing: Gold aluminium with black-gold braided cable
• Connectivity: Wired

How to use

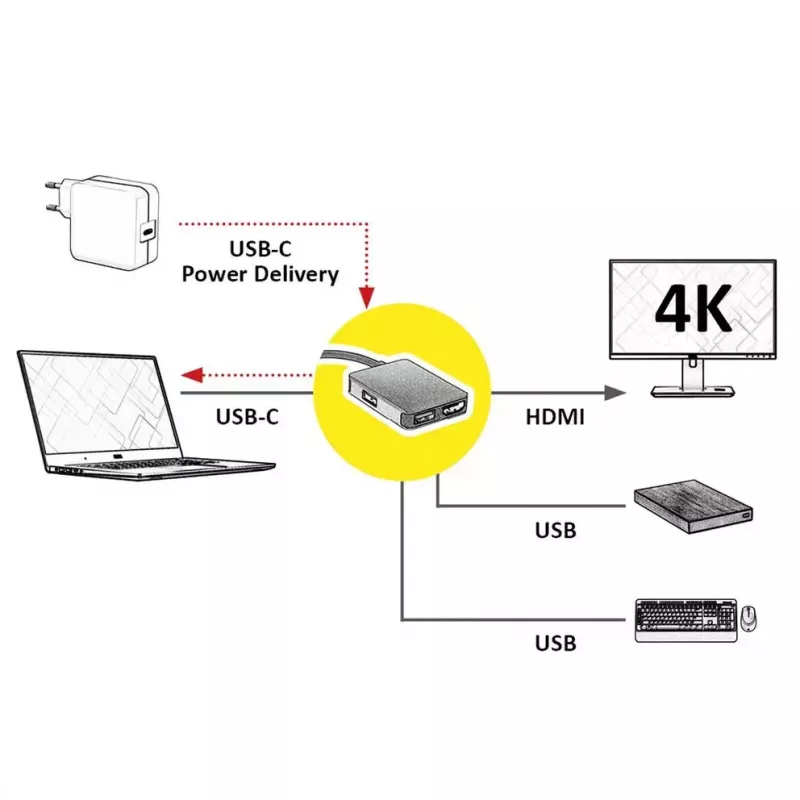

Connect the dock to your MacBook, Ultrabook or laptop using the integrated USB-C cable. Connect an external display to the HDMI port to mirror or extend your screen, and plug USB peripherals into the available USB-A ports. If required, connect a USB-C PD power source to the PD port to supply power to the host device or charge connected accessories. Ensure your host device supports the USB and video modes required for full functionality.

Recommendations

For stable video performance at 3840 x 2160 @60Hz, use a high-quality HDMI cable and ensure the host device’s USB-C port supports DisplayPort Alt Mode and sufficient bandwidth. Keep firmware and drivers up to date on the host system for best compatibility.
