DisplayPort DeLOCK DeLOCK DisplayPort

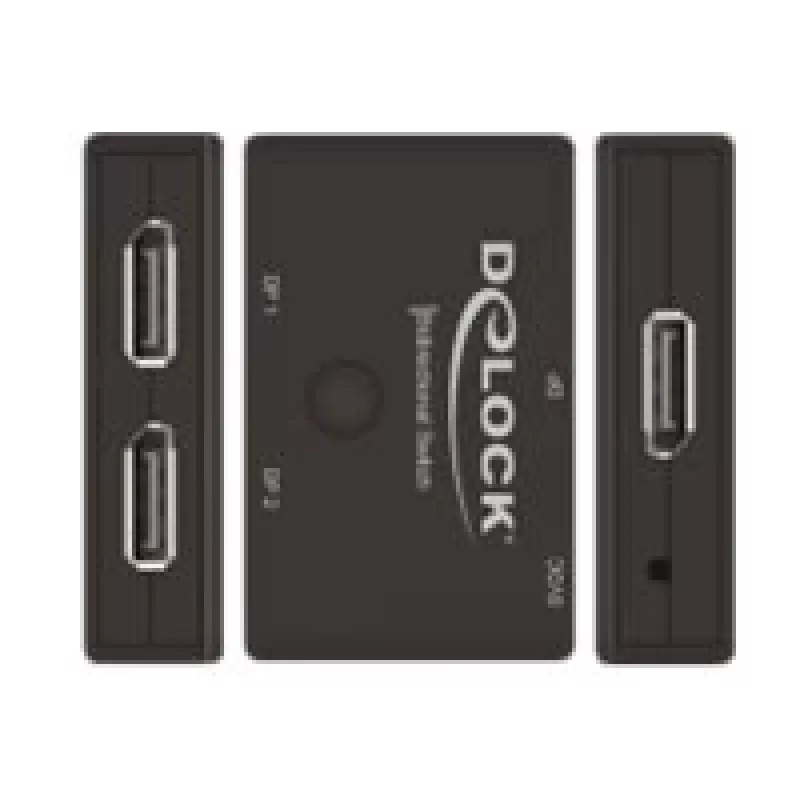

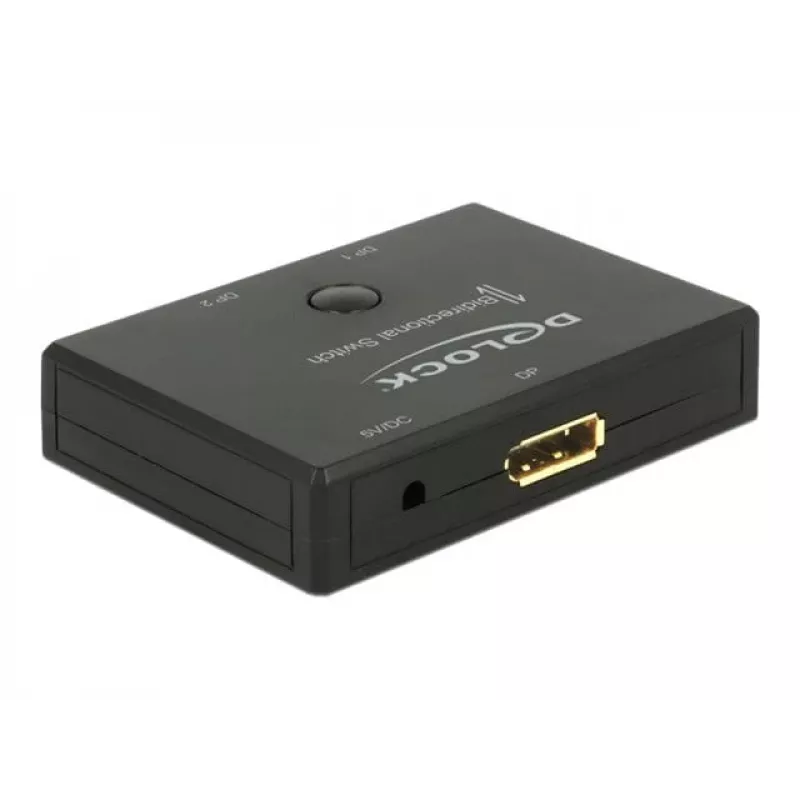

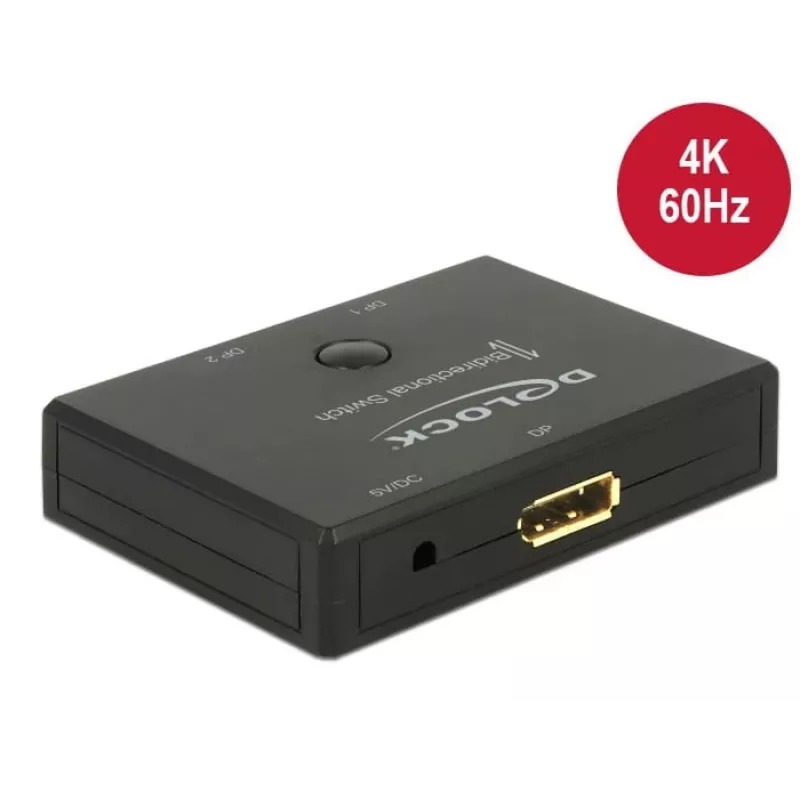

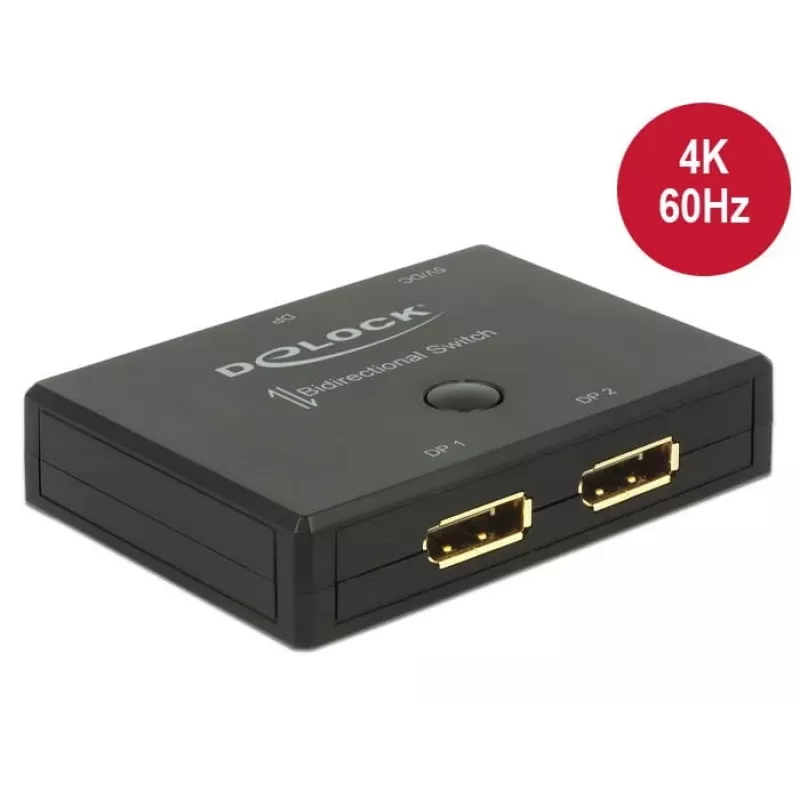

The DeLOCK DisplayPort switch is a manual bidirectional adapter that enables flexible routing of DisplayPort signals between devices and screens. It supports resolutions up to 3840 x 2160 pixels and comes in a compact black plastic housing. The switch allows simple selection of the active input or output via a push button and is supplied with a USB cable; it requires a 5 V AC adapter output.

Advantages

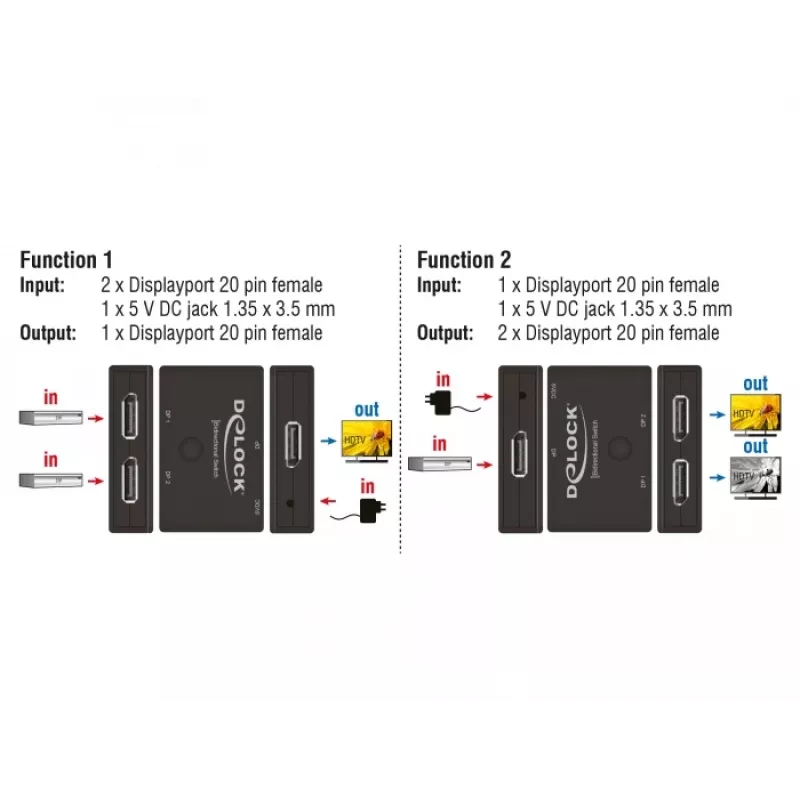

This DisplayPort switch supports 4K resolution (3840 x 2160) for high-quality video transmission and is built in a durable black plastic enclosure. Its bidirectional design lets you either connect up to two source devices to a single monitor or connect one source to up to two displays. Switching between connected devices or screens is done manually with a single push button, providing a straightforward, cable-saving solution without the need for software.

Suitable for

• Connecting two computers or players to one DisplayPort monitor, TV, or projector
• Connecting one DisplayPort source to two different screens (selectable output)
• Office workstations where multiple PCs share a single DisplayPort display
• Presentation setups with a single source and multiple possible screens

Key specifications

• Video port type: DisplayPort
• Maximum resolution: 3840 x 2160 pixels
• Colour: Black
• Material: Plastic housing
• Dimensions (W × D × H): 820 mm × 620 mm × 170 mm
• Power: requires 5 V AC adapter output; includes USB cable
• MPN: 18750, EAN: 4043619187508

How to use

Connect the DisplayPort cables from your source devices and displays to the corresponding DisplayPort ports on the switch. Use the included USB cable and a suitable 5 V adapter to power the unit if required. Press the push button on the device to select which source is routed to the display or which display receives the signal from the source. The switch does not support simultaneous output to multiple screens; only one connection is active at a time.

Recommendations

For reliable 4K output, use high-quality DisplayPort cables and ensure the connected devices and displays support the target resolution. Place the switch in a ventilated area and avoid excessive bending of cables to maintain signal integrity.
