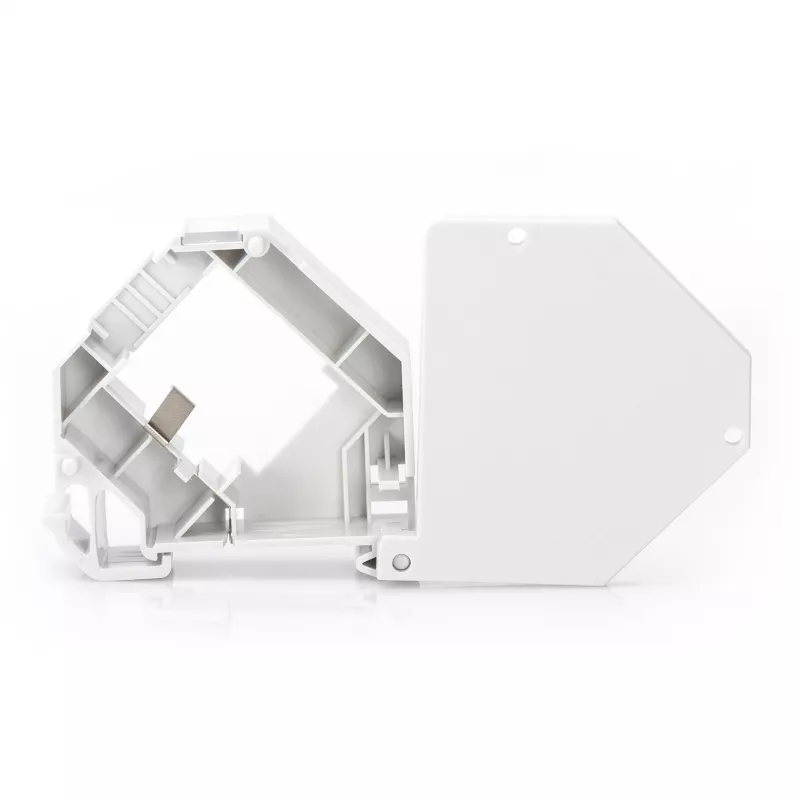

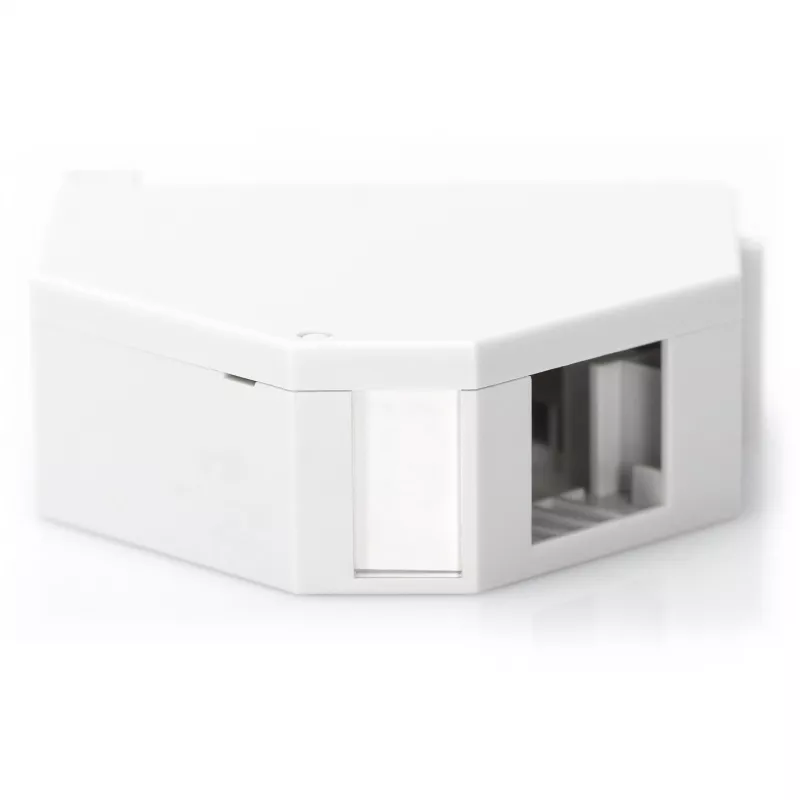

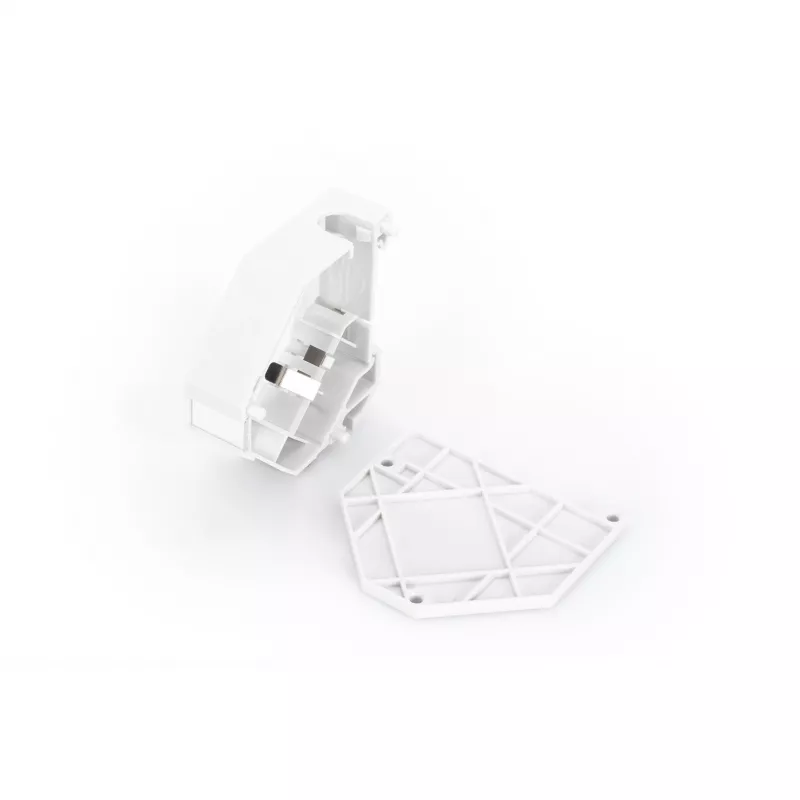

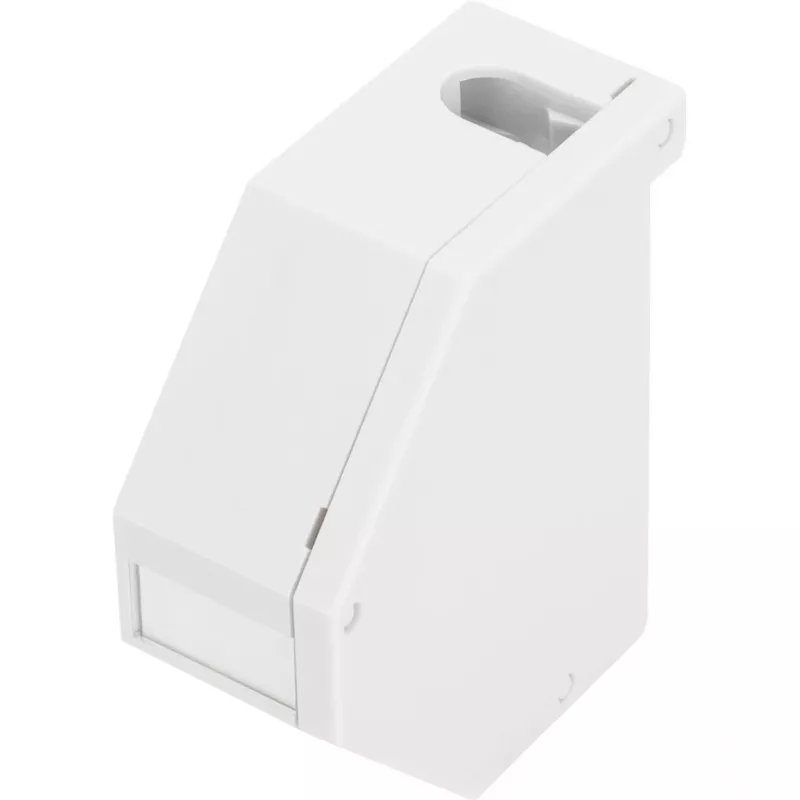

DIGITUS προσαρμογέας ράγας DIN για 1x μονάδα Keystone, IP20

For installers and integrators who need a clean, professional way to mount a single Keystone module inside a control cabinet, the DIGITUS AN-25186 DIN rail adapter eliminates makeshift brackets and cable ties. It snaps onto a standard 35 mm DIN rail and holds one Keystone jack securely, turning any data outlet into a tidy, serviceable termination point.

Highlights

• Accepts one standard Keystone module (19.2 x 14.9 mm opening) for RJ45, USB, HDMI, or fibre couplers
• Tool-free clip-on mounting to 35 mm DIN rail (EN 60715) — no screws or drilling
• Compact, light grey ABS housing blends into industrial and office enclosures
• IP20 protection suitable for indoor control panels and network cabinets
• RoHS and REACH compliant for safe use in commercial environments

In daily use

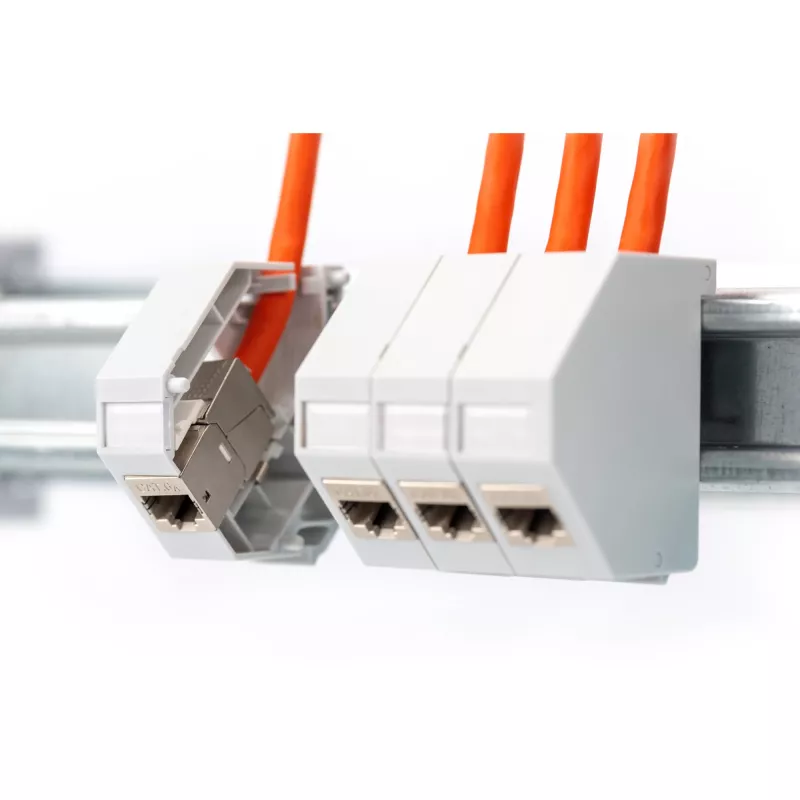

This adapter is a practical solution for structured cabling in automation, building management, or any DIN rail installation. The Keystone module snaps in from the front, and the entire assembly clips onto the rail in seconds. Its slim profile saves space, and the light grey colour matches most DIN rail terminal blocks and patch panels. The ABS plastic is durable enough for frequent handling yet light enough for dense rail layouts.

Full specifications

• Brand: DIGITUS
• Model: AN-25186
• MPN: AN-25186
• EAN: 4016032372981
• Product type: DIN rail adapter
• Supported module type: Keystone module
• Number of modules: 1
• Mounting standard: 35 mm DIN rail (EN 60715)
• IP protection class: IP20
• Material: ABS plastic
• Colour: Light grey
• Installation method: Snap-in (Keystone), clip-on (DIN rail)
• Application area: Network infrastructure, industrial automation, control cabinets
• Operating temperature: -10 °C to 50 °C
• Storage temperature: -20 °C to 70 °C
• Relative humidity: 10 % – 90 % RH (non-condensing)
• Keystone module opening size: Standard (19.2 x 14.9 mm)
• Housing design: Compact, modular
• Standards compliance: RoHS, REACH

Final note

When you need a single Keystone termination on a DIN rail without extra hardware, the DIGITUS AN-25186 is the straightforward, reliable choice.
