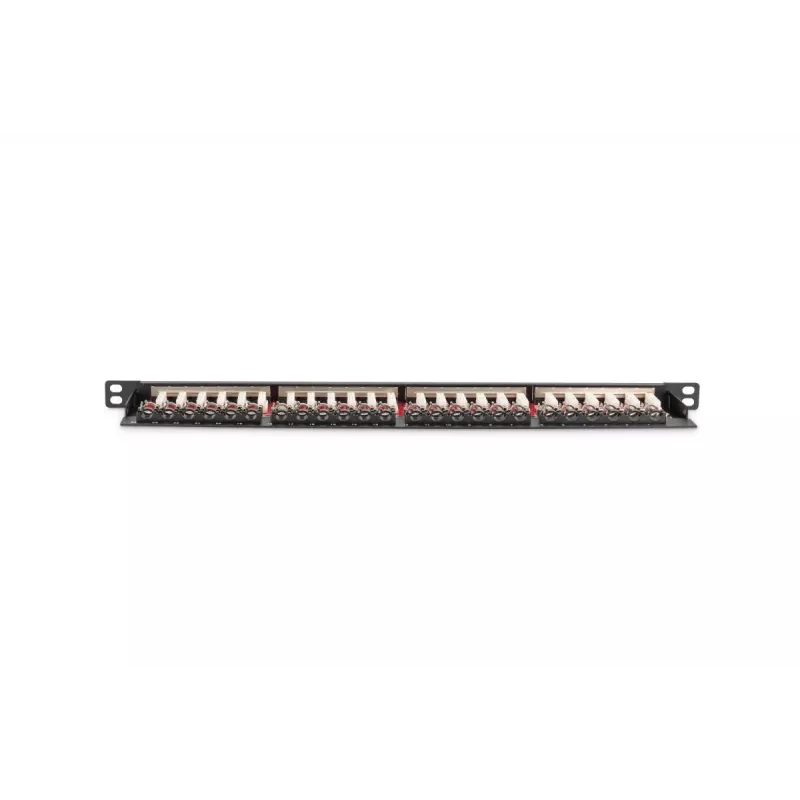

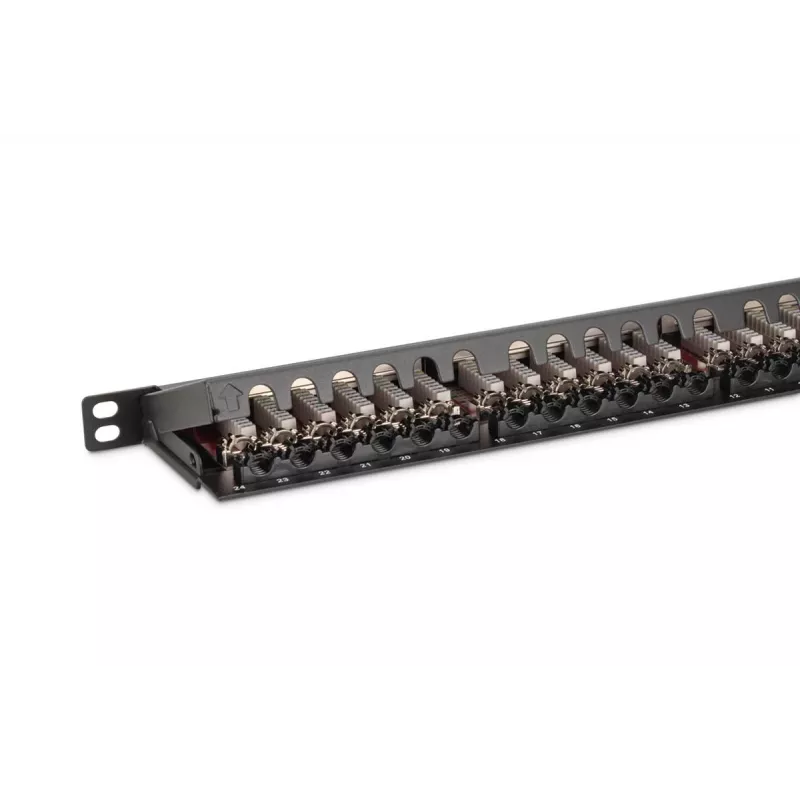

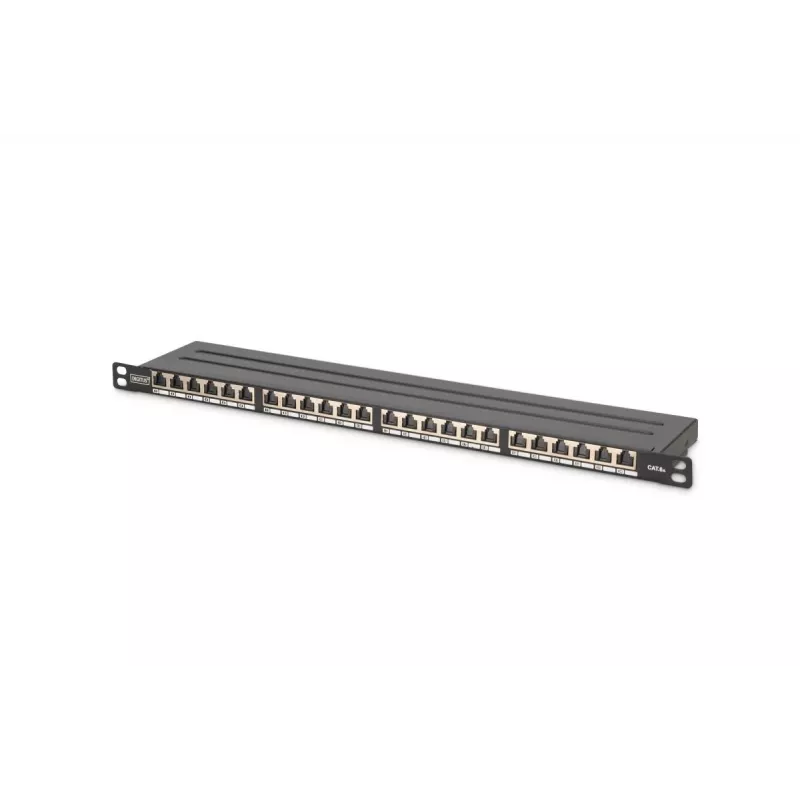

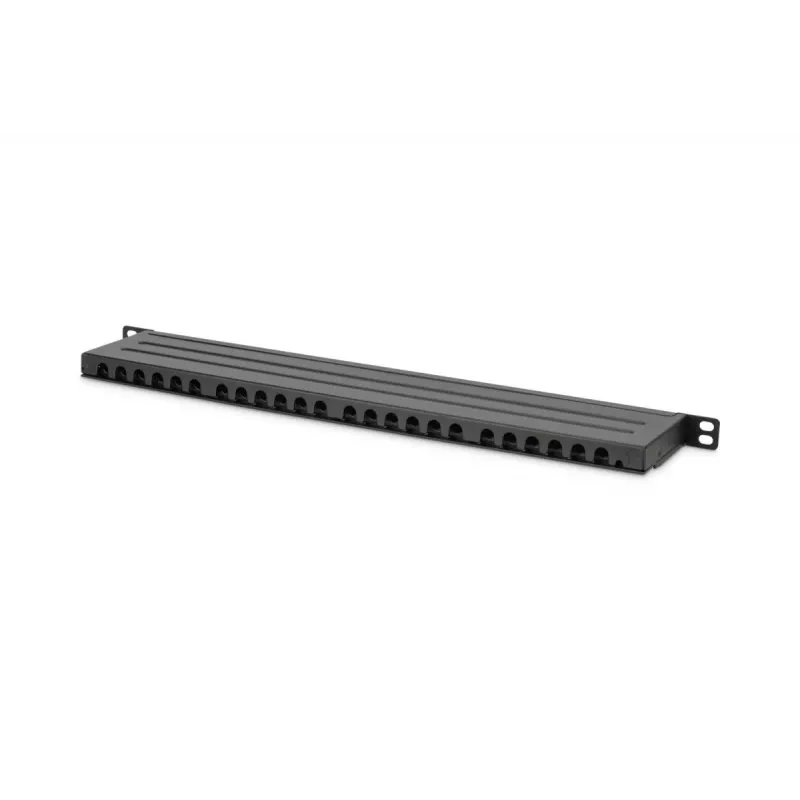

DIGITUS Patchpanel CAT6a θωρακισμένο 24-Port 0,5HE (dn91624sslea)

The DIGITUS® Patch Panel CAT 6A Class EA High Density Shielded is a 24-port, 0.5U rack panel designed to maximise port density while maintaining shielded connections for Cat6a networks. Constructed from black SECC material and equipped with RJ45 sockets, the panel supports industrial cabling standards and offers compact dimensions (140 mm width, 530 mm depth) and light weight (approximately 1.5 kg) for easy installation in standard 19" racks.

Advantages

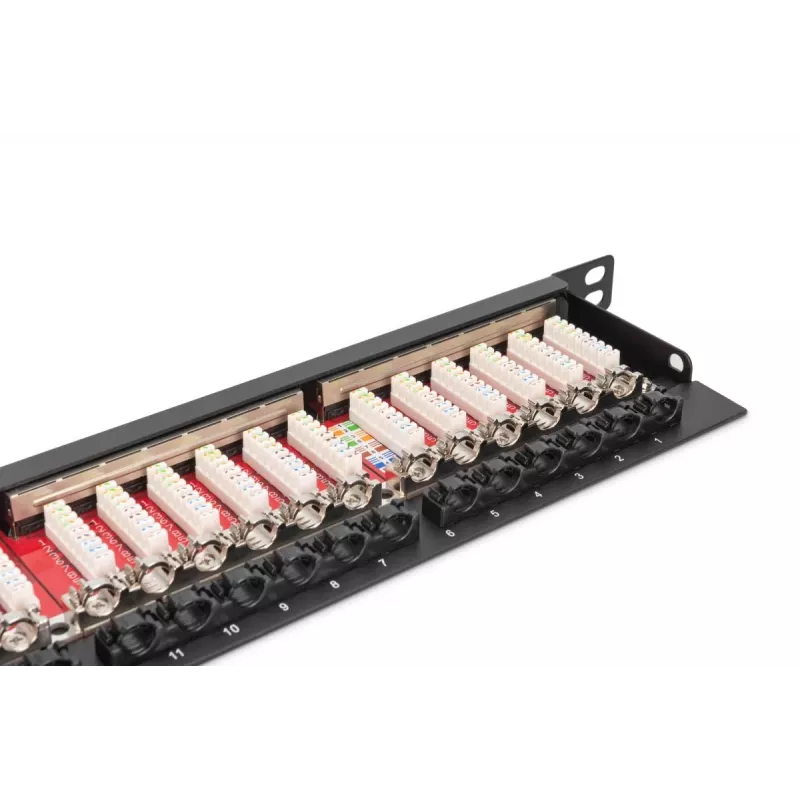

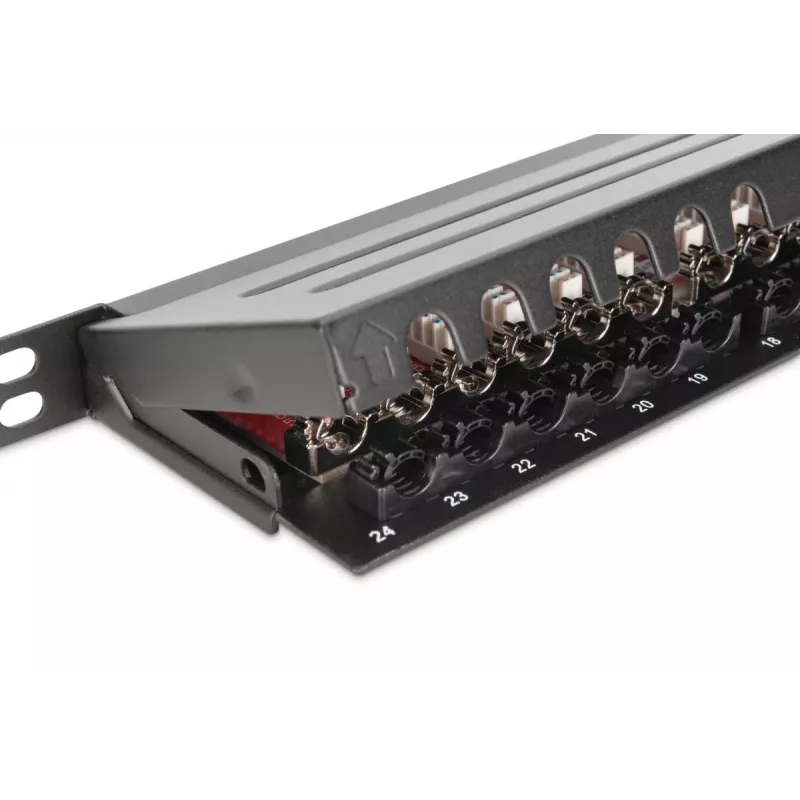

This 0.5U patch panel provides high port density—two 24-port panels can present up to 48 ports in a single 1U space—while shielded RJ45 sockets and 360° shield contacting help maintain signal integrity. Dust protection shutters on each socket protect unused ports. The unit includes a reclosable cable clamp for fixing and routing cables and a quick-release fastener to secure the housing cover, simplifying maintenance and cable management.

Suitable for

• Data centres and server rooms with limited rack space
• High-density LAN installations requiring Cat6a/Class EA performance
• Shielded cabling environments where EMI protection is needed
• Racks where compact, lightweight components are preferred

Key specifications

• Model: DN-91624S-SL-EA
• Standard: Cat 6A / Class EA
• Ports: 24 RJ45 shielded sockets
• Height: 0.5U
• Material / colour: SECC, black
• Dimensions (W x D): 140 mm x 530 mm
• Weight: approx. 1.5 kg
• Shield contacting: 360°
• Features: dust protection flaps, reclosable cable clamp, quick-release cover fastener

How to use

Mount the patch panel in a standard 19" rack using appropriate rack screws. Terminate Cat6a cables to the RJ45 sockets following the T568A or T568B wiring scheme and ensure shield continuity by connecting cable shields to the panel and rack grounding system. Use the reclosable cable clamp to fix and route cables neatly; close the dust protection flaps on unused ports to prevent contamination. Secure the housing cover with the quick-release fastener after installation.

Recommendations

For optimal performance, use shielded Cat6a cabling and maintain consistent grounding across patch panels and racks. Limit cable bend radius according to Cat6a guidelines, and inspect dust protection flaps regularly in dusty environments.
