Hub διασύνδεσης Digi AW24-G300

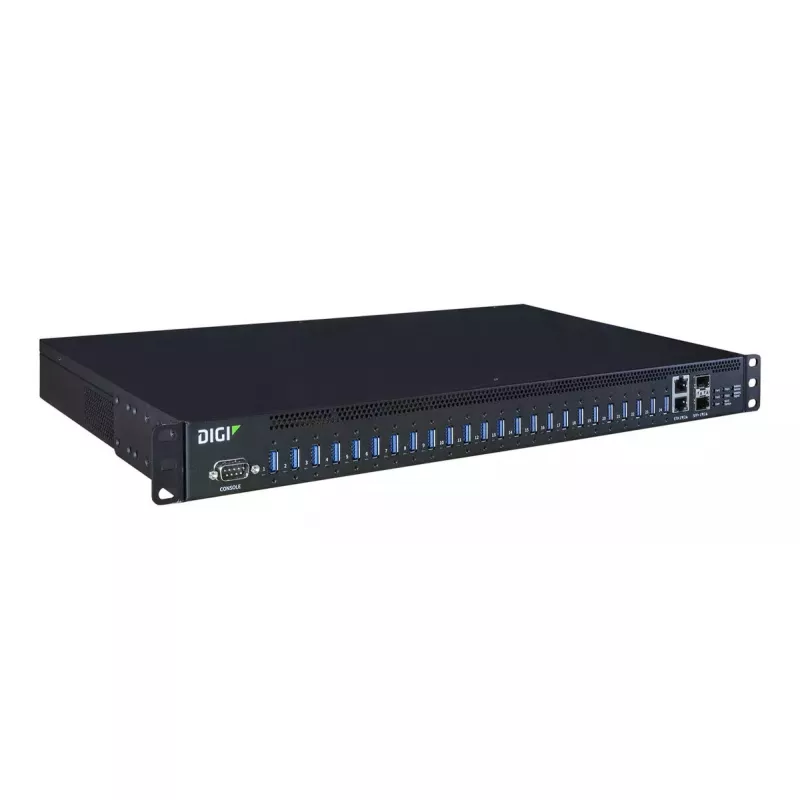

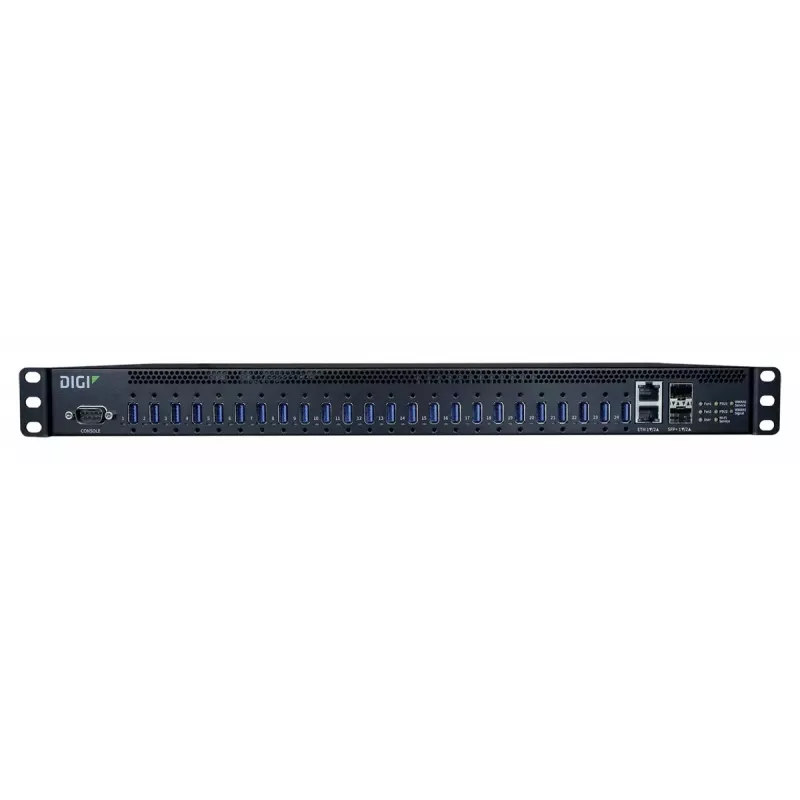

The Digi AW24-G300 is an industrial-grade interface hub that provides 24 front-facing USB 3.1 Gen 1 Type-A ports for high-speed connection of USB peripherals across enterprise and IoT deployments. Designed for rack mounting, the unit includes Gigabit Ethernet connectivity and optional SFP+ support in the Plus family for higher-speed or fiber links. The hub supports centralized management and monitoring to simplify deployment and maintenance of remote and local USB devices.

Advantages

The AW24-G300 offers USB 3.1 Gen 1 data rates and multiple Type-A ports in a rack-mountable 1U form factor, enabling consolidated connectivity for many USB devices. Built-in Gigabit Ethernet provides reliable network integration and supports redundancy and bonding, while compatibility with remote management platforms reduces downtime and streamlines configuration. The unit is CE and FCC certified and accepts wide-range AC input voltage for versatile installations.

Suitable for

• Enterprise server rooms and rack-mounted network closets
• IoT gateway and device aggregation in industrial facilities
• Remote device access and centralized peripheral management
• Environments requiring many USB Type-A connections (e.g., card readers, scanners, sensors)

Key specifications

• Model: DIGI AW24-G300
• Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
• Ports quantity: 28 (24 front-facing USB 3.1 Gen 1 ports plus additional internal/auxiliary ports as configured)
• Data transfer rate: up to 10000 Mbit/s (Gigabit/10 Gigabit Ethernet family support)
• Network: Gigabit Ethernet (with Plus series SFP+ options for higher speed/fiber)
• Power source: AC, input 100–240 V; power consumption: 157.7 W
• Dimensions: 450.9 x 255 x 44.5 mm (rack-mountable)
• Weight: 4.7 kg
• Certifications: CE, FCC
• Colour: Black

How to use

Mount the AW24-G300 in a standard 19-inch equipment rack and connect the unit to your network using the Gigabit Ethernet port; if fiber or higher-speed links are required, use an SFP+ port on supported Plus models. Connect USB Type-A peripherals to the front ports and apply AC power within the 100–240 V range. Use the web-based management interface or Digi Remote Manager to configure network, USB port assignments and monitor device status across the deployment.

Recommendations

For reliable operation in enterprise and industrial environments, install the hub in a ventilated rack location, ensure proper grounding, and use managed network switches to take advantage of bonding and redundancy features. Regularly update firmware via Digi Remote Manager and verify power provisioning for connected devices to avoid overcurrent conditions.
