Διακόπτης πίεσης DELOCK Easy 45 2P 250V 10A λευκό, 45×45×37 mm

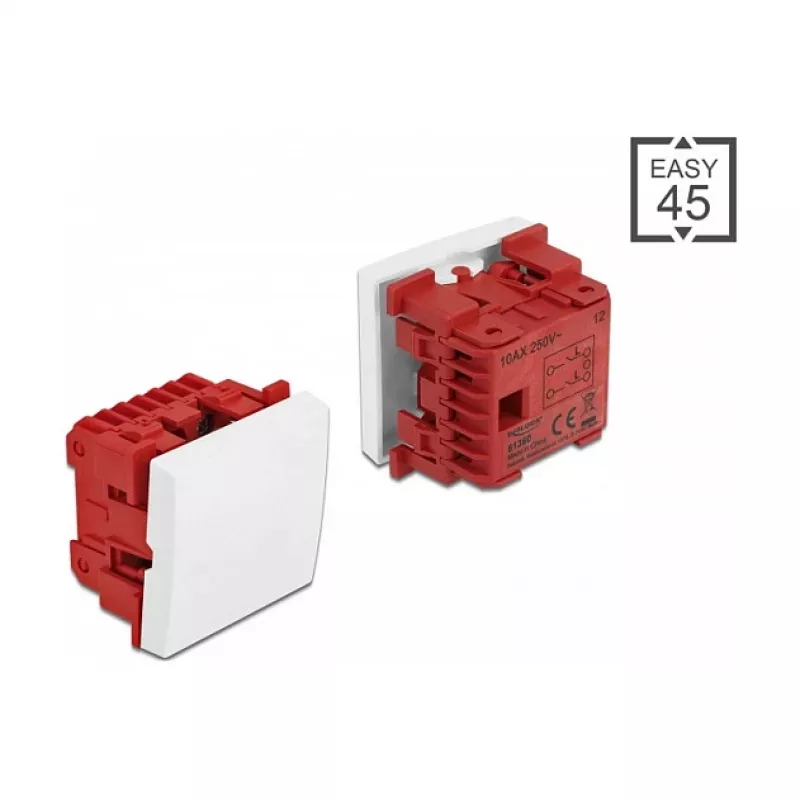

DELOCK Easy 45 pushbutton switch, 2-pole (2P) design, provides simple on/off control for AC circuits up to 250 V with a nominal current rating of 10 A. The compact white actuator measures 45 × 45 × 37 mm and is intended for panel- or device-mounted installations. The switch is supplied single-piece and features a snap-in mechanism that secures the unit in place while allowing removal when required. The two-pole configuration enables galvanic separation of two circuits for independent switching of lighting, small appliances or control circuits. The Easy 45 family is a modular system that supports optional modules such as sockets, HDMI or USB connections and can be mounted in standard module holders or cable ducts to integrate electrical and network interfaces.

Advantages

The DELOCK Easy 45 switch offers a compact footprint and a standardized form factor compatible with modular Easy 45 holders and cable ducts. Its 2-pole construction allows independent, galvanically separated switching of two circuits, and the snap-in mounting simplifies installation and removal without additional tools. Rated for 250 V AC and 10 A nominal current, the switch is suitable for common lighting and small appliance applications.

Suitable for

• On/off control of room lighting
• Switching small household or office appliances
• Control circuits in devices and panels
• Modular installations with Easy 45 holders and cable ducts

Key specifications

• Poles: 2-pole switching for galvanic separation
• Rated voltage: 250 V AC
• Nominal current: 10 A
• Actuator color: white
• Overall dimensions: 45 × 45 × 37 mm
• Mounting: snap-in for panel or device installation
• Package: single-piece

How to use

Prepare the mounting opening in the panel or module holder compatible with the Easy 45 standard and insert the switch until the snap-in mechanism engages. Connect the supply conductors and load conductors to the appropriate terminals according to the wiring diagram and safety standards, ensuring power is switched off during installation. Once wired and secured, restore power and operate the actuator to switch the connected circuits on and off. For removal, switch off power and depress the retaining clips to release the snap-in mount and withdraw the module.

Recommendations

Use the switch within its rated voltage and current limits (250 V AC, 10 A) and mount it in compatible Easy 45 holders or approved panel cutouts. Ensure all electrical work is performed following applicable safety regulations and, if necessary, by a qualified electrician to maintain galvanic separation and reliable operation.
