Διακόπτης KVM VALUE Star 1U 2 PCs HDMI USB

The VALUE Star 1U KVM Switch enables control of two computers from a single HDMI monitor and a single USB keyboard/mouse console. Designed in a compact 1U form factor, the switch supports high-definition HDMI video and plug-and-play operation, making it suitable for server racks, small data centres and shared workstations. The unit is powered via USB and includes KVM cables and a user manual.

Advantages

This 2-port USB KVM switch provides straightforward switching between two PCs using front-panel push buttons or keyboard hotkeys and also offers an auto-scan function for monitoring connected systems. It supports resolutions up to 1920 x 1200 and features LEDs for status monitoring, hot-swapping capability, and full plug-and-play compatibility. The compact 1U design saves rack space and the unit is supplied with the required KVM cables.

Suitable for

• Server racks and network cabinets
• IT maintenance and administration workstations
• Multimedia workstations using HDMI displays
• Small offices where two PCs share one monitor and input devices

Key specifications

• Model: VALUE Star 1U
• Ports: controls 2 computers
• Video interface: HDMI
• Console connectors: 1× HDMI, 2× USB (keyboard, mouse)
• Computer connectors: 2× HDMI, 1× USB (keyboard/mouse)
• Maximum resolution: 1920 × 1200 (nominal)
• Switching: push buttons and keyboard hotkeys; Auto-Scan supported
• Power: self powered through USB connection (no external adapter)
• Accessories: KVM cables (each 1.2 m), manual
• Colour: Black

How to use

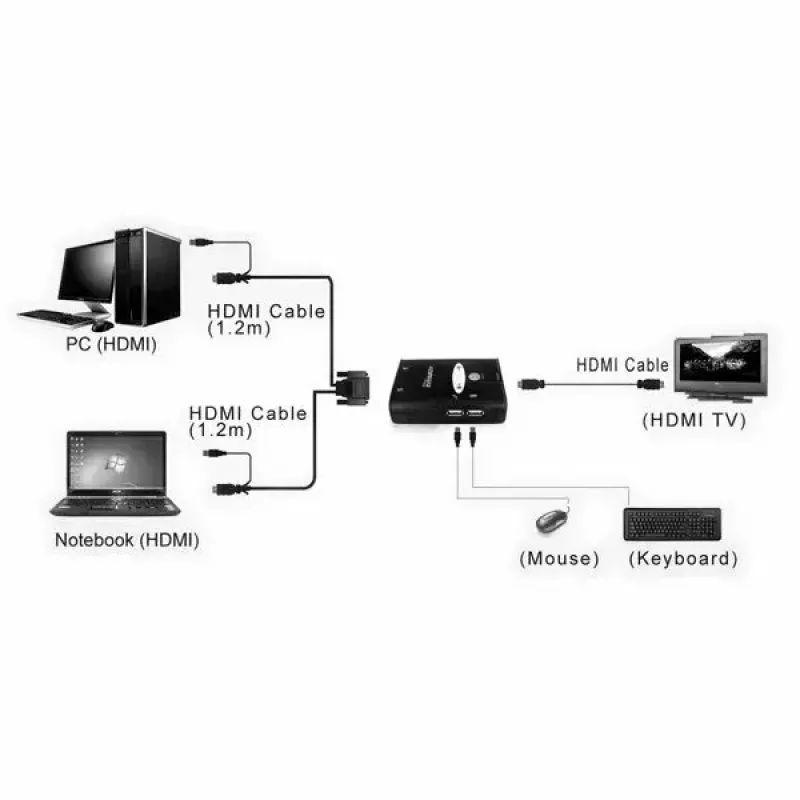

Connect the HDMI and USB cables from each computer to the corresponding computer-side ports on the KVM switch, then connect your HDMI monitor and USB keyboard/mouse to the console-side ports. Power is provided via USB when the console or a connected computer supplies USB power. Use the front-panel buttons or keyboard hotkeys to switch control between the two connected PCs. The auto-scan feature can be enabled to cycle through connected systems for monitoring.

Recommendations

For reliable HDMI video and USB peripheral operation, use the supplied KVM cables and ensure connected hosts support standard USB keyboard/mouse HID profiles. Avoid excessive cable lengths beyond the supplied 1.2 m KVM leads to maintain signal integrity for high-definition display resolutions.
