Διακόπτης HDMI 2 θυρών Manhattan 207850

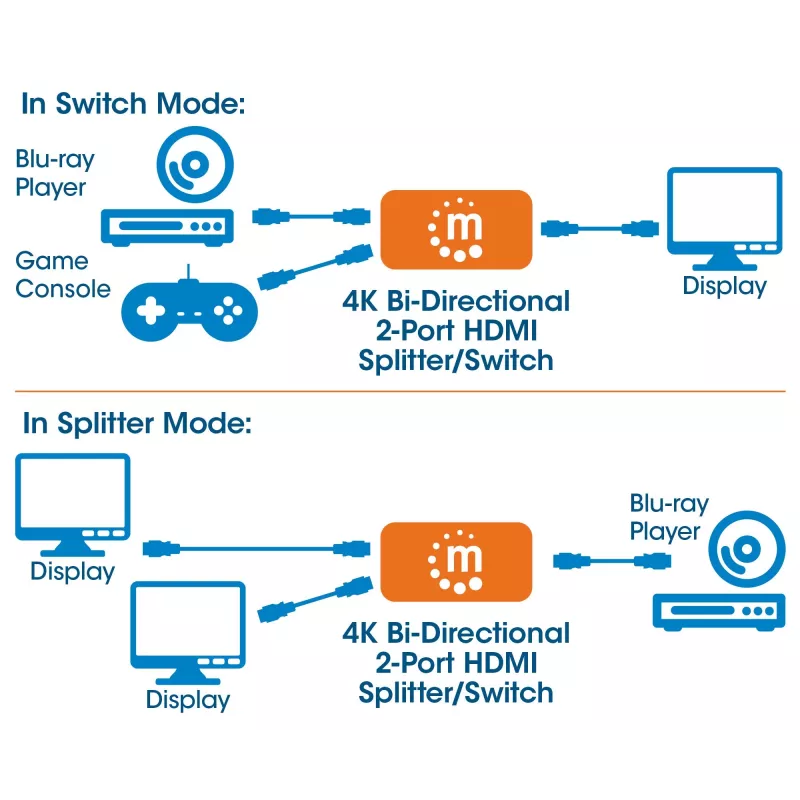

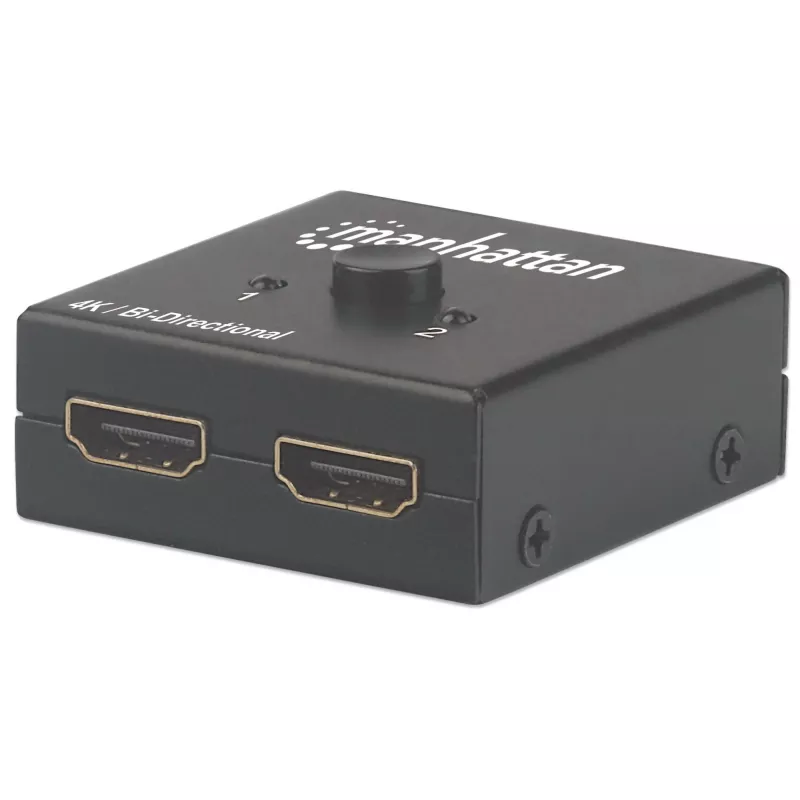

The Manhattan HDMI Switch 2-Port (model 207850) lets you either share one Ultra-High-Definition (UHD) HDMI source between two displays or connect two UHD sources and switch between them on a single display. The compact metal unit supports up to 4K@30Hz, 3D video, Deep Colour and multichannel audio formats including LPCM, DTS and Dolby TrueHD. Power is drawn from connected HDMI sources so no external power adapter is required.

Advantages

This bi-directional 2-port HDMI splitter switch provides simple manual selection without software configuration and installs by connecting HDMI cables (not included). Full compliance with HDMI and HDCP 1.4 ensures reliable signal transmission and image quality. The device is compact (52 × 49 × 20 mm), made of durable metal, requires no external power, and is backed by a 3-year warranty. CE and FCC certifications provide regulatory compliance for safe use.

Suitable for

• Sharing a single 4K@30Hz source between two displays
• Connecting two HDMI sources to one display and manually switching between them
• Home AV setups, small offices, or meeting rooms requiring simple source switching
• Setups using 1080p, 2160p (4K) and 3D video formats

Key specifications

• Model: Manhattan 207850
• Ports: 2× HDMI (bi-directional)
• Supported resolution: up to 4K@30Hz (2160p) and 1080p
• HDMI/HDCP: HDMI compliant, HDCP 1.4
• Audio: LPCM, DTS, Dolby TrueHD supported
• Dimensions: 52 × 49 × 20 mm
• Weight: 0.1 kg
• Power: drawn from HDMI sources (no external adapter)
• Material/colour: Metal housing, black
• Certifications/Warranty: CE, FCC, 3-year warranty

How to use

Connect the HDMI cables between your source(s) and the Manhattan HDMI Switch and then connect the switch to the display(s) as required. Use the manual selection button on the unit to choose which source or display is active. There is no additional software or configuration needed; the switch draws power from the connected HDMI source(s). Ensure compatible HDMI cables are used and that connected devices support the desired resolution and audio formats.

Recommendations

For reliable 4K@30Hz performance, use high-quality HDMI cables rated for 4K and verify that both source and display support HDCP 1.4. Avoid long cable runs where possible and place the switch near the active devices to ensure stable signal integrity.
