Διαχειριζόμενο L2+ Gigabit Ethernet Switch PLANET MGSW-24160F

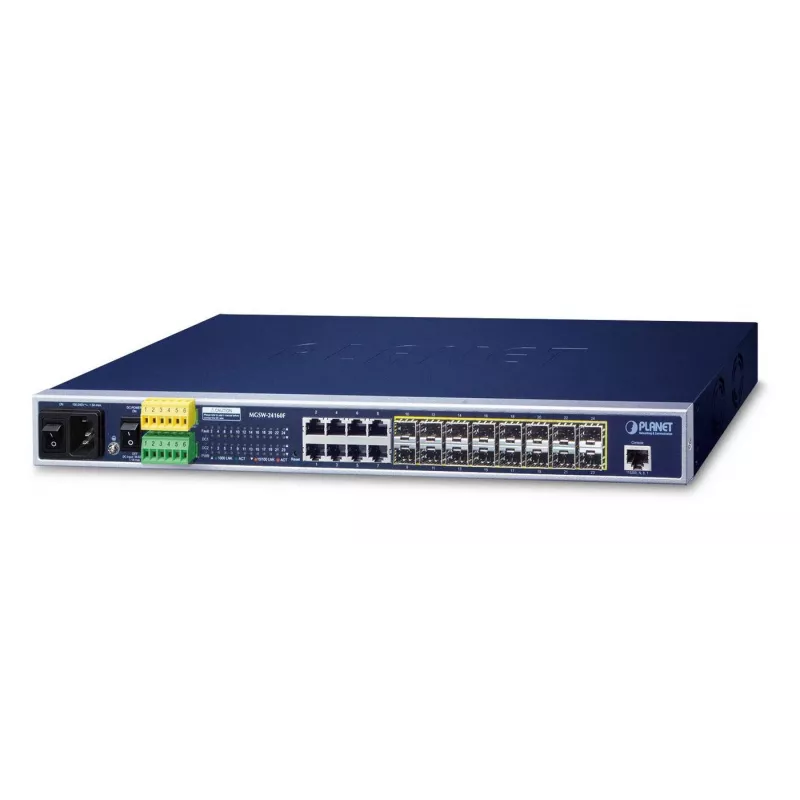

PLANET MGSW-24160F is a managed L2+ Gigabit Ethernet switch designed for long-reach networks in enterprises, telecoms, campuses and service providers. It provides 16 dual-speed 100/1000 Mbps SFP fiber ports and 8 10/100/1000 Mbps RJ-45 ports in a rugged 1U rack-mountable case, delivering a non-blocking switch fabric with up to 48 Gbps wire‑speed throughput and operating reliably between 0 and 60 °C. Front access design simplifies wiring and maintenance in cabinet installations.

Advantages

The switch supports flexible fiber extension via 16 mini-GBIC slots that accept 100BASE-FX and 1000BASE-SX/LX SFP modules, covering multimode distances from 550 m to 2 km and single-mode/WDM distances up to 120 km. It includes SFP DDM for real-time transceiver monitoring, AC (100–240 V) and DC (36–60 V) redundant power inputs for continuous operation, digital input/output for external alarm integration, and a fault alarm feature for faster troubleshooting. The MGSW-24160F supports IPv4/IPv6 dual stack and offers Layer 3 IPv4/IPv6 VLAN routing, extensive Layer 2 features, and comprehensive Layer 2–4 ACLs for edge security.

Suitable for

• Enterprise core and distribution switching
• Telecom and ISP long‑reach links
• Campus networks and data center edge
• FTTx and metro fiber deployments

Key specifications

• Ports: 16 SFP (100/1000 Mbps dual-speed), 8 RJ-45 (10/100/1000 Mbps)
• Switching capacity: 48 Gbps
• MAC address table: 16,000 entries
• Power: 1× AC 100–240 V, 1× DC 36–60 V (redundant)
• Environment: 0 °C to 60 °C operating temperature
• Management: Web, Console, SNMP (supports SNMPv3), SSH, SSL, Telnet
• Layer 2/Layer 3 features: VLAN, Q-in-Q, private VLAN, MSTP, link aggregation, IPv4/IPv6 VLAN routing
• Security: ACL (L2–L4), 802.1X, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection

How to use

Install the MGSW-24160F in a standard 1U rack using the front-access orientation for convenient cable routing. Populate the SFP slots with appropriate SFP transceivers selected for required distance and fiber type (multimode or single-mode/WDM). Connect RJ-45 devices to the Gigabit ports and configure management settings via Web GUI, console or SNMP management software. Configure VLANs, link aggregation, QoS and security policies according to network design, and enable redundant power by connecting both AC and DC supplies if required.

Recommendations

Use SFP modules that support DDM to allow real-time monitoring of optical parameters. For critical installations enable redundant power and configure the fault alarm plus digital I/O to integrate external alarm systems. Apply IPv6/IPv4 dual-stack and Layer 3 VLAN routing when migrating to IPv6 to avoid replacing existing infrastructure.
