DELTA TR-1RJ Video Balun Σετ Πομποδέκτη (DC) Kit

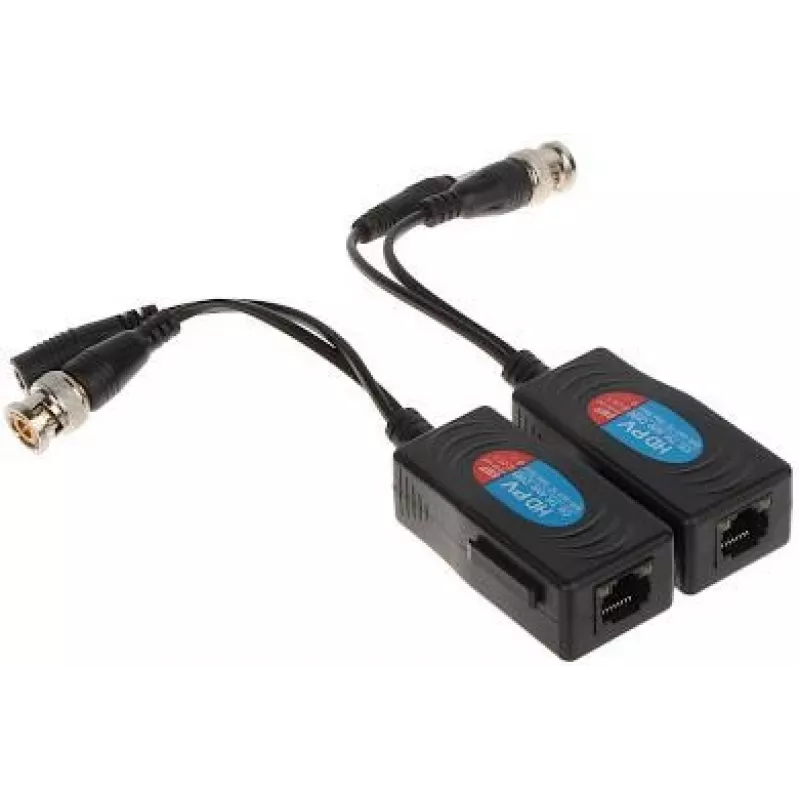

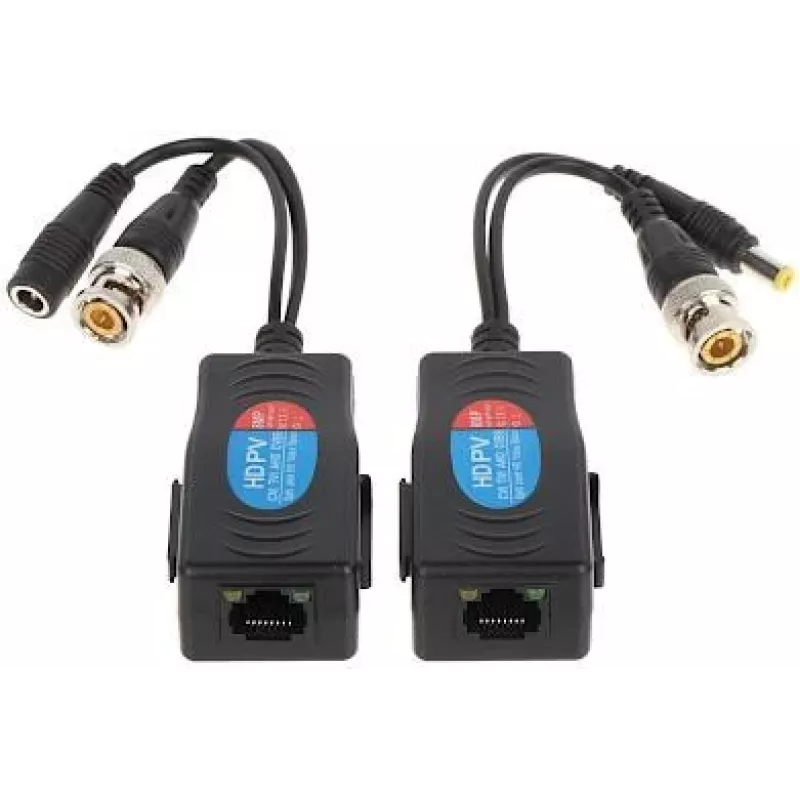

The DELTA TR-1RJ Video Balun Transceiver Set is a professional-grade solution for transmitting video and power over a single UTP cable. Designed for security camera systems, this kit includes both transmitter and receiver units, enabling seamless integration with AHD, HD-CVI, HD-TVI, and CVBS analog video signals. Supporting resolutions up to 8MP (4K), it delivers high-quality video transmission over distances up to 400m for CVBS and 250m for HD signals. The integrated power pass-through capability allows up to 30V DC at 1A, simplifying installation by eliminating the need for separate power cables. Housed in durable ABS plastic, the baluns feature BNC male connectors for video and RJ45 female connectors for data/power, along with 2.1/5.5mm DC plug and jack for power connections. Built-in surge and ESD protection ensure reliable operation in demanding environments.

Advantages

Combines video and power transmission in one compact kit, reducing cabling costs and installation time. Supports a wide range of video formats and resolutions, making it versatile for various surveillance setups. Long transmission distances and robust protection features enhance system reliability.

Suitable for

• Security camera installations using analog HD or CVBS cameras
• Upgrading existing coaxial systems to UTP cabling
• Applications requiring power delivery over the same cable as video

Key specifications

• Video Signal Compatibility: AHD, HD-CVI, HD-TVI, CVBS
• Supported Resolutions: Up to 8MP (4K)
• Max. Video Transmission Distance (CVBS): 400m (Cat.5e/6)
• Max. Video Transmission Distance (HD 720p/1080p): 250m (Cat.5e/6)
• Max. Video Transmission Distance (HD 3MP-5MP): 200m (Cat.5e/6)
• Max. Video Transmission Distance (HD 8MP): 100m (Cat.5e/6)
• Power Transmission: Yes, up to 30V DC / 1A
• Max. Power Distance: 100m (12V/1A)
• Video Connector: BNC Male
• Data/Power Connector: RJ45 Female

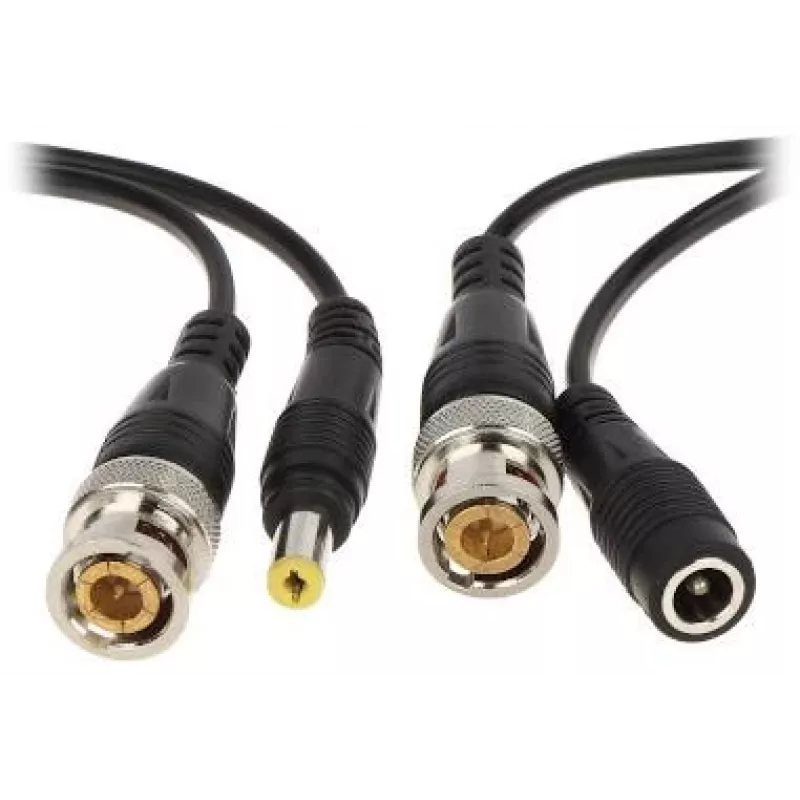

• DC Power Connector: 2.1/5.5mm DC Plug and Jack
• Recommended Cable: UTP Cat.5e/6
• Impedance: 75 Ohm (coaxial), 100 Ohm (UTP)
• Protection: Surge, ESD
• Operating Temperature: -10°C to +50°C
• Housing Material: ABS Plastic

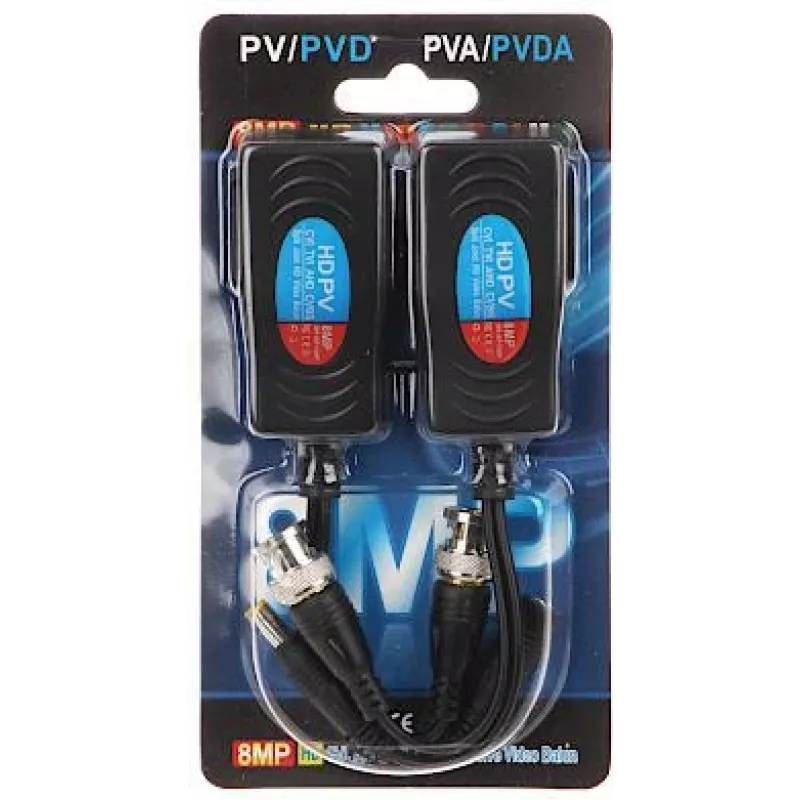

• Kit Contents: 2 x Video Balun Transceivers (Transmitter and Receiver)

Recommendations

For optimal performance, use high-quality Cat.5e or Cat.6 UTP cable. Ensure proper termination of connectors. This kit is ideal for new installations or retrofitting existing coaxial systems.
