DELTA Κουτί διακλάδωσης PK-9/D IP54 Γκρι

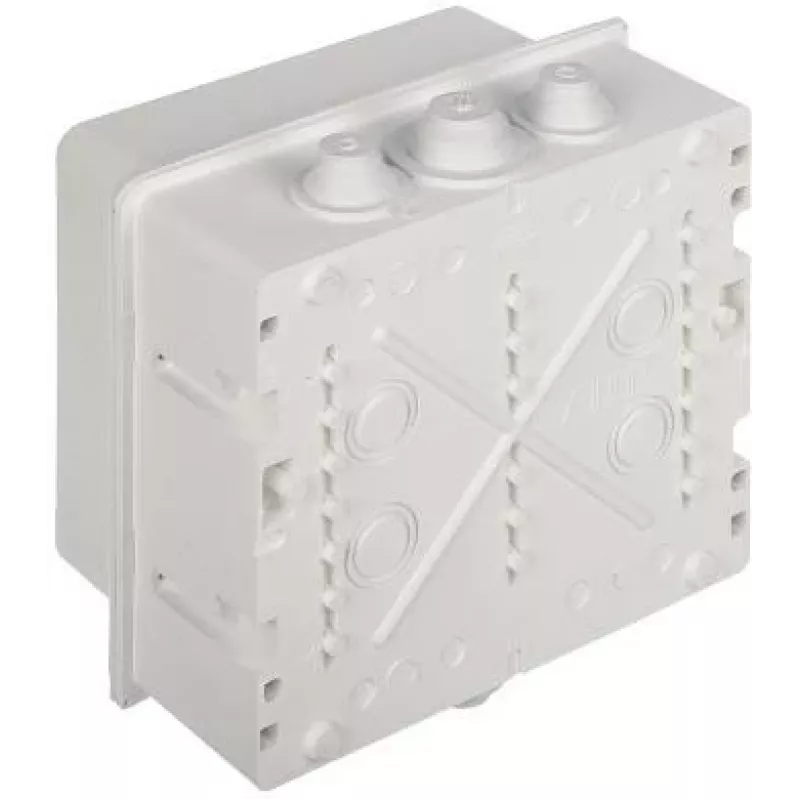

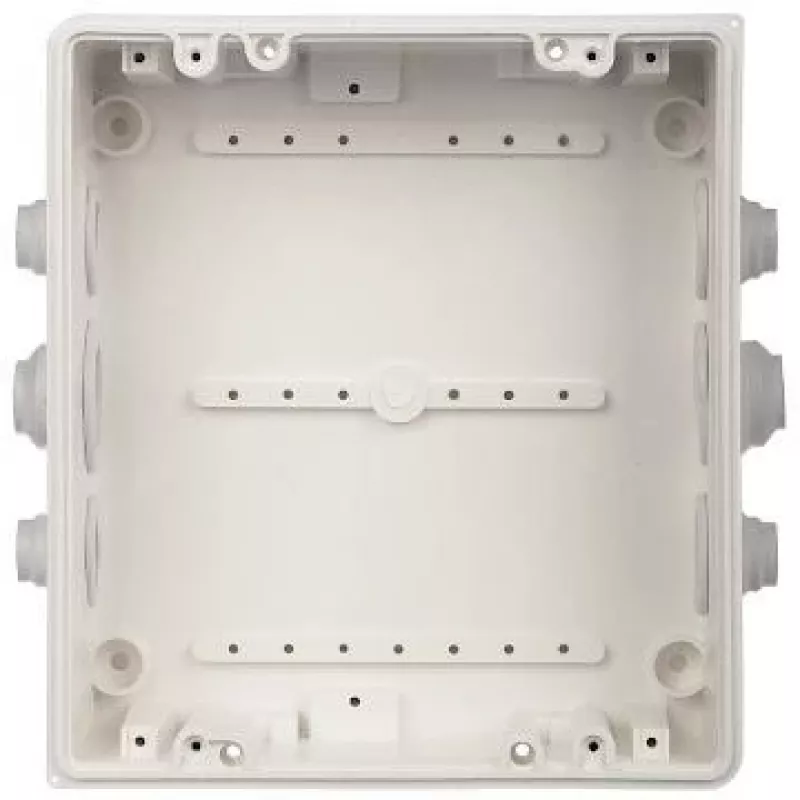

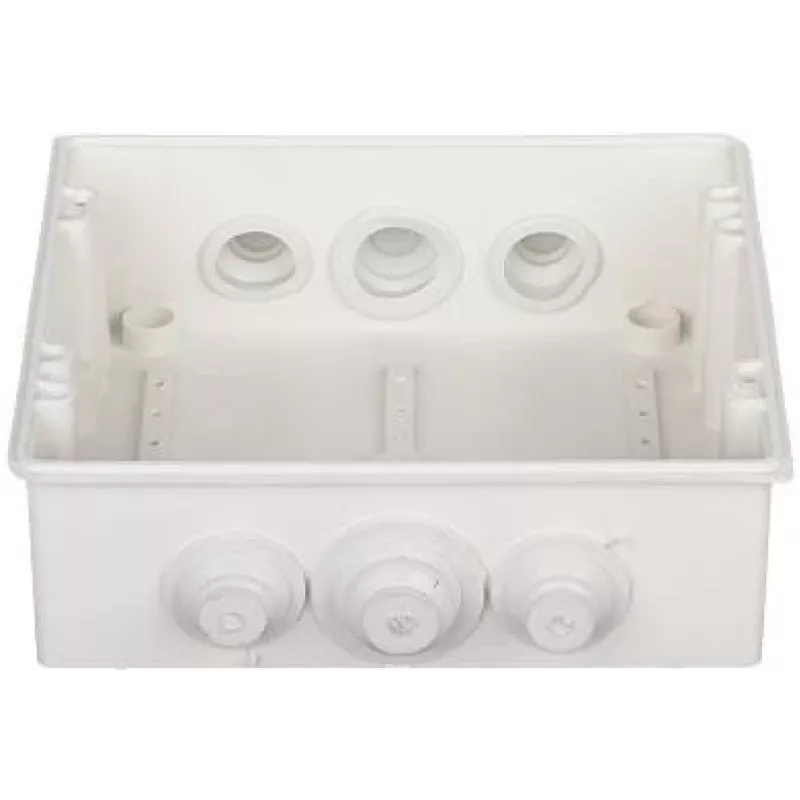

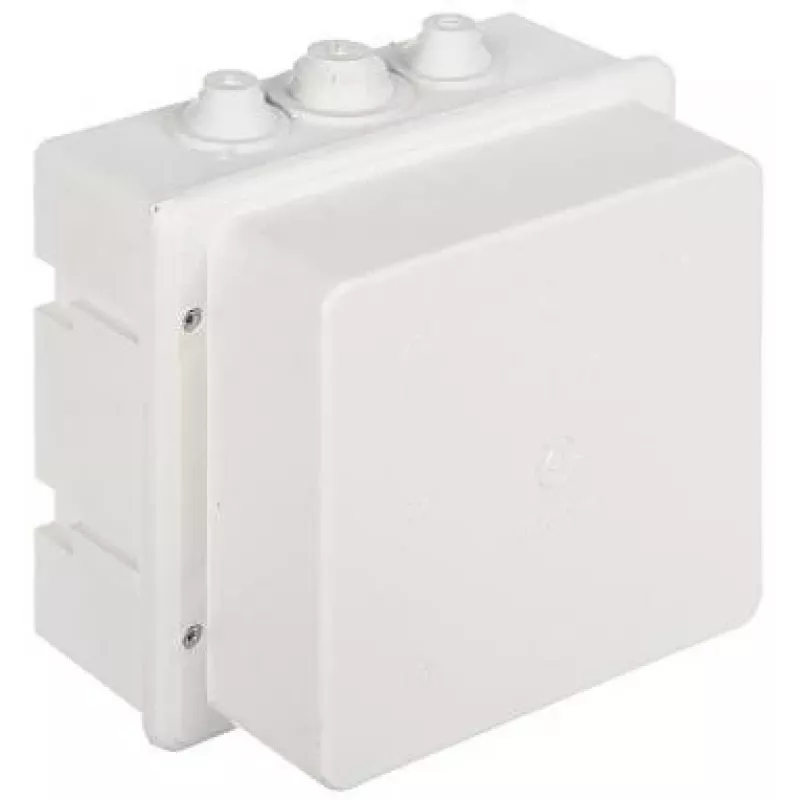

The DELTA PK-9/D is a high-quality surface-mounted junction box designed for secure and reliable electrical installations. With an IP54 rating, it offers protection against dust and water splashes, making it suitable for both indoor and outdoor use. The box is made from durable polystyrene (PS) and features a snap-on cover for easy access.

Advantages

This junction box provides excellent impact resistance (IK07) and is halogen-free, ensuring safety in case of fire. It complies with EN 60670-1 and EN 60670-22 standards, and has passed the glow wire test at 650°C. The membrane gland cable entries allow for quick and tool-free installation.

Suitable for

• Electrical junction and connection points in residential and commercial buildings
• Surface-mounted installations where space is limited
• Applications requiring IP54 protection against dust and moisture

Key specifications

• Brand: DELTA
• Model: PK-9/D
• MPN: PK-9/D
• EAN: 5907570041110
• Category: Junction & Connection Box
• Colour: Grey (RAL 7035)
• Material: Polystyrene (PS)
• Ingress Protection: IP54
• Impact Protection: IK07
• External Dimensions: 110 x 110 x 55 mm
• Internal Dimensions: 100 x 100 x 48 mm
• Number of Cable Entries: 8
• Cable Entry Type: Membrane glands
• Cover Type: Snap-on
• Halogen-Free: Yes
• Glow Wire Test: 650°C
• Rated Insulation Voltage: 400V
• Operating Temperature: -25°C to +60°C
• Standards: EN 60670-1, EN 60670-22

Recommendations

For optimal performance, use with appropriate cable glands and ensure proper sealing of unused entries. This box is ideal for new installations or retrofitting existing systems.
