Κιτ ραγών τοποθέτησης σε rack Delta 3915100011

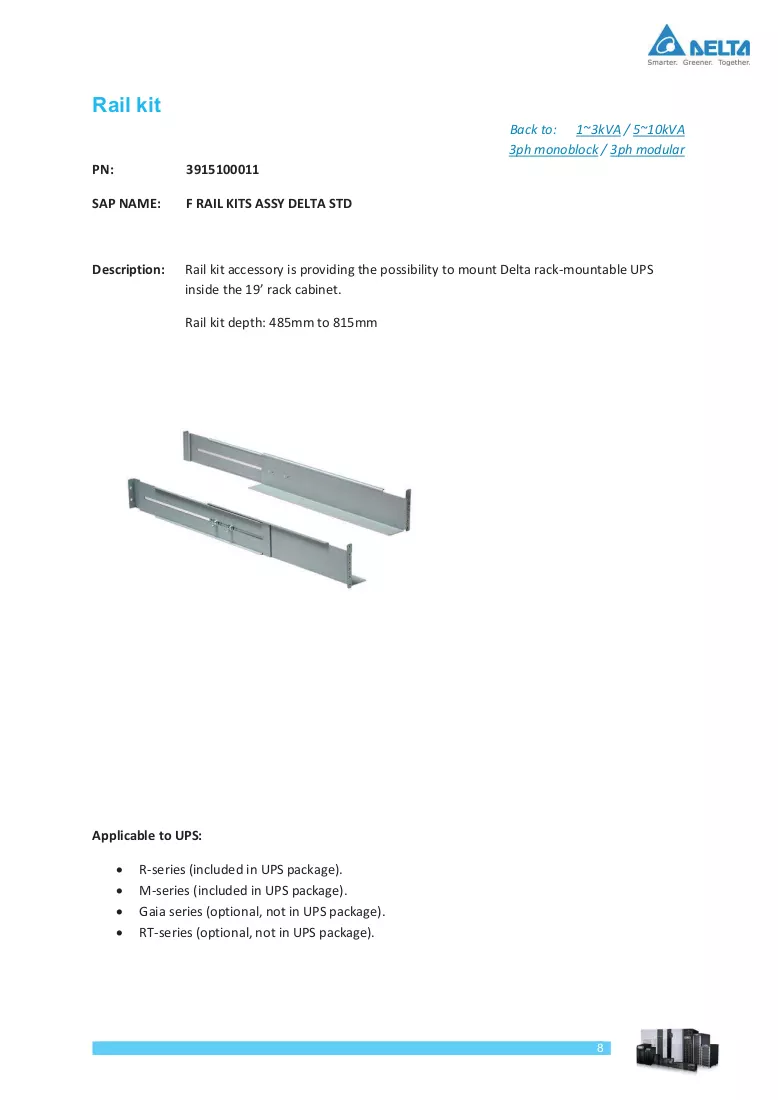

The Delta 3915100011 rack rail kit enables mounting of a Delta rack-mountable UPS inside a standard 19" rack cabinet. The kit supports an adjustable rail depth from 485 mm up to 815 mm and is finished in silver to match common rack aesthetics.

Advantages

This rack rail kit is specifically sized for 19" racks and provides an adjustable depth to accommodate different cabinet interiors. It ensures secure attachment of compatible Delta UPS models and improves stability and accessibility of the installed unit without occupying additional rack width.

Suitable for

• Mounting Delta R-series rack-mountable UPS (included with UPS)
• Mounting Delta M-series rack-mountable UPS (included with UPS)
• Mounting Delta Gaia-series rack-mountable UPS (optional accessory)
• Mounting Delta RT-series rack-mountable UPS (optional accessory)

Key specifications

• Manufacturer: Delta
• Model / MPN: 3915100011
• EAN: 4710901733223
• Compatible rack width: 19"
• Adjustable rail depth: 485 mm – 815 mm
• Color / finish: Silver

How to use

Adjust the rails to the required depth within the 485–815 mm range, secure the rail kit to the cabinet uprights according to the rack mounting points, then slide the compatible Delta UPS into the rails until it seats firmly. Fasten the UPS to the rails using the mounting hardware supplied with the UPS or kit, and verify all screws are tightened to prevent movement.

Recommendations

Confirm compatibility with your specific Delta UPS model before installation. Use appropriate mounting hardware and follow the rack cabinet manufacturer's weight limits. If the kit is supplied with the UPS, use the included components; for Gaia or RT series, obtain the optional kit if not provided with the UPS.
