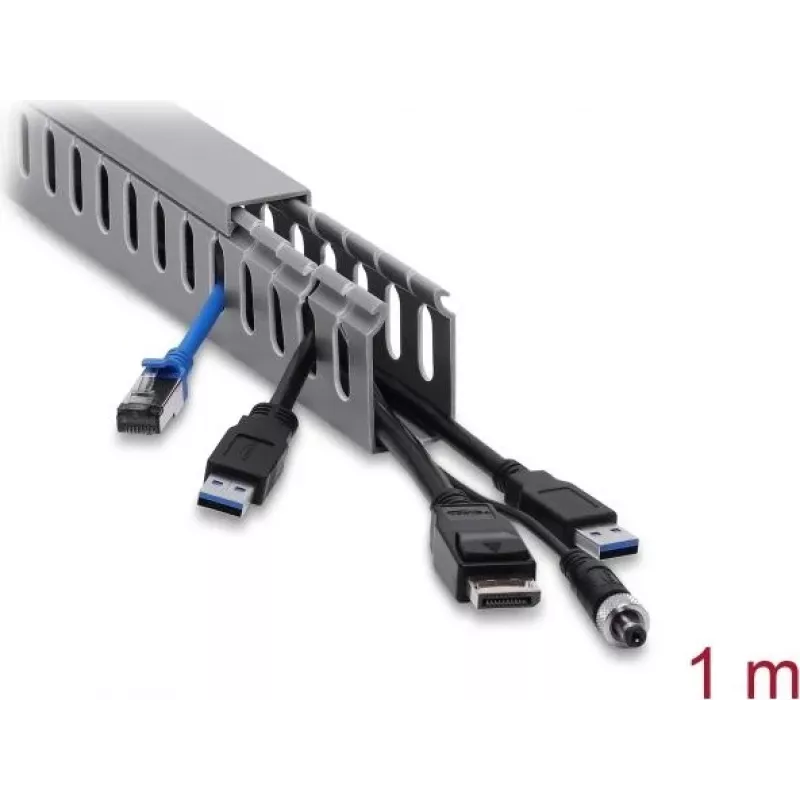

Delock κανάλι καλωδίων 25 x 45 mm, μήκος 1 m, γκρι

Messy cable runs in control cabinets and electrical installations are a common source of maintenance headaches and safety risks. This Delock wiring duct provides a clean, organized pathway for your wires, keeping them protected and easily accessible.

Who is it for

Electricians, panel builders, and maintenance technicians working on industrial control systems, distribution boards, or structured cabling projects will appreciate the duct's robust construction and simple installation.

Main features

• Slotted side walls allow cables to enter or exit at any point along the duct, with 4 mm slots spaced every 6 mm for flexible routing.
• Snap-on cover included, providing a neat finish and protecting cables from dust and accidental contact.
• Pre-drilled mounting holes in the base enable quick screw fixing to panels or walls.
• Made from halogen-free PVC with a UL94 V-0 flammability rating, suitable for fire-sensitive environments.
• Grey colour blends with standard industrial enclosures.

Specifications

• Dimensions: 25 mm width x 45 mm height
• Length: 1 m
• Material: PVC (polyvinyl chloride), halogen-free
• Colour: Grey
• Slot width: 4 mm, slot spacing: 6 mm
• Mounting: Pre-drilled holes for screws
• Cover: Snap-on, included
• Operating temperature: -5 °C to 60 °C
• Flammability rating: UL94 V-0
• RoHS compliant

Tips

When sizing a duct, allow extra space for future cable additions—typically 20-30% spare capacity. Use a fine-tooth saw or dedicated duct cutter for clean, burr-free cuts.
