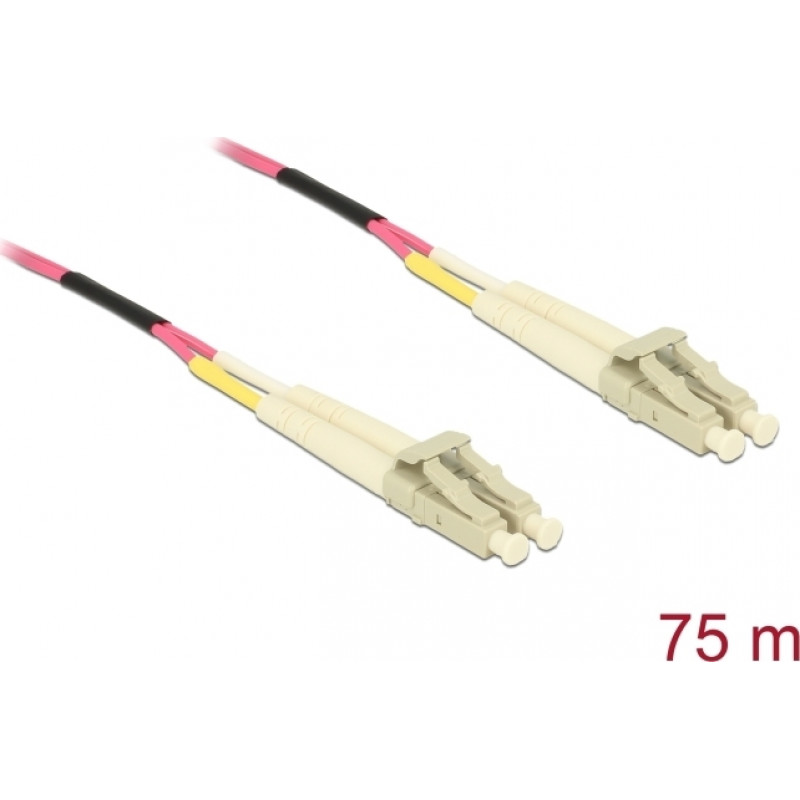

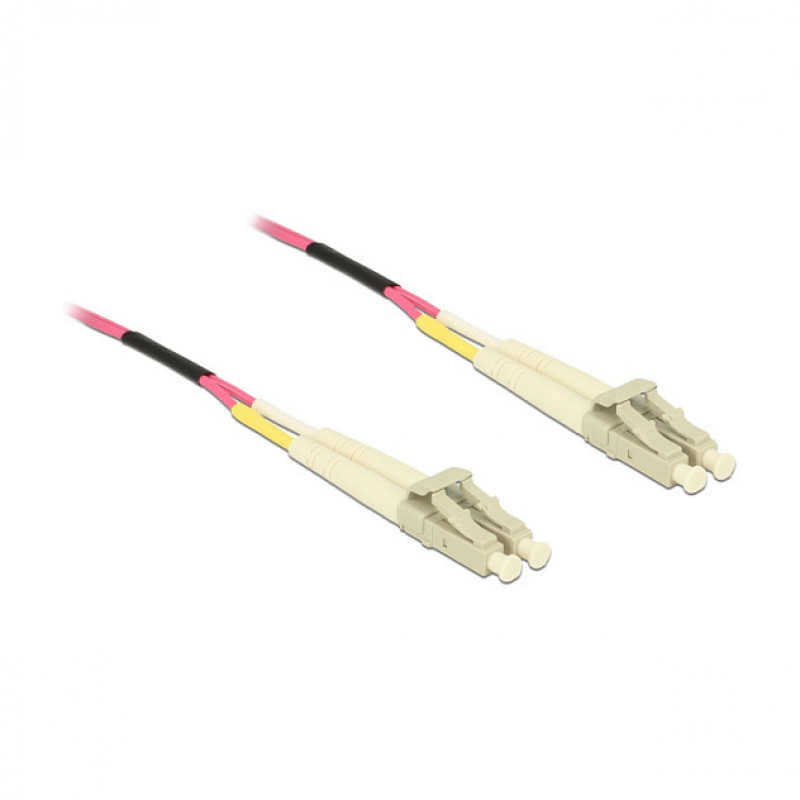

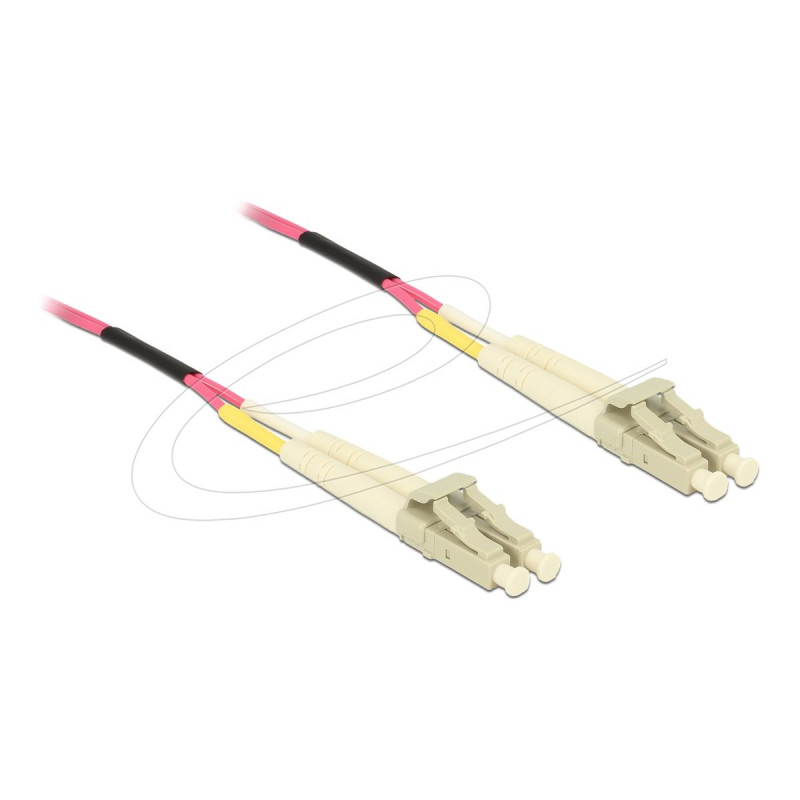

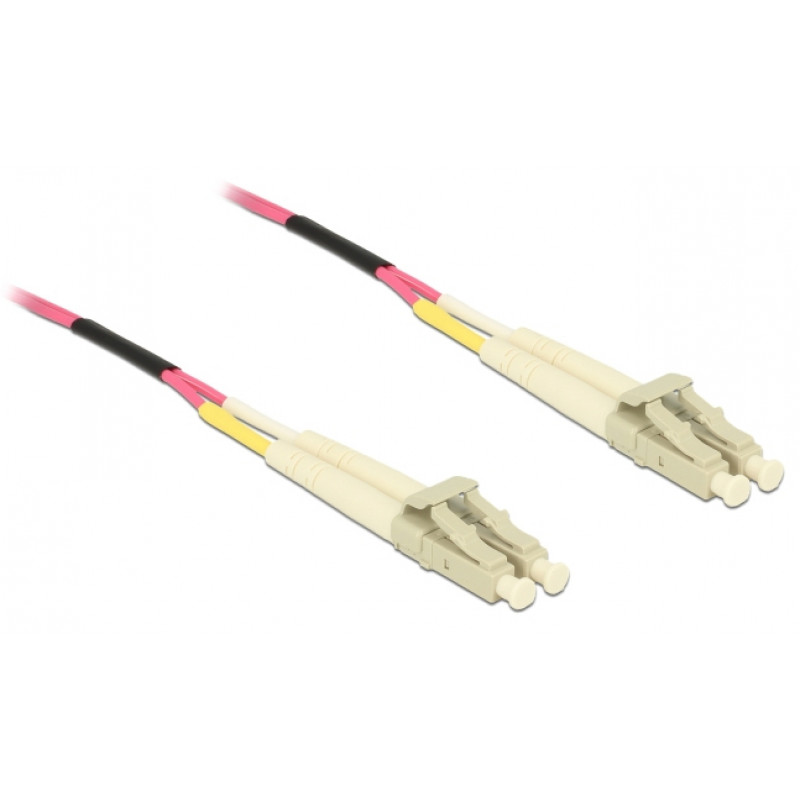

Delock 80156 LC Duplex σε LC Duplex Multimode OM4 καλώδιο οπτικών ινών, 75 m

The Delock 80156 is a multimode OM4 fibre optic cable designed for glass fibre connections. It features LC multimode connectors on both ends and a 50/125 µm core and cladding diameter for efficient data transmission.

Key features

• OM4 multimode fibre optic cable
• LC multimode connectors on both ends
• Core and cladding diameter: 50/125 µm
• Insertion loss: less than 0.3 dB
• Return loss: more than 35 dB
• Ceramic ferrule and dust protection
• LSZH (Low Smoke Zero Halogen) jacket material
• Operating temperature: -20 °C to 70 °C
• Bending radius: 25 mm

Specifications

• Brand: Delock
• MPN: 80156
• Core and cladding diameter: 50/125 µm
• Insertion loss: < 0.3 dB
• Return loss: > 35 dB
• Operating temperature: -20 °C to 70 °C
• Bending radius: 25 mm
