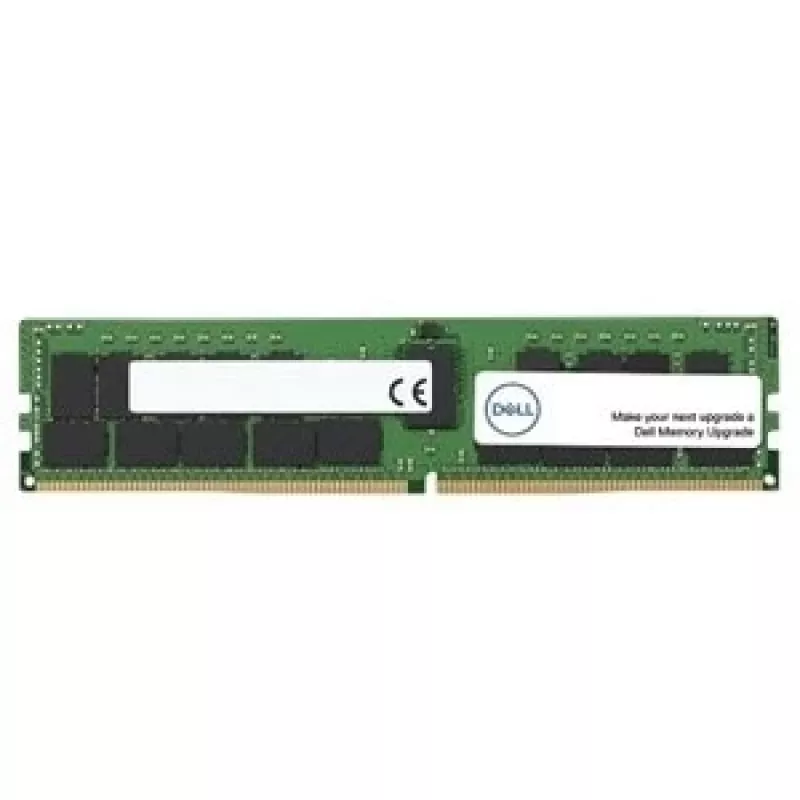

Dell - DDR4 - Μονάδα - 32 GB - DIMM 288-PIN - 3200 MHz / PC4-25600 - 1.2 V registered ECC

The DELL AB614353 DDR4 32GB 3200MHz ECC memory module is a 288-pin DIMM designed for professional PC and server environments. It provides 32 GB of DDR4 capacity operating at 3200 MHz with ECC error-correction support and a standard 1.2 V operating voltage. The module is intended to enhance system capacity and reliability for memory-intensive tasks while maintaining data integrity through built-in ECC functionality.

Advantages

This memory module combines a high-capacity 32 GB density with a 3200 MHz clock speed to support multitasking and large datasets. ECC technology corrects single-bit errors and helps prevent data corruption, improving system stability in continuous-operation and mission-critical systems. The 288-pin DIMM form factor ensures compatibility with many desktop and server motherboards that support DDR4 ECC modules, and the 1.2 V operating voltage contributes to efficient power usage.

Suitable for

• Server and workstation systems requiring ECC memory for data integrity
• Virtualization hosts running multiple virtual machines
• High-performance computing applications with large memory footprints
• Database servers and transaction processing systems
• Professional content creation and engineering workstations

Key specifications

• Capacity: 32 GB
• Memory type: DDR4
• Clock speed: 3200 MHz
• Form factor: 288-pin DIMM
• ECC: Error-correcting code support
• Voltage: 1.2 V

How to use

Power down the system and disconnect it from its power source before installing the module. Open the system chassis to access the memory slots and align the 288-pin DIMM with the module slot keying, then press firmly and evenly until the retaining clips engage. For optimal performance, consult the motherboard or server documentation to verify supported memory configurations, channel population order, and compatibility with ECC modules. After installation, power on the system and verify that the BIOS/UEFI recognizes the new module and that ECC functionality is enabled if required.

Recommendations

Install memory modules in matched pairs or according to the motherboard’s channel population guidelines to achieve maximum bandwidth and stability. Use firmware and BIOS updates from the system vendor to ensure full ECC and compatibility support. Avoid mixing different memory capacities, speeds, or voltages in the same channel to reduce the risk of instability.
