DEHN παράλληλος συνδετήρας NIRO (V4A) 306 029 (306029)

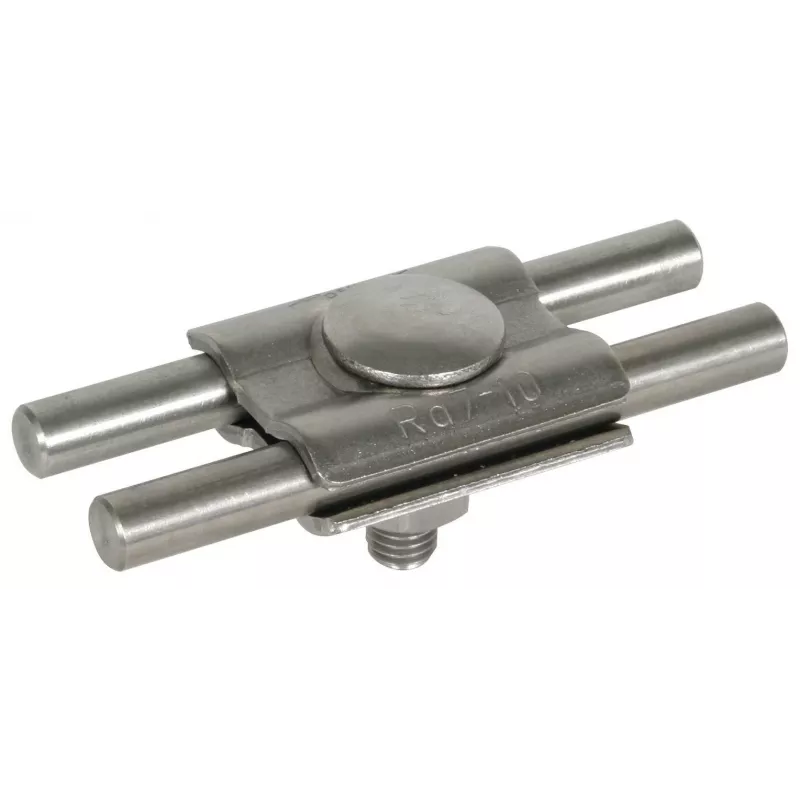

Forged from V4A stainless steel (AISI 316 / 1.4404), this parallel connector delivers exceptional corrosion resistance in marine, chemical, and outdoor environments. It securely joins two wire ropes of 6–8 mm diameter using a robust screw-type clamping mechanism.

Overview

The DEHN 306029 is a parallel clamp connector designed for permanent, reliable wire rope connections. Its V4A stainless steel construction ensures long-term durability even under aggressive conditions, while the polished finish resists UV and temperature extremes.

What stands out

• V4A stainless steel for superior chloride and acid resistance
• Accepts wire ropes from 6 mm to 8 mm
• Two M6 hexagon socket head cap screws for secure clamping
• Reusable and easy to assemble with a standard hex key

Technical details

• Material: Stainless steel V4A (1.4404)
• Connection type: Parallel clamp
• Number of ropes: 2
• Fastening: 2 × M6 hexagon socket head cap screws
• Finish: Bright / polished

Our verdict

A high-grade stainless steel solution for demanding wire rope connections where corrosion resistance and mechanical strength are paramount.
