DEHN Λωρίδα γείωσης ED LSA-Plus EL2 38EA (907993)

With 38 LSA-Plus insulation displacement connections, this earthing strip provides a reliable grounding solution for telecommunication and data network applications.

Overview

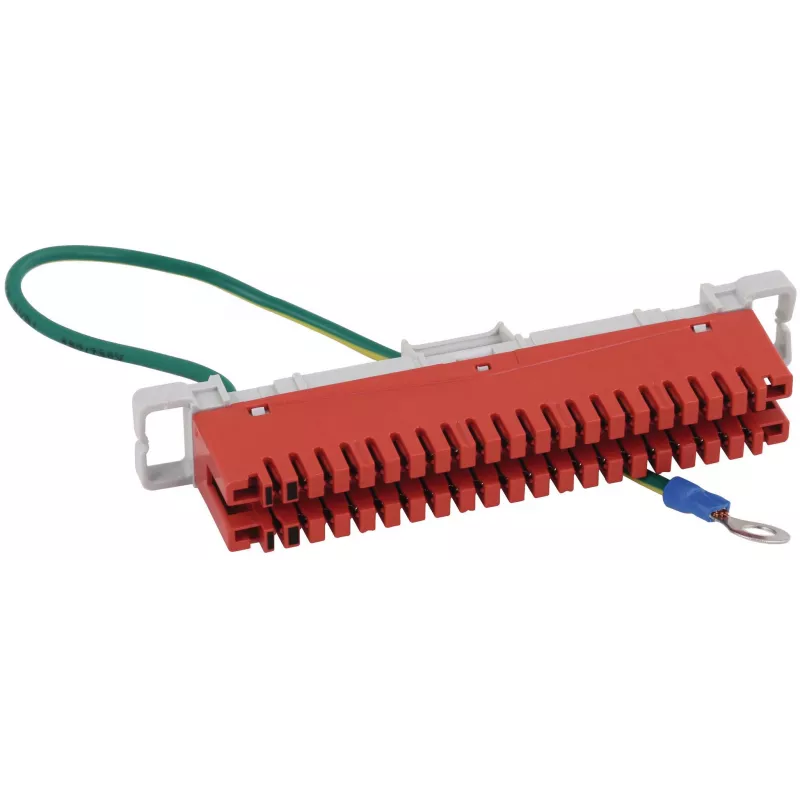

The DEHN ED-Leiste LSA-Plus EL2 38EA LSA is an earthing strip designed for grounding individual conductors or surge protective devices (SPDs) in telecommunication, data network, and industrial control systems. It features 38 single-wire connections (EA - Einzel-Anschluss) using LSA-Plus technology, which allows for quick, solder-free, and reliable insulation displacement connections.

What stands out

• 38 LSA-Plus connections for efficient grounding of multiple conductors
• Supports wire diameters from 0.4 to 0.8 mm (AWG 26-20)
• Thermoplastic housing and copper alloy contacts for durability
• Compatible with standard LSA-Plus mounting frames and distribution boxes
• Light grey colour for easy identification in installations

Technical details

• Connection technology: LSA-Plus (insulation displacement connection)
• Number of connections: 38
• Connection type: Single-wire connection (EA)
• Series designation: EL2
• Wire diameter range: 0.4 - 0.8 mm (AWG 26-20)
• Housing material: Thermoplastic
• Contact material: Copper alloy
• Colour: Light grey
• Mounting: Designed for LSA-Plus mounting frames or distribution boxes
• Tool requirement: LSA-Plus insertion tool

Our verdict

A practical earthing strip for structured cabling systems, offering a high connection density and compatibility with standard LSA-Plus components.
