DEHN 308031 βραχίονας οπλισμού RD6-20 για ισοδυναμική σύνδεση

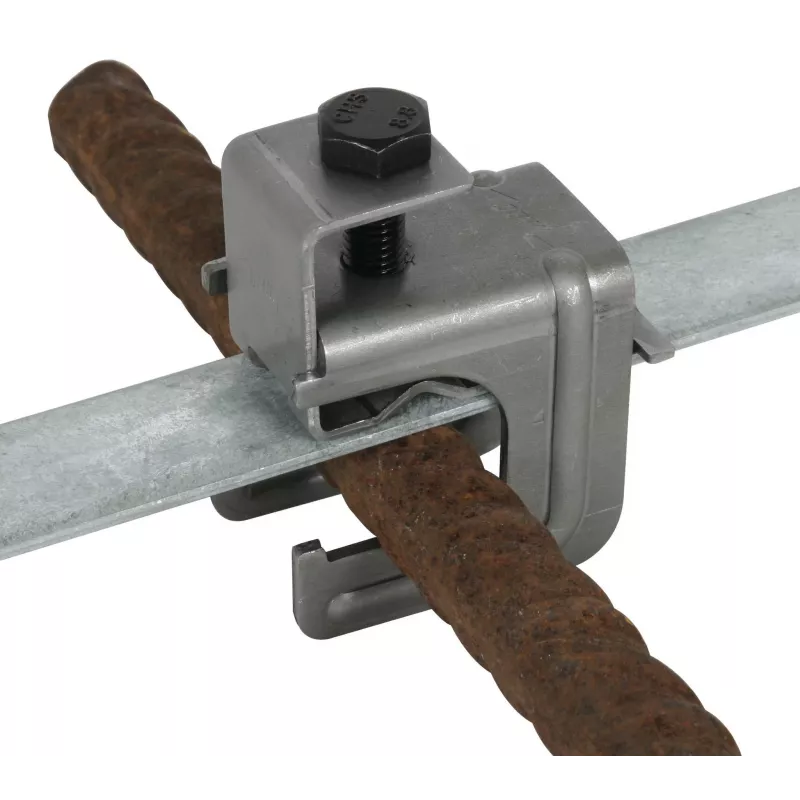

Connect external conductors to reinforcement steel with the DEHN 308031 fastening element, engineered for reliable equipotential bonding in concrete structures. This clamp accommodates rebar diameters from 6 to 20 mm and round conductors from 8 to 10 mm, ensuring a secure mechanical and electrical connection.

Overview

The DEHN 308031 is a hot-dip galvanized steel clamp designed for use in lightning protection and surge protection equipotential bonding. It provides a robust connection point between external conductors and internal reinforcement steel, essential for maintaining electrical continuity in concrete buildings.

What stands out

• Wide rebar compatibility: fits reinforcement steel diameters 6–20 mm
• Accepts round conductors 8–10 mm for flexible installation
• Hot-dip galvanized steel construction for high corrosion resistance
• Meets DIN EN 62561-1 standards for lightning protection components

Technical details

• Product type: Fastening element for equipotential bonding
• Application: Equipotential bonding, surge protection, lightning protection
• Mounting type: Clip/clamp for reinforcement steel
• Rebar diameter range: 6 - 20 mm
• Conductor diameter range: 8 - 10 mm
• Material: Steel, hot-dip galvanized (St/tZn)
• Number of connections: 1
• Standards compliance: DIN EN 62561-1
• Installation environment: Concrete structures

Our verdict

A dependable and corrosion-resistant clamp for integrating reinforcement steel into equipotential bonding systems, ideal for concrete construction projects requiring lightning protection.
