DEHN 306100 παράλληλος σύνδεσμος για στρογγυλούς και επίπεδους χάλκινους αγωγούς

With a lightning impulse current rating of 100 kA (10/350 µs), this DEHN parallel connector ensures reliable connections in lightning protection and earthing systems.

Overview

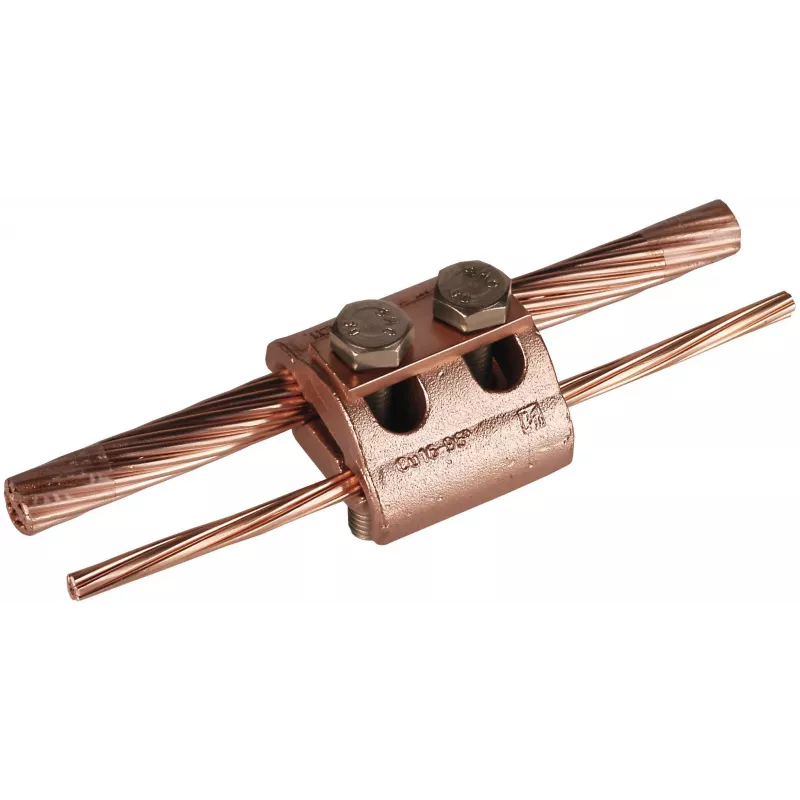

The DEHN 306100 is a copper parallel connector designed for joining round and flat conductors. It accommodates round conductors with diameters from 5 to 12.5 mm and flat conductors with cross-sections from 16 to 95 mm². The screw clamp connection, featuring stainless steel (V2A) screws, provides a secure and corrosion-resistant joint. Compliant with EN 62561-1, this connector is suitable for indoor and outdoor use in lightning protection, earthing, and equipotential bonding applications.

What stands out

• High lightning impulse current capacity: 100 kA (10/350 µs)
• Versatile conductor compatibility: round 5–12.5 mm diameter, flat 16–95 mm²
• Corrosion-resistant copper body with stainless steel screws
• Meets EN 62561-1 standard

Technical details

• Connector type: Parallel connector
• Material: Copper
• Connection method: Screw clamp
• Screw material: Stainless steel (V2A)
• Tightening torque: 15 Nm
• Short-circuit current rating: 100 kA (50 Hz, 1 s)
• Number of connections: 2

Our verdict

A robust and reliable connector for professional lightning protection and earthing installations, offering high current capacity and corrosion resistance.
