DEHN 204002 Στήριγμα αγωγού M8 γκρι

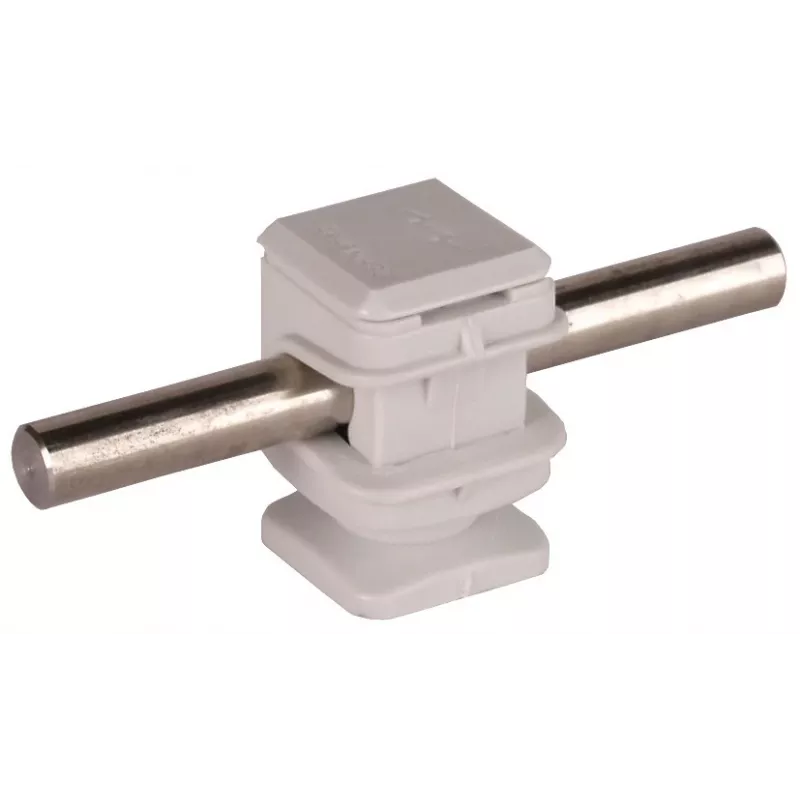

Conductor holder for round conductors with M8 thread, made of UV-stabilized polyamide in grey (RAL 7035). The holder securely fixes round conductors with a diameter of 8–10 mm and is suitable for lightning protection and earthing systems.

Advantages

UV-stabilized and weather-resistant polyamide ensures long service life even under outdoor conditions. The material is self-extinguishing and provides electrical insulation.

Suitable for

• Round conductors with diameter 8–10 mm
• Lightning protection systems
• Earthing and bonding installations

Key specifications

• Mounting thread: M8
• Material: Polyamide (PA), UV-stabilized
• Colour: Grey (RAL 7035)
• Operating temperature: -30 °C to +60 °C
• Fire behaviour: self-extinguishing

Recommendations

For fixing round conductors on flat surfaces. Use with M8 screws or bolts. Not suitable for flat conductors.
