DEANTE καζανάκι χωνευτό για λεκάνες τοίχου

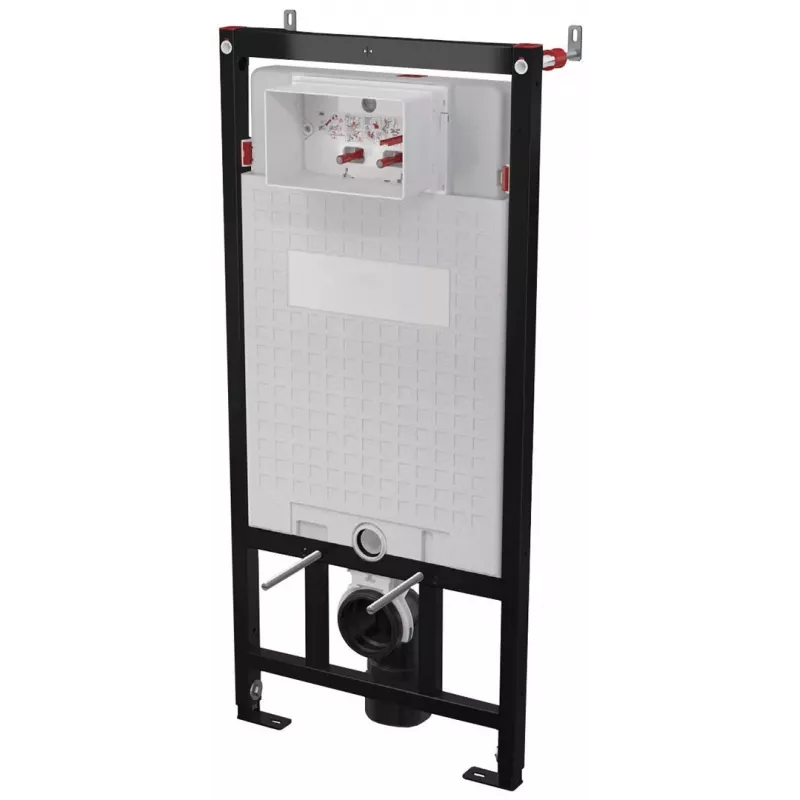

The DEANTE Concealed Frame for Wall-Hung Toilets is a robust and versatile solution for modern bathroom installations. Designed for wall-hung toilets, this frame integrates a concealed dual-flush cistern and provides reliable support with a load capacity of up to 400 kg. The powder-coated steel frame ensures durability and resistance to corrosion, while the adjustable height (1120-1320 mm) and depth (140-190 mm) allow flexible installation in drywall or solid walls. The pneumatic actuation system is compatible with Cersanit flush plates (e.g., MOVI, ACCENTO, STERO, ACTIVO) and features a low-noise fill valve (Class I). Anti-condensation insulation is included to prevent moisture buildup. The frame comes complete with cistern, mounting hardware, and top/side water connection options.

Advantages

High load capacity (400 kg) ensures safety and stability. Adjustable height and depth accommodate various bathroom layouts. Dual-flush cistern (3/5 L) promotes water conservation. Pneumatic actuation offers smooth and reliable flushing. Anti-condensation insulation protects against moisture damage. Easy installation in both drywall and solid walls.

Suitable for

• Wall-hung toilets in residential and commercial bathrooms
• New constructions and renovations
• Drywall and solid wall installations

Key specifications

• Product Type: Concealed WC Frame
• Application: Wall-hung toilets
• Cistern Type: Concealed, dual flush
• Flush Volume: 3/5 L (adjustable)
• Actuation Type: Pneumatic
• Frame Material: Powder-coated steel
• Load Capacity: Up to 400 kg
• Mounting Type: Wall-mounted with floor support
• Height Adjustment Range: 1120 - 1320 mm
• Depth Adjustment Range: 140 - 190 mm
• Water Connection: Top/Side
• Anti-condensation Insulation: Yes
• Compatible Flush Plates: Cersanit pneumatic flush plates (e.g., MOVI, ACCENTO, STERO, ACTIVO)
• Water Supply Pressure: 0.05 - 1 MPa
• Operating Temperature: 4 - 25 °C
• Noise Level: Class I (low noise fill valve)
• Installation Type: Drywall or solid wall
• Included Components: Frame, cistern, mounting hardware

Recommendations

For optimal performance, ensure the frame is securely mounted to a solid wall or reinforced drywall. Use compatible Cersanit pneumatic flush plates for seamless integration. Professional installation is recommended to guarantee proper alignment and water connection.
