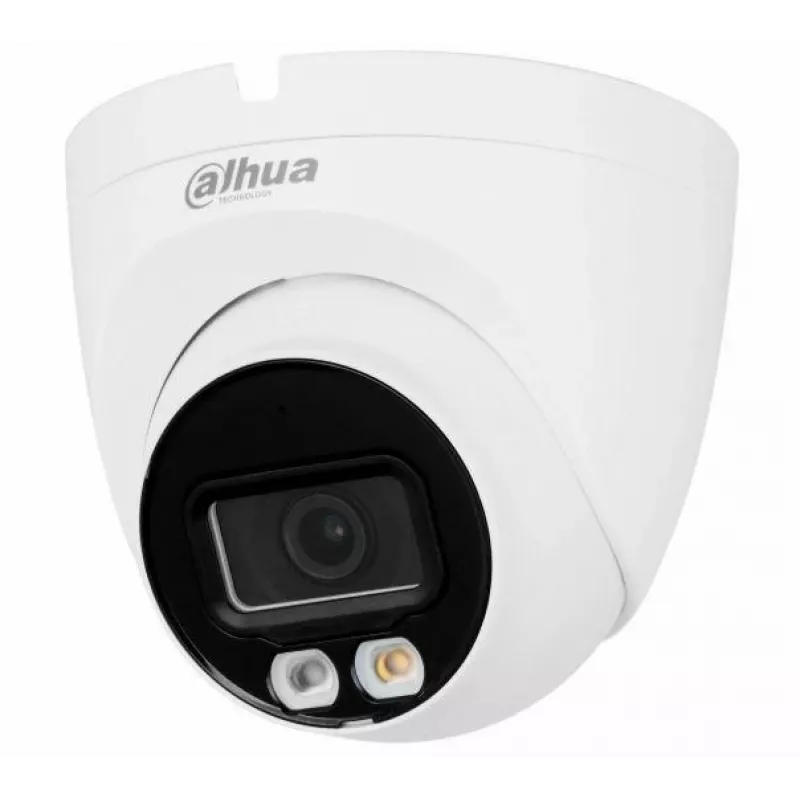

DAHUA IP Camera IPC-HDBW2249E-S-IL-0280B 2MP IR Dome Network Camera

The DAHUA IPC-HDBW2249E-S-IL-0280B is a high-performance 2MP IR dome network camera designed for professional surveillance. Featuring a 1/2.8" progressive CMOS sensor, it delivers crisp 1080P resolution at 25/30 fps. With 120dB True WDR, SMD Plus smart detection, and IVS perimeter protection, this camera ensures reliable monitoring in challenging lighting conditions. The 2.8mm fixed lens provides a 106° horizontal field of view, while the integrated IR LEDs offer up to 30m night vision. Built with an IP67-rated metal housing and IK10 vandal resistance, it is suitable for indoor and outdoor use.

Advantages

Exceptional image quality with 2MP resolution and 120dB True WDR for clear footage in high-contrast scenes. Advanced AI features like SMD Plus reduce false alarms by distinguishing humans and vehicles. The compact dome design with IK10 protection ensures durability in harsh environments. Easy installation with PoE support and a built-in micro SD card slot for local storage up to 256 GB.

Suitable for

• Retail stores and shopping centers
• Office buildings and corporate campuses
• Warehouses and logistics facilities
• Residential properties and apartment complexes
• Educational institutions and hospitals

Key specifications

• Image Sensor: 1/2.8" 2MP progressive CMOS
• Max Resolution: 1920 x 1080 (1080P)
• Frame Rate: 25/30 fps @ 1080P
• Lens: 2.8mm fixed focal, F2.0
• Angle of View: H: 106°
• IR Distance: Up to 30m (98.4ft)
• Video Compression: H.265, H.264, H.264H, H.264B, MJPEG
• Smart Features: SMD Plus, IVS (Tripwire, Intrusion)
• WDR: 120dB True WDR
• Audio: Built-in microphone
• Storage: Micro SD card slot, max 256GB
• Network: RJ-45 10/100 Base-T
• Power: 12V DC / PoE (802.3af)
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Operating Temperature: -40°C to +60°C (-40°F to +140°F)
• Material: Metal

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the micro SD card is Class 10 or higher for reliable recording. This camera is ideal for perimeter protection and indoor monitoring where high detail and low light performance are required.
