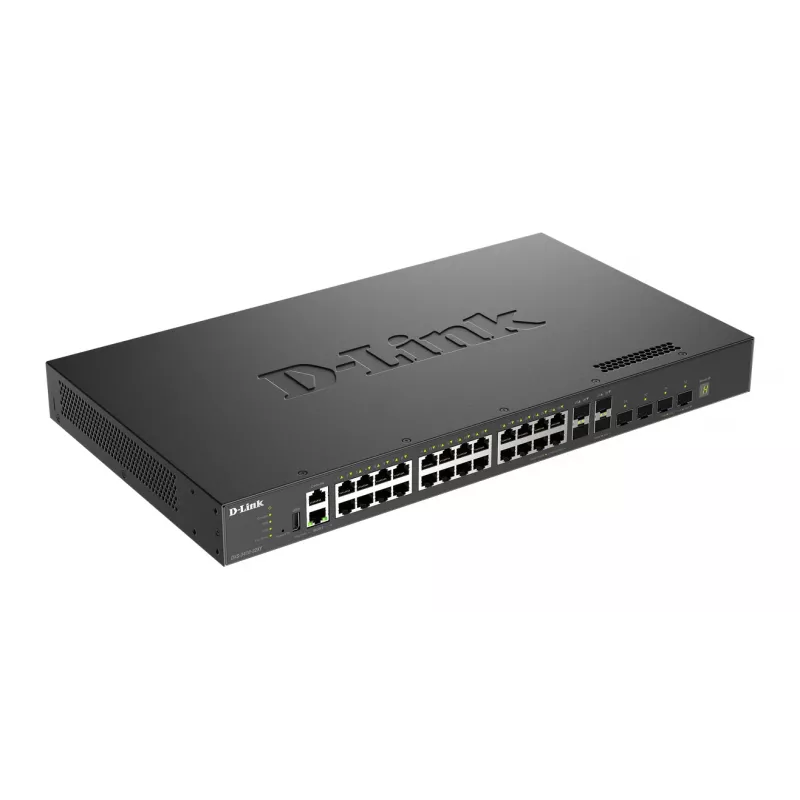

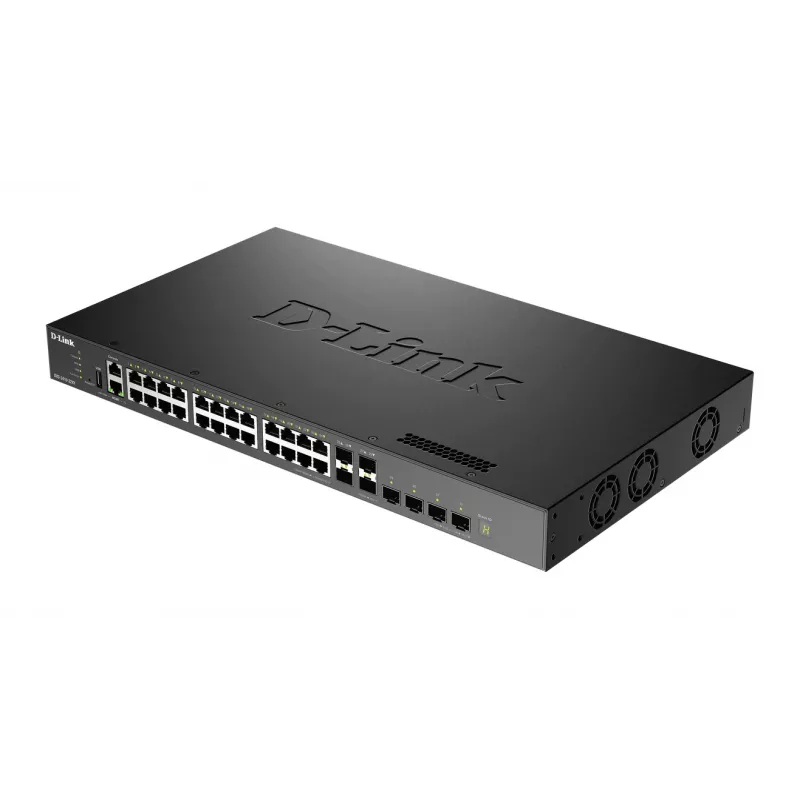

D-Link DXS-3410-32XY/E L3 Stackable Managed Switch, 24x 10GBASE-T + 4x SFP+ + 4x SFP28

The D-Link DXS-3410-32XY/E is a Layer 3 stackable managed switch designed for high-speed connectivity in modern network environments. It combines performance, efficiency, and manageability, making it suitable for medium and large companies.

Key features

• Layer 3 stackable managed switch
• High-speed connectivity at 10G/25G using 10G copper and fiber ports, and extending reach with 10G fiber and 25G uplink ports

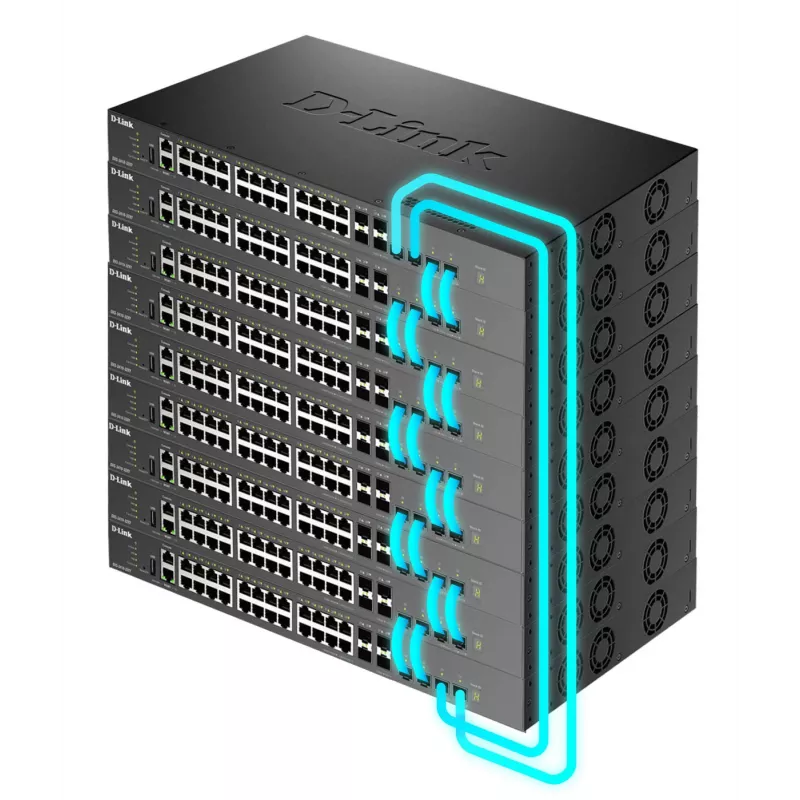

• Physical stacking: up to 9 units per stack for max. up to 252 10 Gigabit ports; provides 200 Gbps physical stacking bandwidth; long-distance stacking over fiber
• Layer 2 features: flow control, link aggregation, Ethernet Ring Protection Switching (ERPS), Spanning Tree Protocols, Loopback Detection, Flow Mirroring, IGMP/MLD Snooping
• Layer 3 features: up to 256 IP Interfaces, VRRP, static routing, RIPng, OSPF, IGMP and PIM-SM
• Static routing: route Layer 3 traffic between switches, even if they're segmented in VLANs
• Multiple images and configurations: risk-free firmware and configuration testing
• High availability and flexibility: utilize stacking technology for seamless network expansion; scale your network with a simple stacking cable without additional modules; enhance redundancy, simplify management, and control the entire stack with a single IP address
• World-class reliability: advanced L2 and L3 functionalities like port security, Storm Control, Link Aggregation, and Spanning Tree Protocols; management options such as 802.3ah OAM, 802.1ag CFM, and industry-standard CLI support; support for multiple images and configurations
• Equipped with x4 25G SFP28 uplink ports, supporting physical stacking for redundancy
• Incorporates G.8032 Ethernet Ring Protection Switching (ERPS) to minimize recovery times to 50 ms
• USB 2.0 interface allows for storing config files, boot images, and syslog
• Supports an optional external redundant power supply on all models
• Comprehensive security: Multi-layer and Packet Content Access Control Lists (ACL) and Storm Control; exclusive D-Link Safeguard Engine; IP-MAC-Port Binding; DHCP Snooping
• Easy access control policies: multiple authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC); after authentication, individual policies such as VLAN membership, Quality of Service (QoS) policies, and ACL rules can be assigned to each host
• High switching capacity of up to 760Gbps

Specifications

• Brand: D-Link
• MPN: DXS-3410-32XY/E
• Ethernet LAN: Yes
• Switch class: Managed
• Application: Medium and large companies
• Switch layer: L3
• Network architecture: GigabitEthernet
• Number of 10Gb ports: 32
• Number of 25Gb ports: 4
• LAN: 10 GBit/s, QSFP+ 25 GBit/s
• Connections: 24x RJ-45 (LAN) total, 1x USB-A 2.0
• Cooling: active
