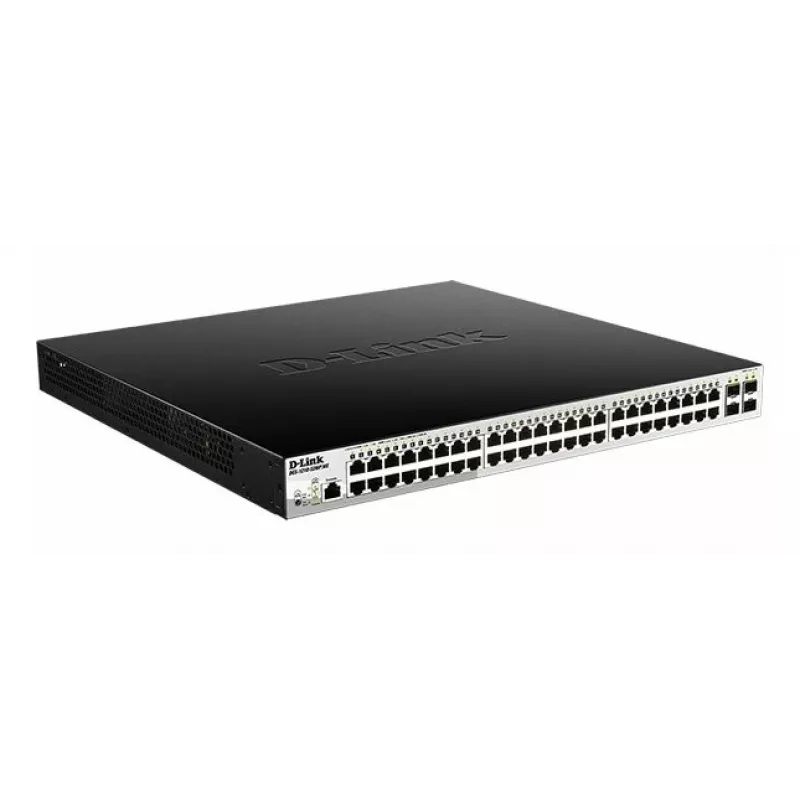

D-Link DGS-1210-52MP/ME/E Smart Managed L2+ Gigabit PoE+ switch με 48 PoE+ θύρες και 4 SFP-Uplinks

The D-Link DGS-1210-52MP/ME/E is a high-performance Smart Managed L2+ Gigabit Ethernet switch designed for growing businesses that require reliable, secure, and energy-efficient network connectivity. With 48 PoE+ ports and a total PoE budget of 370W, it powers IP cameras, wireless access points, and VoIP phones directly through the Ethernet cable, eliminating the need for separate power supplies. The switch also features 4 Gigabit SFP uplink ports for fiber connectivity, ensuring seamless integration into existing networks.

Advantages

This switch offers advanced Layer 2+ features including VLAN, QoS, and security policies, all manageable through an intuitive web-based GUI or CLI. Its smart fan design ensures quiet operation while maintaining optimal thermal performance. Energy-efficient features like IEEE 802.3az EEE reduce power consumption during low traffic periods, lowering operational costs.

Suitable for

• Small to medium-sized businesses needing PoE+ for IP surveillance, wireless, or VoIP
• Edge or access layer deployments in enterprise networks
• Rack-mountable installations requiring 1U form factor

Key specifications

• 48 x 10/100/1000BASE-T PoE+ ports (IEEE 802.3af/at)
• 4 x Gigabit SFP uplink ports
• Total PoE power budget: 370 W
• Switching capacity: 104 Gbps
• Forwarding rate: 77.38 Mpps
• MAC address table: 16K entries
• Jumbo frame support: 10,000 bytes
• VLAN support: 4094 VLANs, 802.1Q, Port-based, Voice VLAN, Surveillance VLAN
• QoS: 802.1p CoS, 8 queues per port
• Security: ACLs, Port Security, IP-MAC-Port Binding, D-Link Safeguard Engine
• Management: Web GUI, CLI (Telnet), SNMP, D-Link Network Assistant
• Form factor: 1U rack-mount
• Fans: 3 smart fans
• Power input: 100-240 VAC, 50/60 Hz
• Energy efficiency: IEEE 802.3az EEE

Recommendations

For optimal performance, use Category 5e or higher cabling for all Gigabit connections. The switch is ideal for powering PoE devices such as D-Link DCS series cameras or DAP access points. Ensure adequate ventilation in the rack to maintain the switch's operating temperature range.
