Cudy POE200H 30W 2.5Gbps Gigabit PoE+ Injector

Delivering up to 30W of PoE+ power over a 2.5-Gigabit link, the Cudy POE200H injector bridges the gap between high-speed networking and efficient power distribution. With one 2.5G RJ45 data input and one 2.5G RJ45 data+power output, it supports IEEE 802.3af/at standards and jumbo frames up to 10KB, making it ideal for Wi-Fi 6 access points, IP cameras, and other PoE devices that demand more than gigabit throughput.

Overview

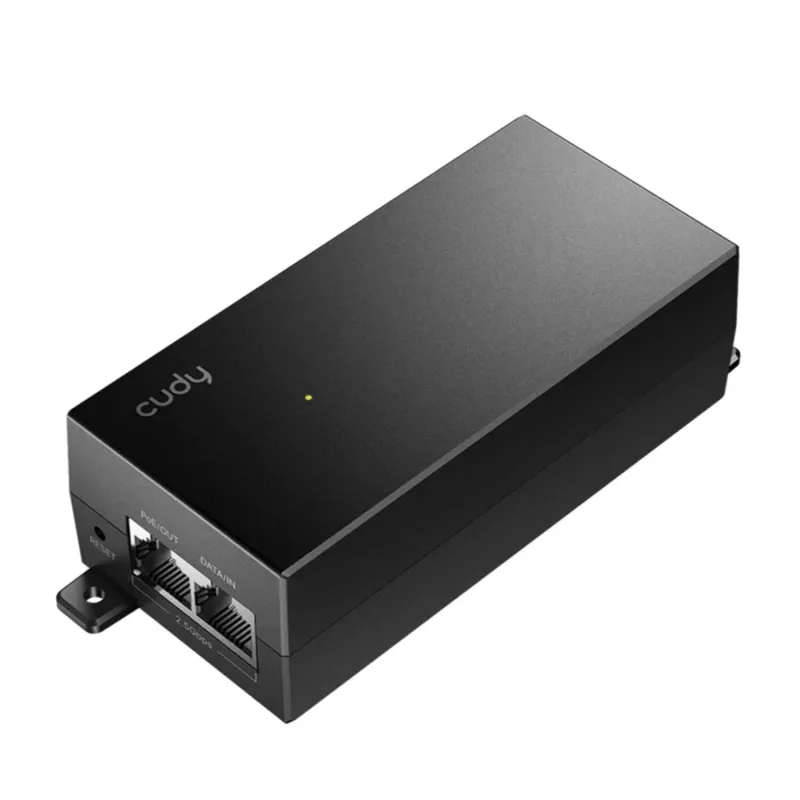

The POE200H is a single-port PoE+ injector that combines a 2.5GBASE-T data connection with DC power on the same cable. It accepts 100-240V AC input and converts it to 55V DC output, delivering up to 30W to the powered device. The internal power supply eliminates external bricks, while the compact desktop or wall-mount form factor fits neatly into any installation. LED indicators show power and PoE status at a glance, and built-in protection against overload, short-circuit, and over-voltage safeguards your equipment.

What stands out

• 2.5 Gbps data rate supports high-bandwidth devices beyond standard gigabit
• 30W PoE+ output compliant with IEEE 802.3af/at
• Internal power supply with AC 100-240V input for global use
• Jumbo frame support up to 10KB for efficient large packet transfers
• Desktop or wall-mount options with grounding terminal for safety
• CE, FCC, RoHS certified for reliable operation

Technical details

• PoE Standard: IEEE 802.3af/at (PoE+)
• Data Transfer Rate: 2.5 Gbps (2.5GBASE-T)
• Max PoE Power Output: 30W
• Input Voltage: AC 100-240V, 50/60Hz
• Output Voltage: DC 55V
• Data Ports: 1x 2.5G RJ45 (Data In)
• PoE Ports: 1x 2.5G RJ45 (Data & Power Out)
• Ethernet Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3bz
• LED Indicators: Power, PoE Status
• Power Supply: Internal
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10% to 90% non-condensing
• Protection Features: Overload, Short-circuit, Over-voltage
• Mounting Options: Desktop, Wall-mount
• Certifications: CE, FCC, RoHS
• Jumbo Frame Support: Up to 10KB
• Grounding Terminal: Yes

Our verdict

The Cudy POE200H is a straightforward, high-performance injector for anyone needing 2.5G PoE+ without upgrading their entire switch. Its internal PSU, robust protection, and compact design make it a dependable choice for modern network deployments.
