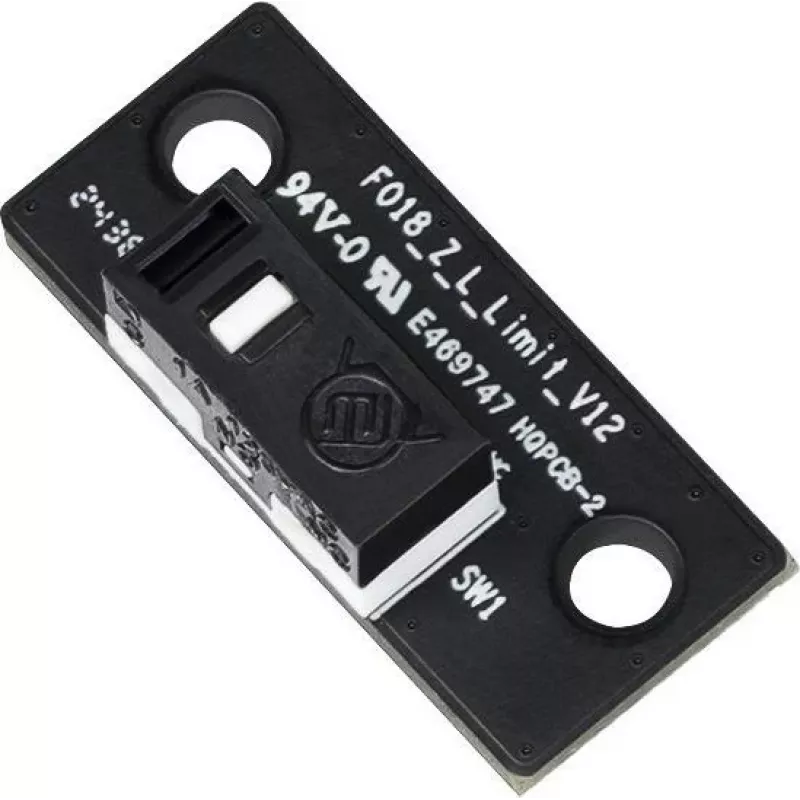

Creality Άξονας Z Διακόπτης τερματισμού - Αριστερή πλευρά 2101030260

The Creality Z-Axis Limit Switch - Left Side is a mechanical endstop module engineered for precise homing of the Z-axis on compatible 3D printers. Unlike generic switches, this unit is specifically designed for left-side mounting and features a robust lever arm actuator, ensuring reliable physical contact detection during the homing sequence.

Highlights

• Mechanical limit switch with lever arm actuator
• 3-pin JST XH 2.54mm connector for easy integration
• Normally open (NO) configuration, logic level 5V DC
• Durable construction: FR-4 PCB, metal lever, plastic housing
• Long mechanical lifespan: over 1,000,000 cycles

In daily use

When installed on the left side of the Z-axis, this switch provides a dependable physical endstop for homing. The lever arm triggers upon contact with the printer frame, sending a signal to the controller to stop the axis at the correct position. Its screw-on mounting with M3 holes ensures a secure fit, and the standard JST XH connector allows for straightforward connection to compatible Creality boards.

Full specifications

• Switch Type: Mechanical Limit Switch
• Axis Compatibility: Z-Axis
• Mounting Side: Left
• Detection Method: Physical Contact
• Actuator Type: Lever Arm
• Number of Pins: 3-Pin
• Connector Type: JST XH 2.54mm
• Operating Voltage: 5V DC (Logic Level)
• Switch Configuration: Normally Open (NO)
• Material: FR-4 PCB, Metal Lever, Plastic Housing
• Compatibility: Creality Ender-3, Ender-5, CR-10 Series and similar models
• Function: Z-axis Endstop for Homing
• Operating Temperature: -25°C to +85°C
• Mechanical Lifespan: >1,000,000 cycles
• Mounting: Screw-on (M3 holes)
• PCB Dimensions: Approx. 20 x 20 mm
• Color: Green PCB, Silver Lever
• Cable Included: No (Module only)

Final note

This limit switch is a direct replacement for the left-side Z-axis endstop on many Creality printers, ensuring accurate and repeatable homing.
