COUGAR ανεμιστήρας κουτιού MHP 120, λευκό

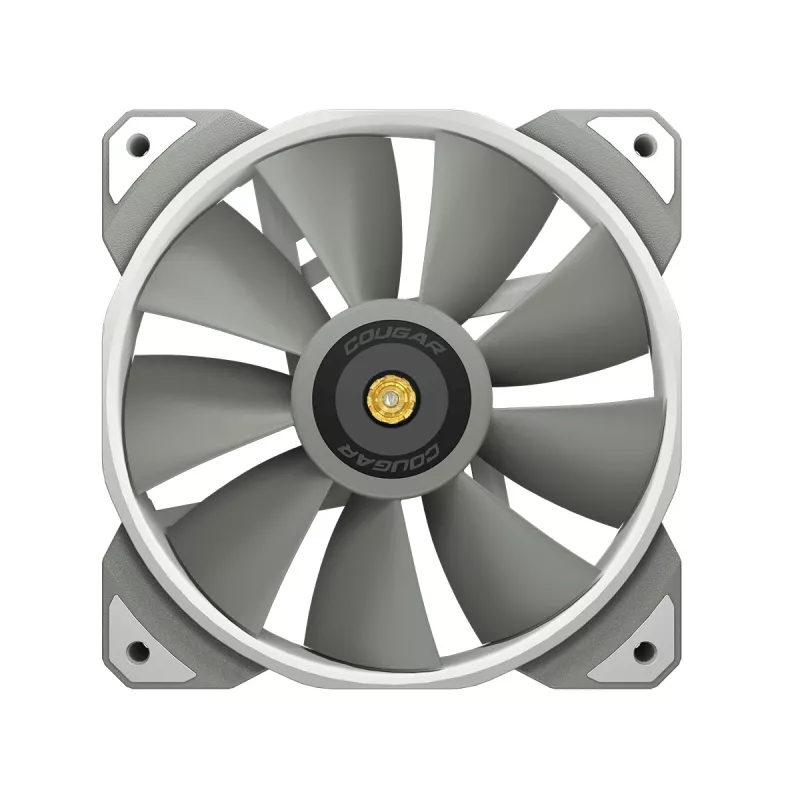

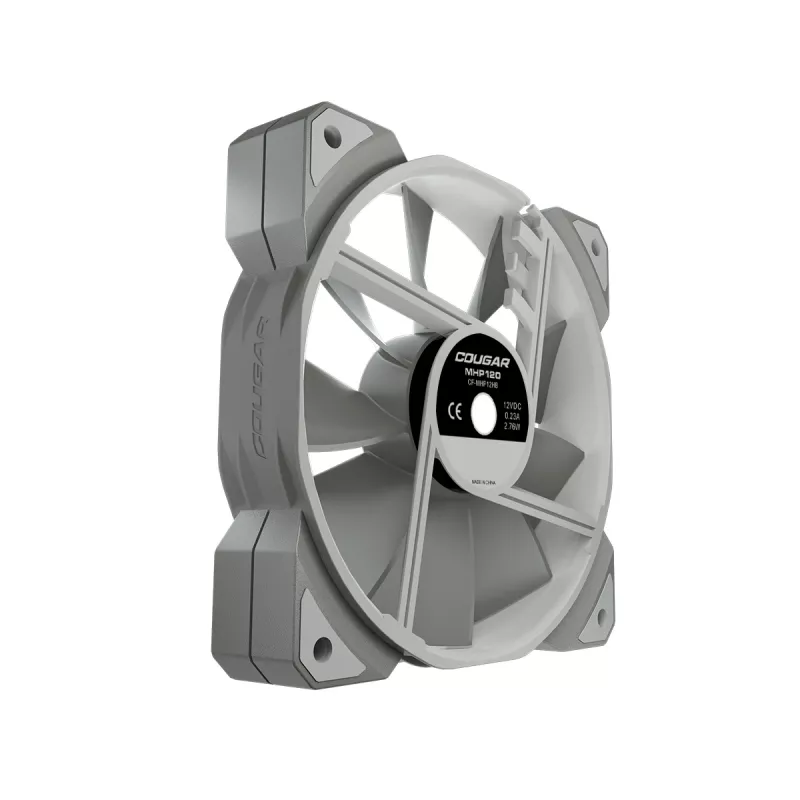

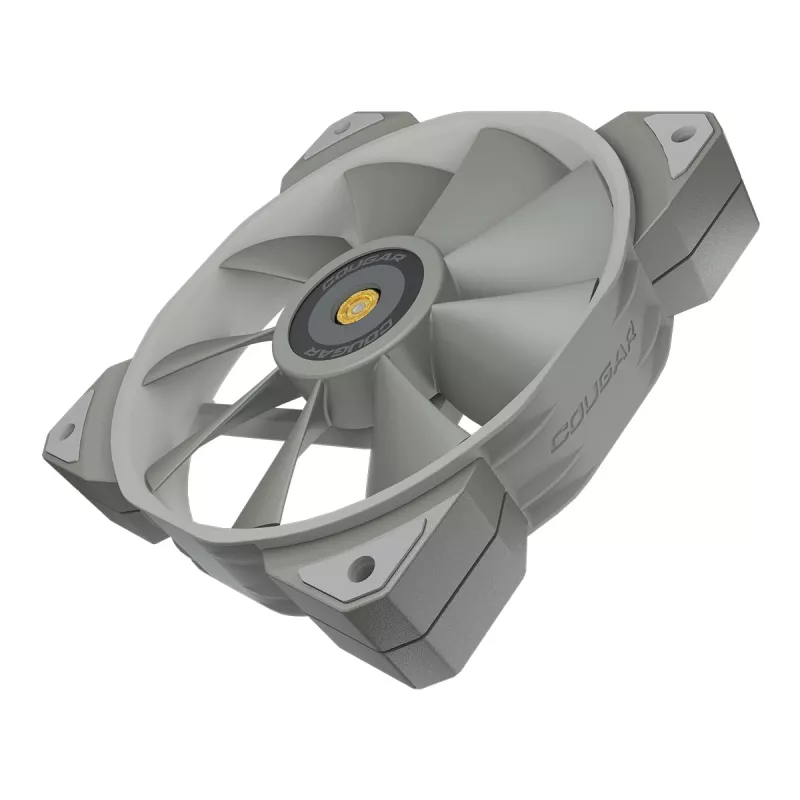

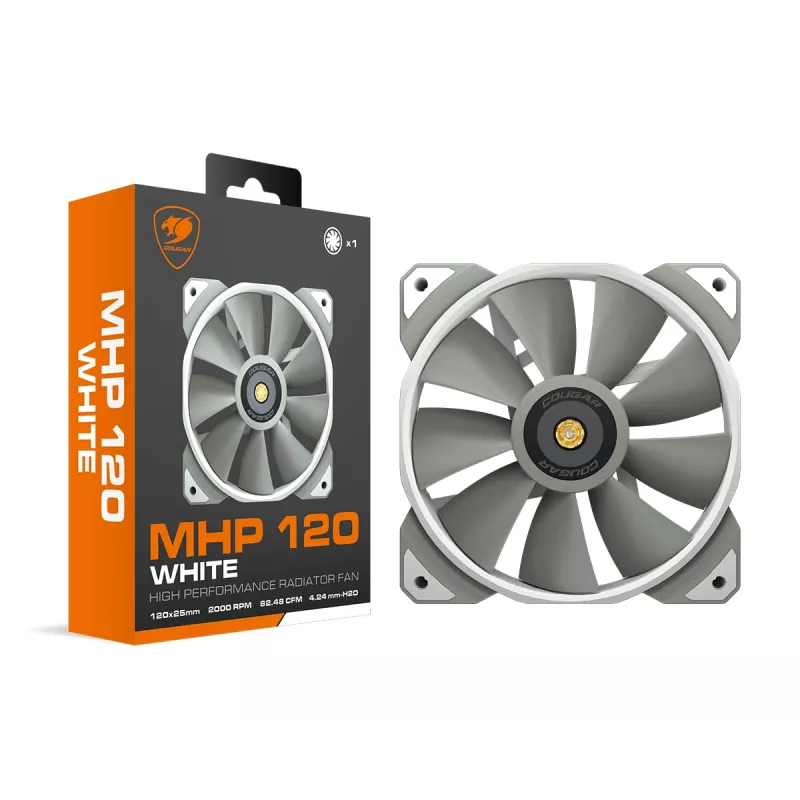

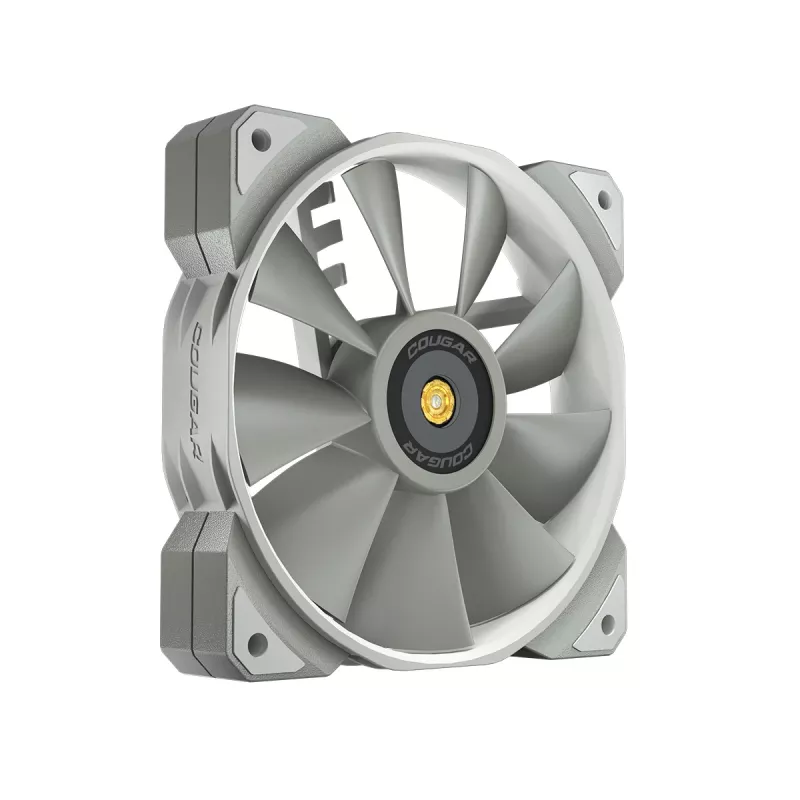

Cougar MHP 120 is a 120 mm high-performance radiator fan designed for use inside PC chassis and on radiators or heatsinks. The fan features a metal-reinforced motor hub and bearing shell, hydro-dynamic bearing (HDB), PWM speed control and rubber anti-vibration dampers. With a white finish and compact 120 mm form factor, MHP 120 fits most air and water coolers.

Advantages

The MHP 120 delivers up to 2000 RPM, producing 82.48 CFM (143.53 m3/h) airflow and 4.24 mmH2O static pressure for effective heat dissipation. The metal-reinforced motor hub and bearing shell improve rotational stability and durability while the HDB reduces noise and extends service life. PWM control enables precise speed adjustment and the integrated rubber dampers minimise vibration and mounting noise.

Suitable for

• Radiators for liquid cooling
• CPU heatsinks and air coolers
• Case intake or exhaust fan positions
• Upgrading existing cooling fans for improved static pressure

Key specifications

• Type: Air cooler fan, 120 mm
• Maximum speed: 2000 RPM
• Airflow: 82.48 CFM / 143.53 m3/h
• Static pressure: 4.24 mmH2O
• Bearing: HDB (Hydro Dynamic Bearing)
• Features: Metal-reinforced motor hub and bearing shell, PWM control, anti-vibration rubber dampers
• Colour: White
• Weight: 0.186 kg
• MPN: CGR-CF-MHP12HB-W
• EAN: 4710483773662

How to use

Install the MHP 120 in the desired fan position following your chassis or cooler manufacturer instructions. Connect the fan to a PWM-capable header on the motherboard or to a compatible fan controller to allow automatic speed regulation. Ensure correct airflow orientation for intake or exhaust depending on your cooling layout. Tighten mounting screws or use appropriate brackets while making sure rubber dampers remain seated to reduce vibration transfer.

Recommendations

For radiator or heatsink mounting choose configurations that prioritise static pressure (push or pull) and set PWM curves to balance noise and cooling performance; clean the fan and radiator regularly to maintain airflow and efficiency.
