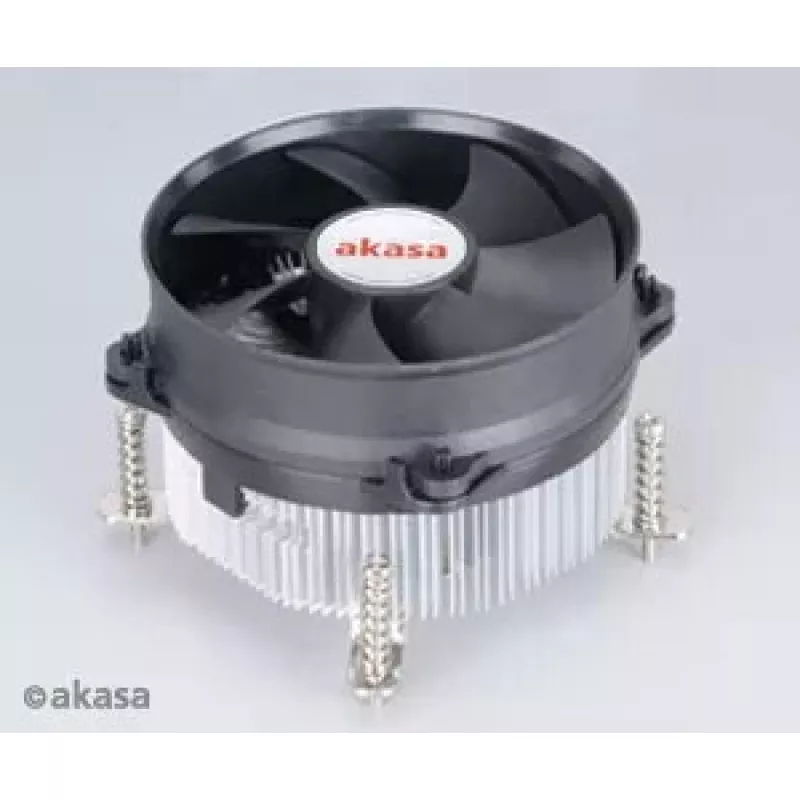

Cooler Akasa AK-CCE-7105EP σύστημα ψύξης επεξεργαστή 9,2 cm μαύρο ασημί

The Akasa AK-CCE-7105EP processor cooling system combines a compact engineered aluminium omnidirectional heatsink with a 9.2 cm PWM-controlled Enter bearing fan to provide efficient CPU and motherboard-zone cooling. It ships with pre-applied thermal interface material and a dual mounting kit including extra-safe screws and backplates for Intel LGA775 and LGA115x sockets. The cooler is designed for Intel CPUs up to 95 W and performs best with adequate case airflow.

Advantages

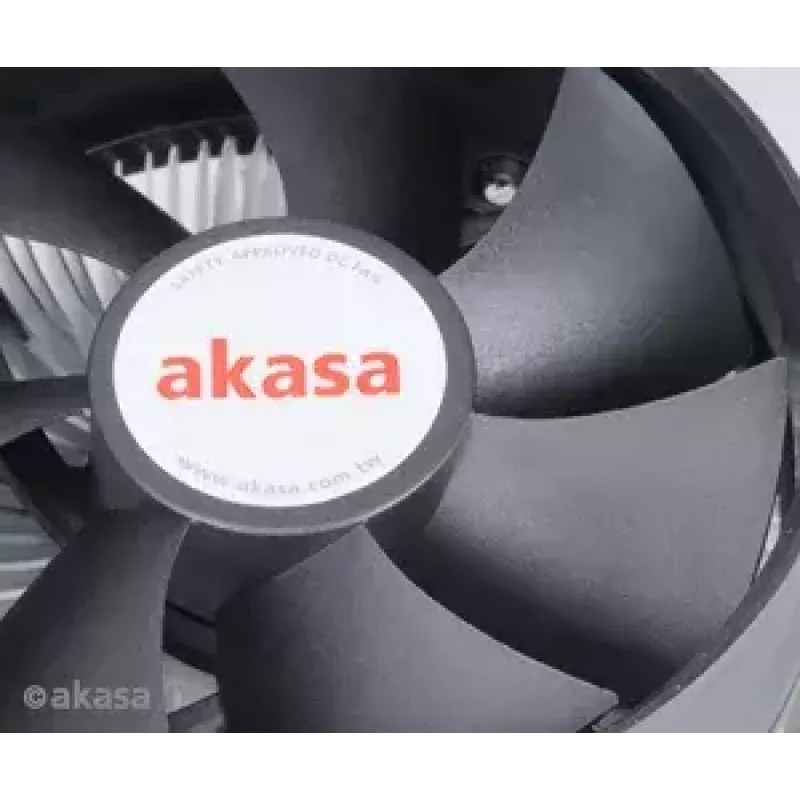

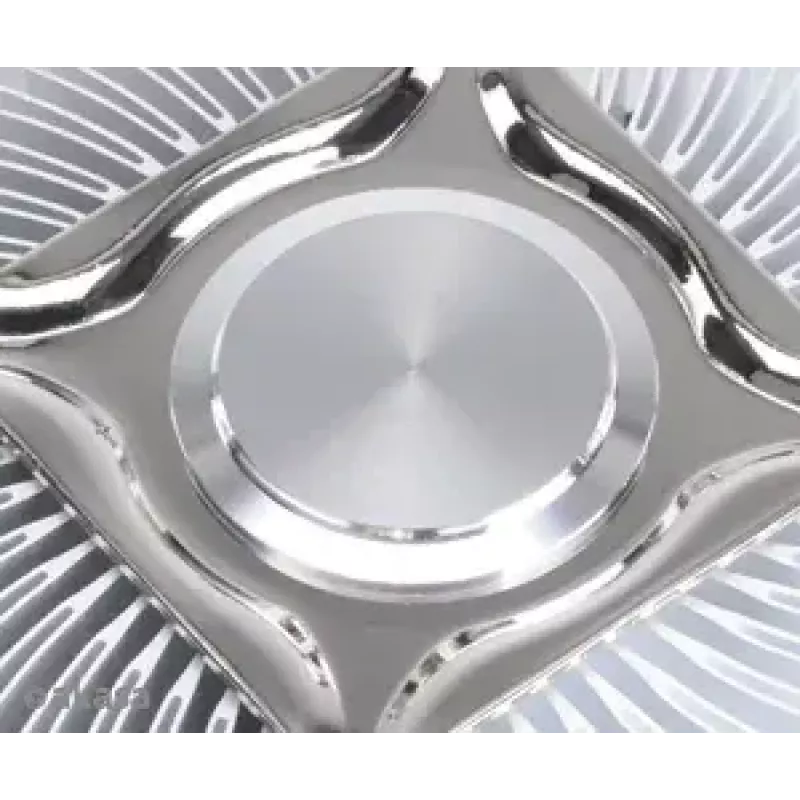

The high-engineered aluminium heatsink with bi-ped fins increases heat dissipation in a small footprint while the omnidirectional design helps cool surrounding motherboard components. The PWM Enter bearing fan automatically adjusts speed between low and high RPM according to CPU load, reducing noise during normal operation. Dual mounting with extra-safe screws and two backplates ensures secure installation for LGA775 and LGA115x systems. A pre-applied thermal interface material simplifies installation.

Suitable for

• Compact desktop builds where space is limited
• Systems with Intel LGA775 or LGA115x sockets
• General-purpose and mainstream computing up to 95 W CPUs
• Setups that benefit from PWM fan control for quieter operation

Key specifications

• Model: Akasa AK-CCE-7105EP
• Fan diameter: 92 mm (9.2 cm)
• Fan speed range: 600–3000 RPM (PWM)
• Maximum air pressure: 4.3 mmH2O
• Supported sockets: Intel LGA775, LGA115x
• Dimensions: 95 × 95 × 63 mm
• Operating voltage: 12 V
• Weight: 0.344 kg
• Colour: Black and Silver
• Pre-applied thermal interface material

How to use

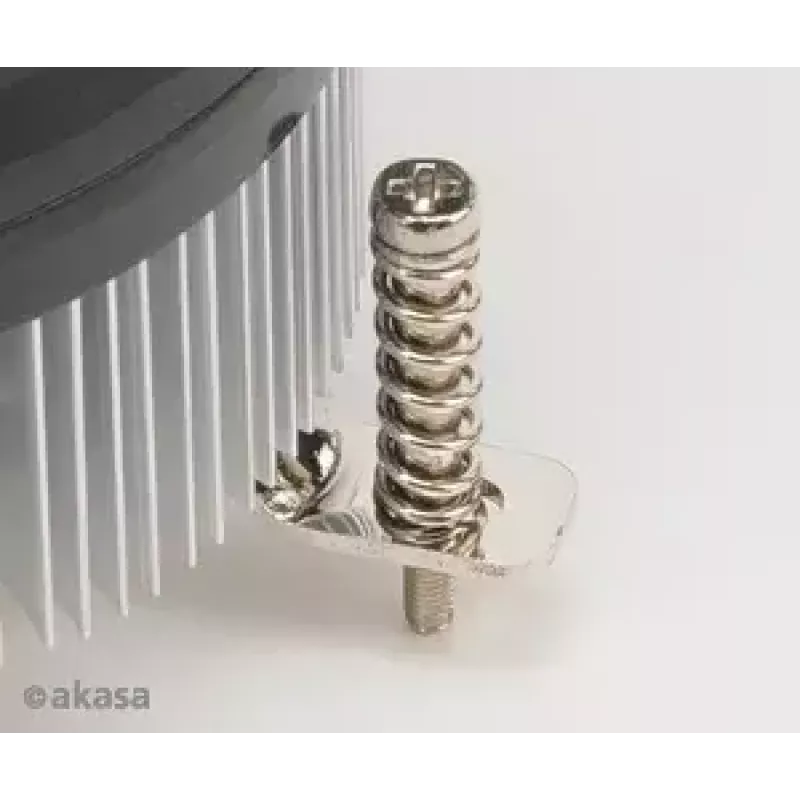

Mount the cooler using the supplied extra-safe screws and the appropriate backplate for your motherboard socket (LGA775 or LGA115x). Ensure the pre-applied thermal interface material makes full contact with the CPU heatspreader; remove any protective cover from the TIM before installation. Connect the 3- or 4-pin PWM fan header to the motherboard CPU_FAN header so the fan speed will be regulated automatically by the motherboard according to CPU load. Verify that case airflow is adequate to achieve optimal cooling performance.

Recommendations

Install the cooler on a clean CPU surface and ensure the case has front-to-back or bottom-to-top airflow for best results. Regularly check that the fan spins freely and clean dust from the heatsink fins to maintain cooling efficiency. For CPUs above 95 W or heavy overclocking, consider a higher-capacity cooler or improved case airflow.
